With Manual Transmission/Transaxle
With Manual Transmission/Transaxle

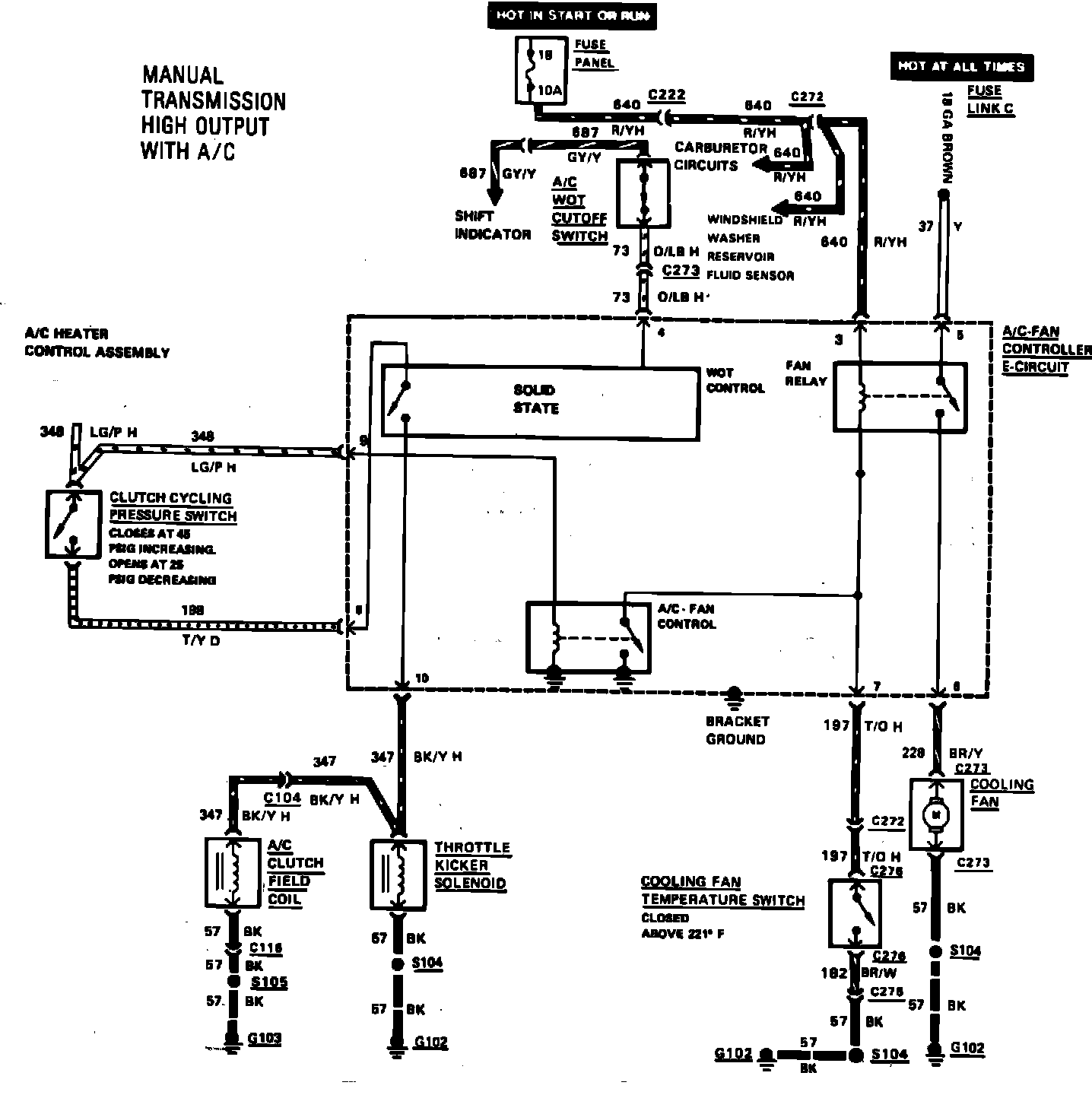

Fig. 6 Air Conditioning & Heater Cooling Fan Wiring Circuit. 1985 W/High Output Manual Transaxle:
