Oil Pump, Engine

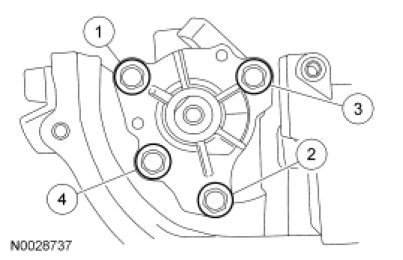

Position the oil pump assembly and tighten the 4 bolts in the sequence shown, in 2 stages.
Stage 1: Tighten to 10 Nm (89 lb-in).
Stage 2: Tighten to 20 Nm (177 lb-in).
