Exploded View Images
Exploded View Images
Mechatronic Assembly

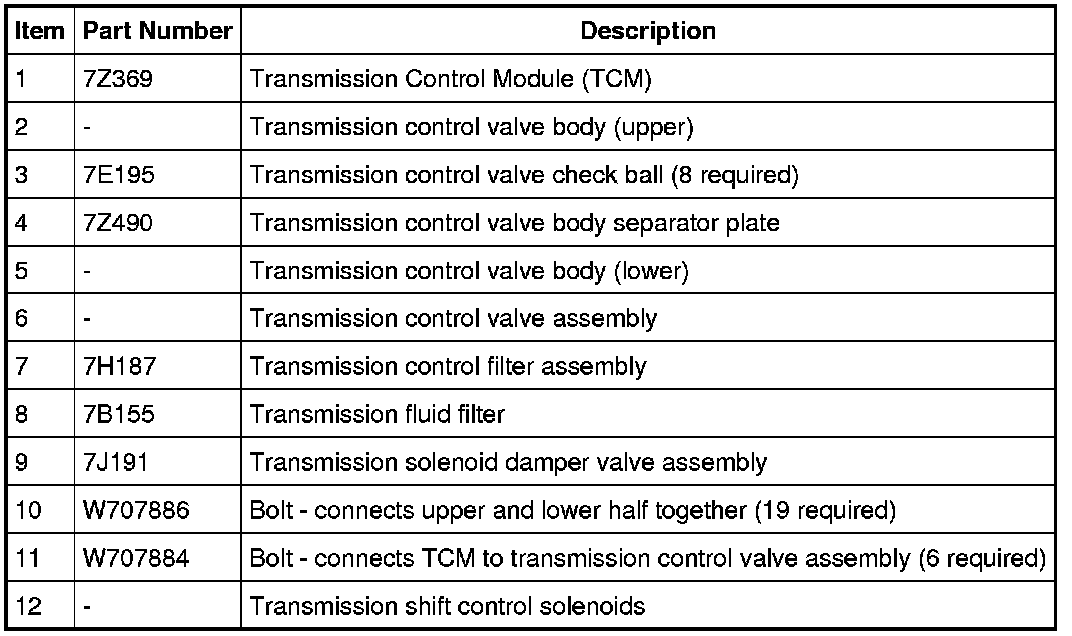

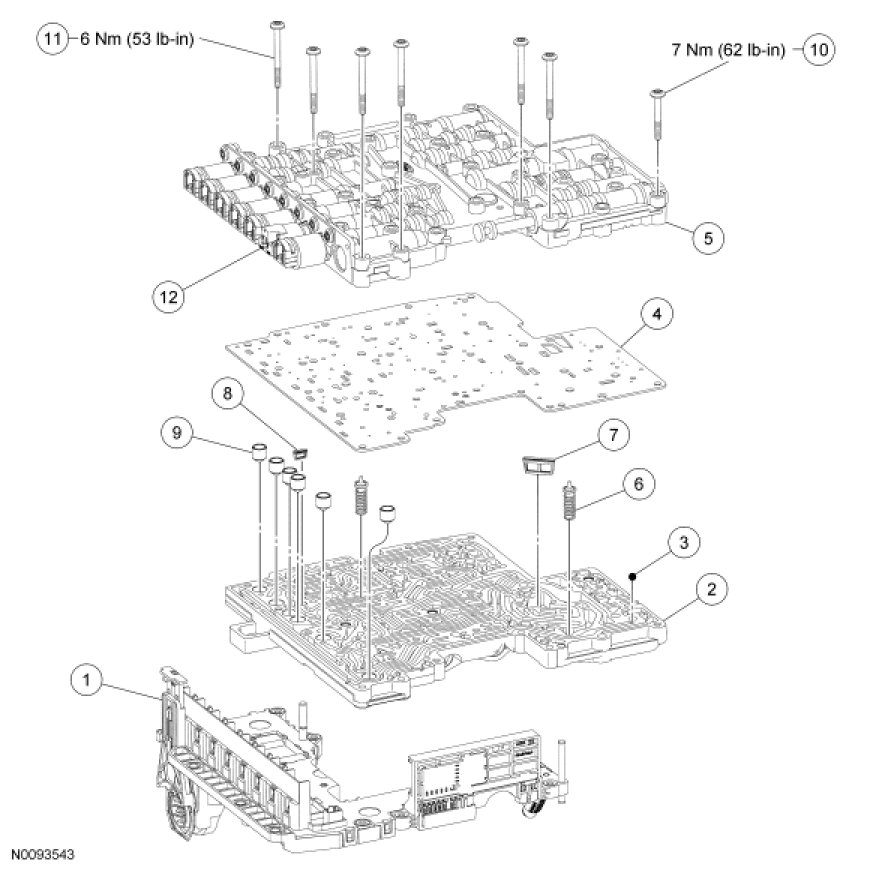

Mechatronic

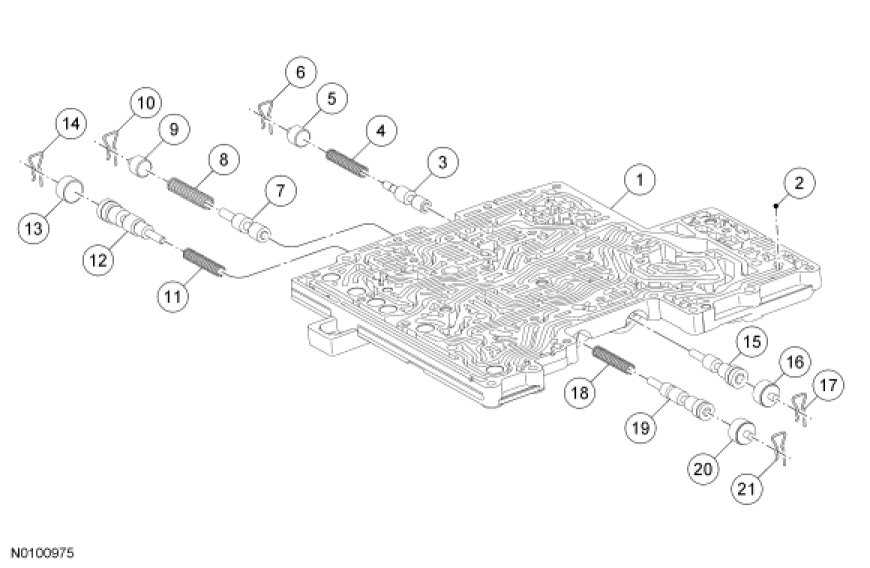

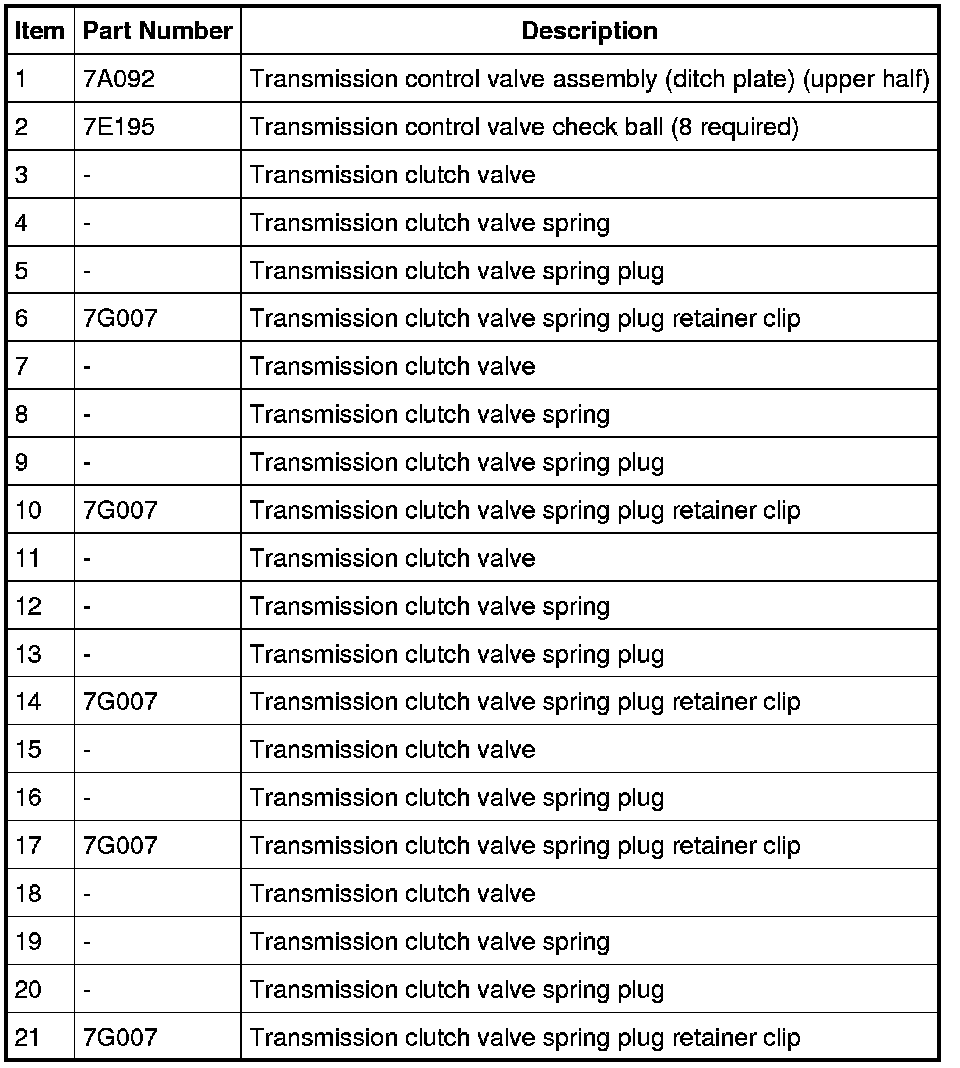

Mechatronic Upper Half

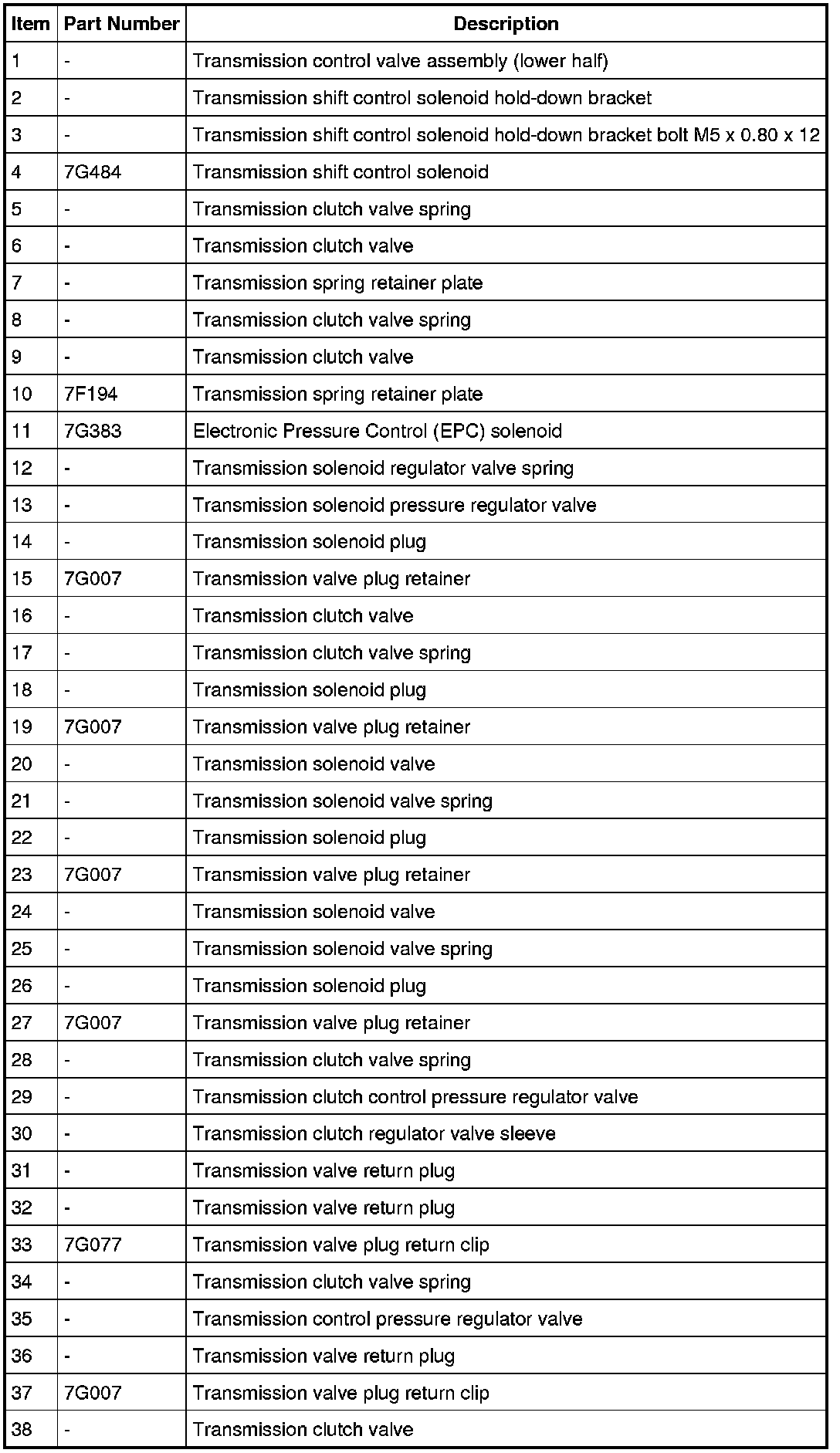

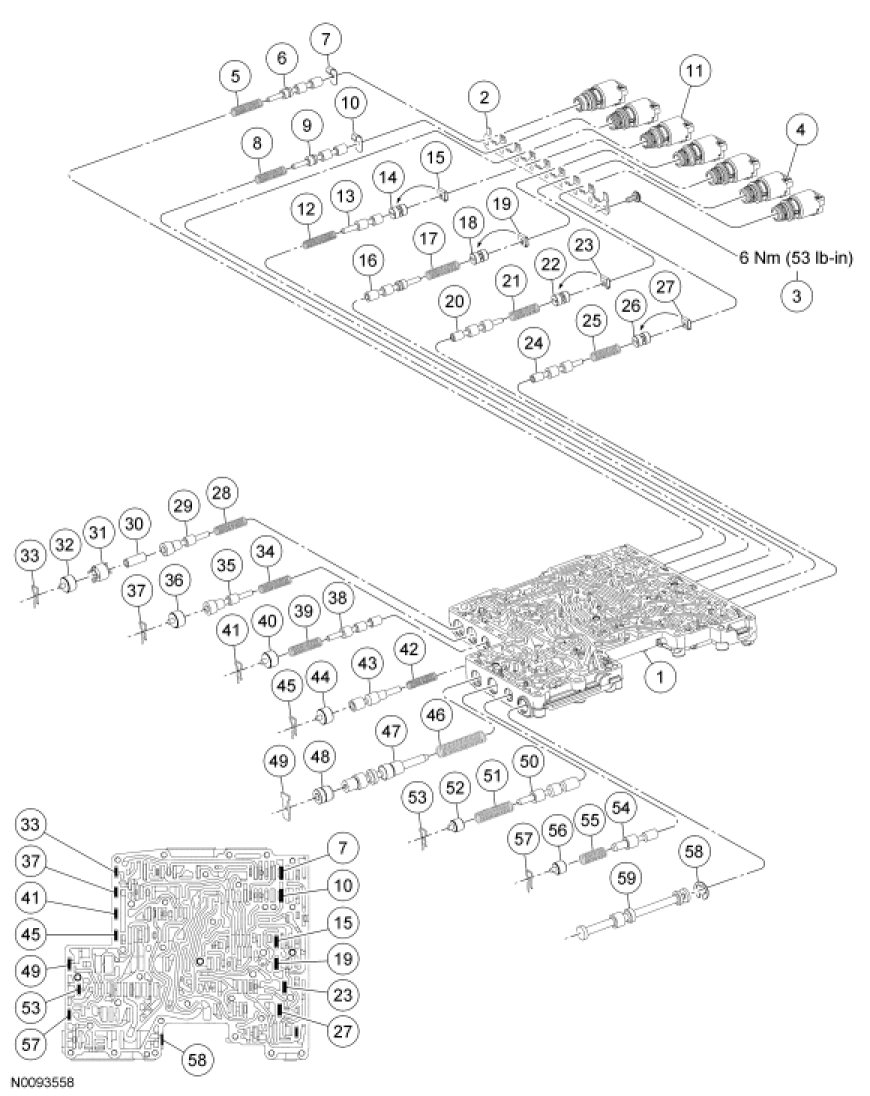

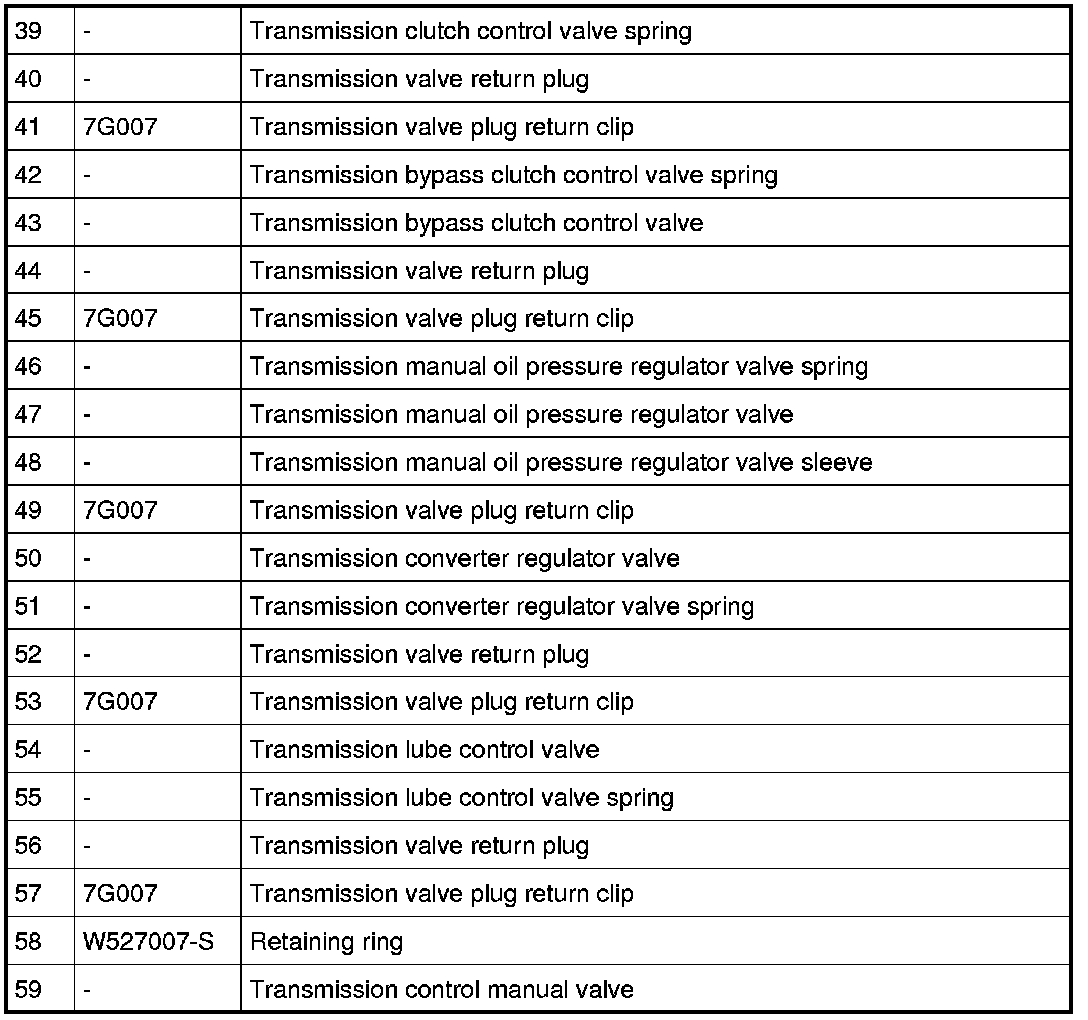

Mechatronic Lower Half

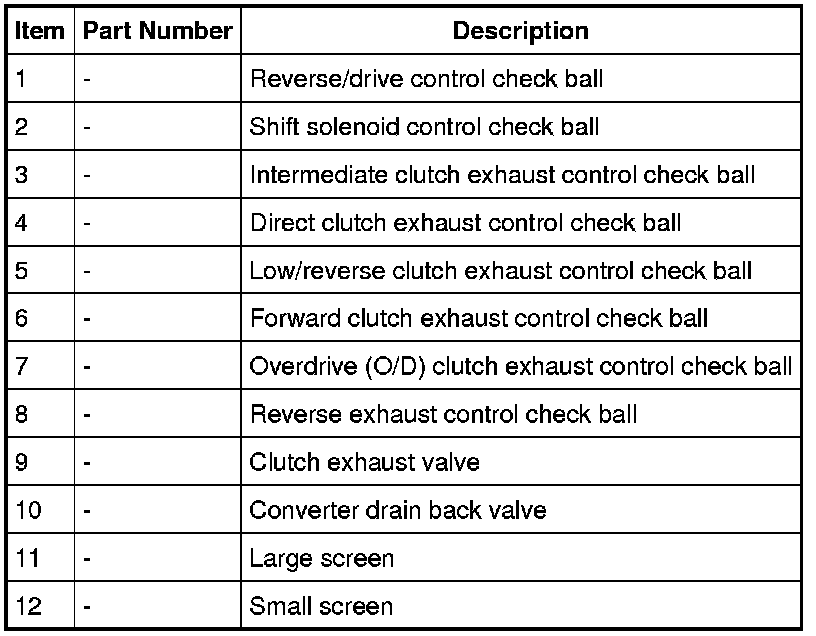

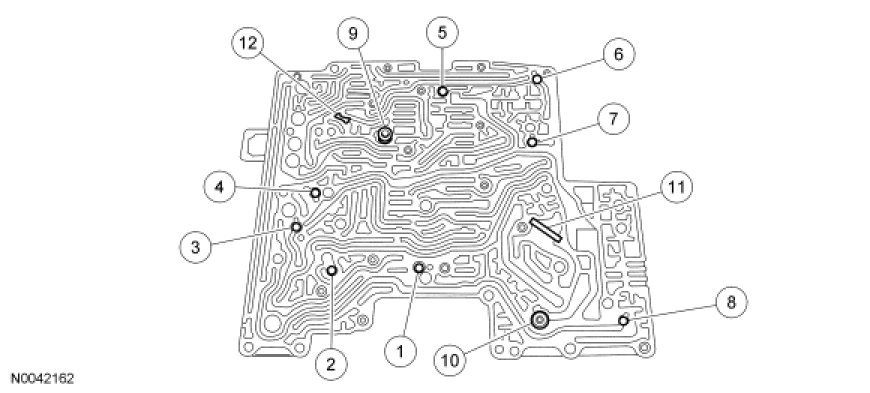

Check Ball Location
