Ford Truck
>>
2009
>>
Explorer 2WD V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>
5R55S
5R55S
Transmission

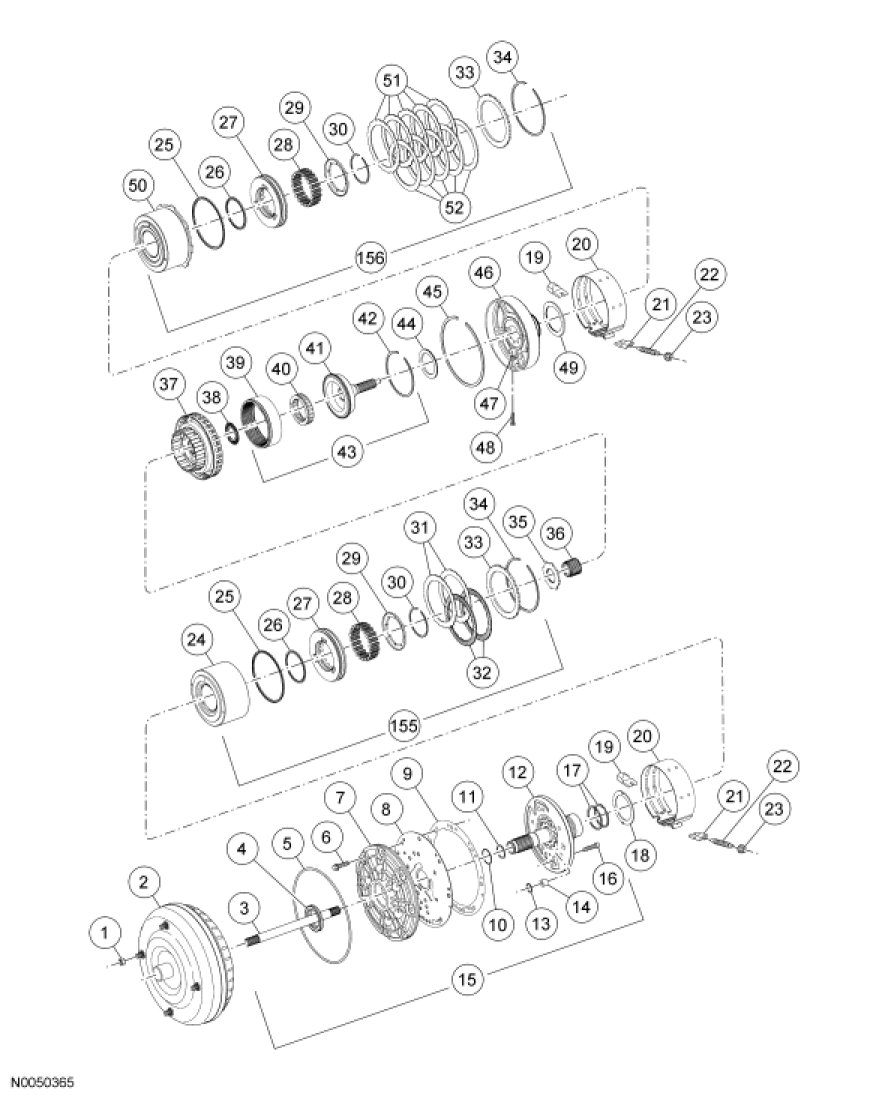

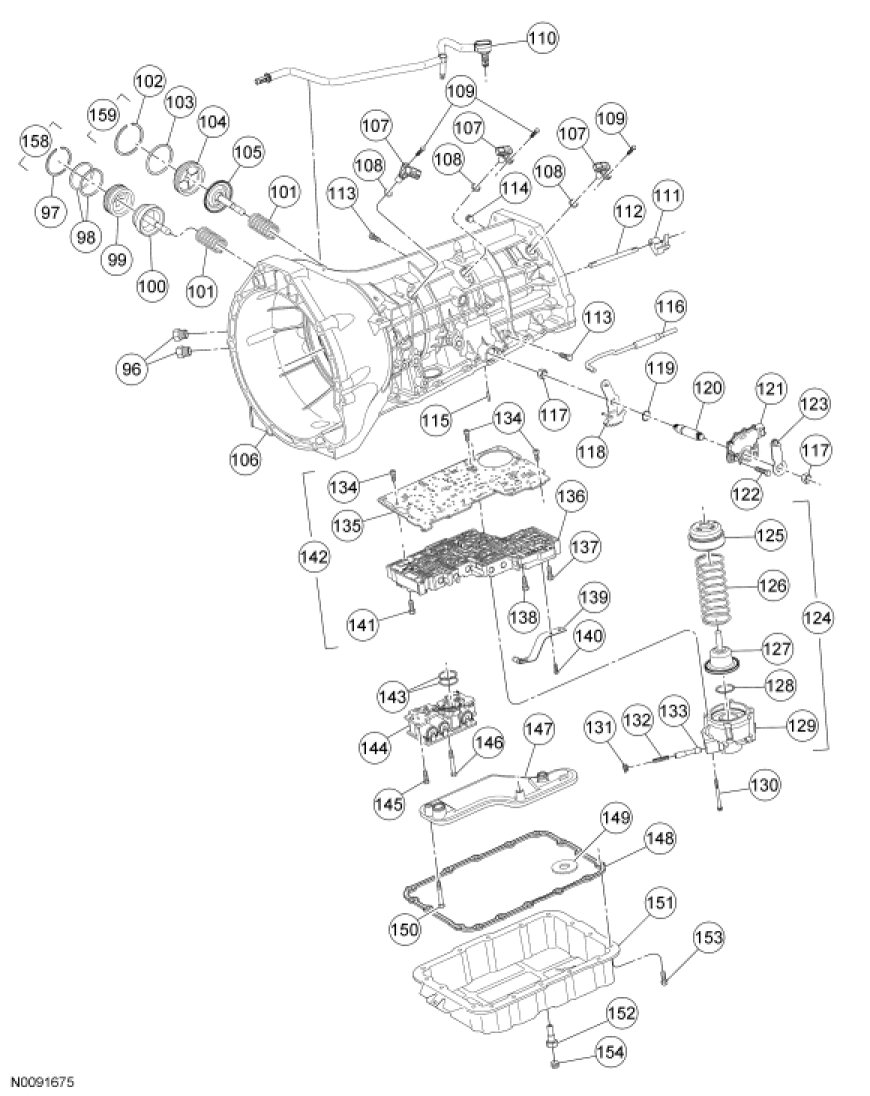

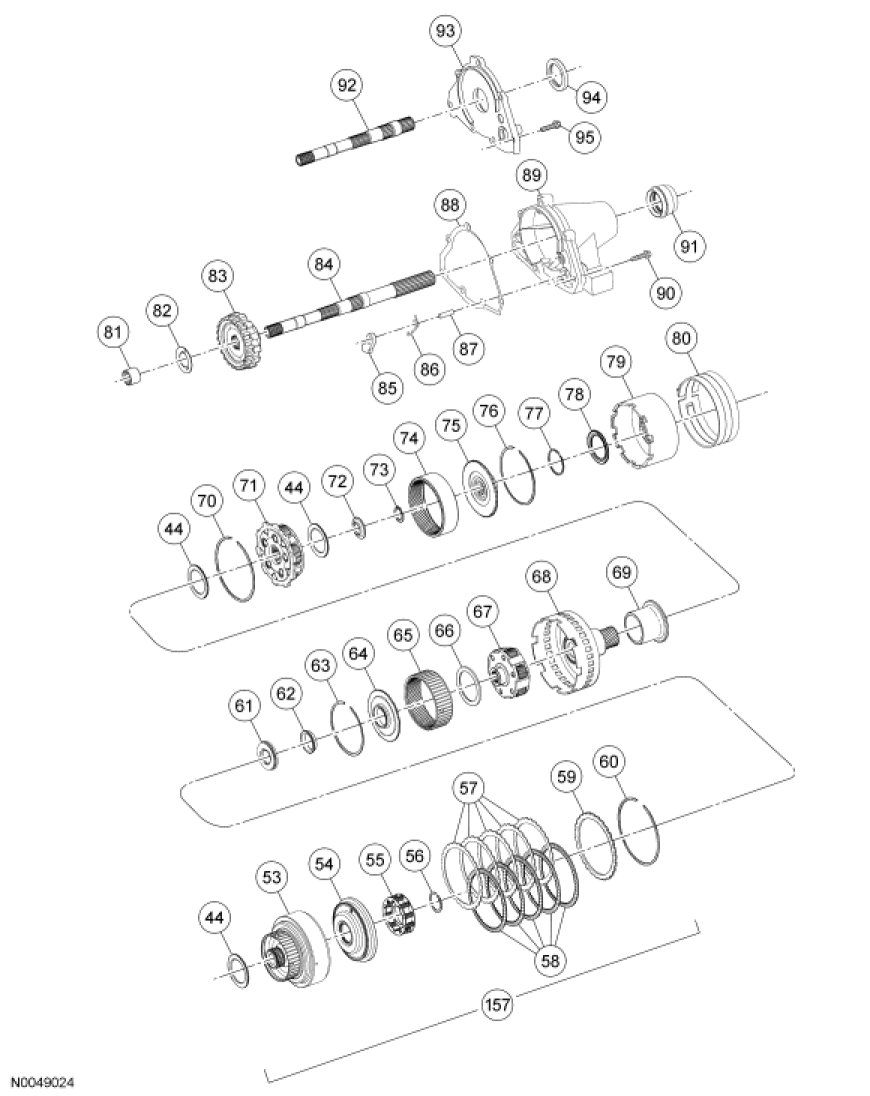

Disassembled Views
