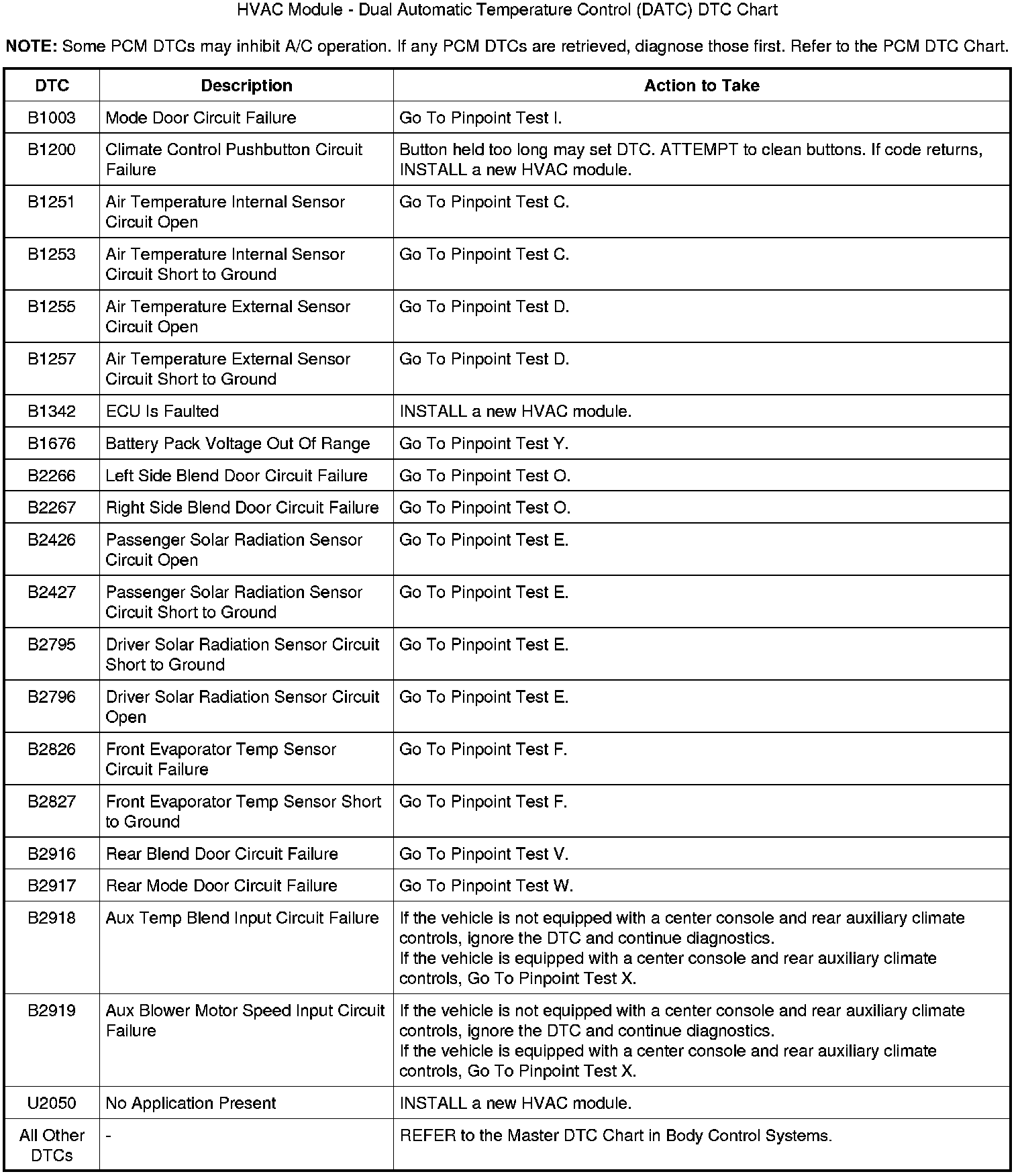

HVAC Module - Dual Automatic Temperature Control (DATC) DTC Chart
HVAC Module - Dual Automatic Temperature Control (DATC) DTC Chart
Climate Control System
DTC Charts
B1003-B2919 / U2050:
