Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Ford Truck
>>
2008
>>
Ranger 2WD L4-2.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Clutch, M/T
>>
System Diagram
System Diagram

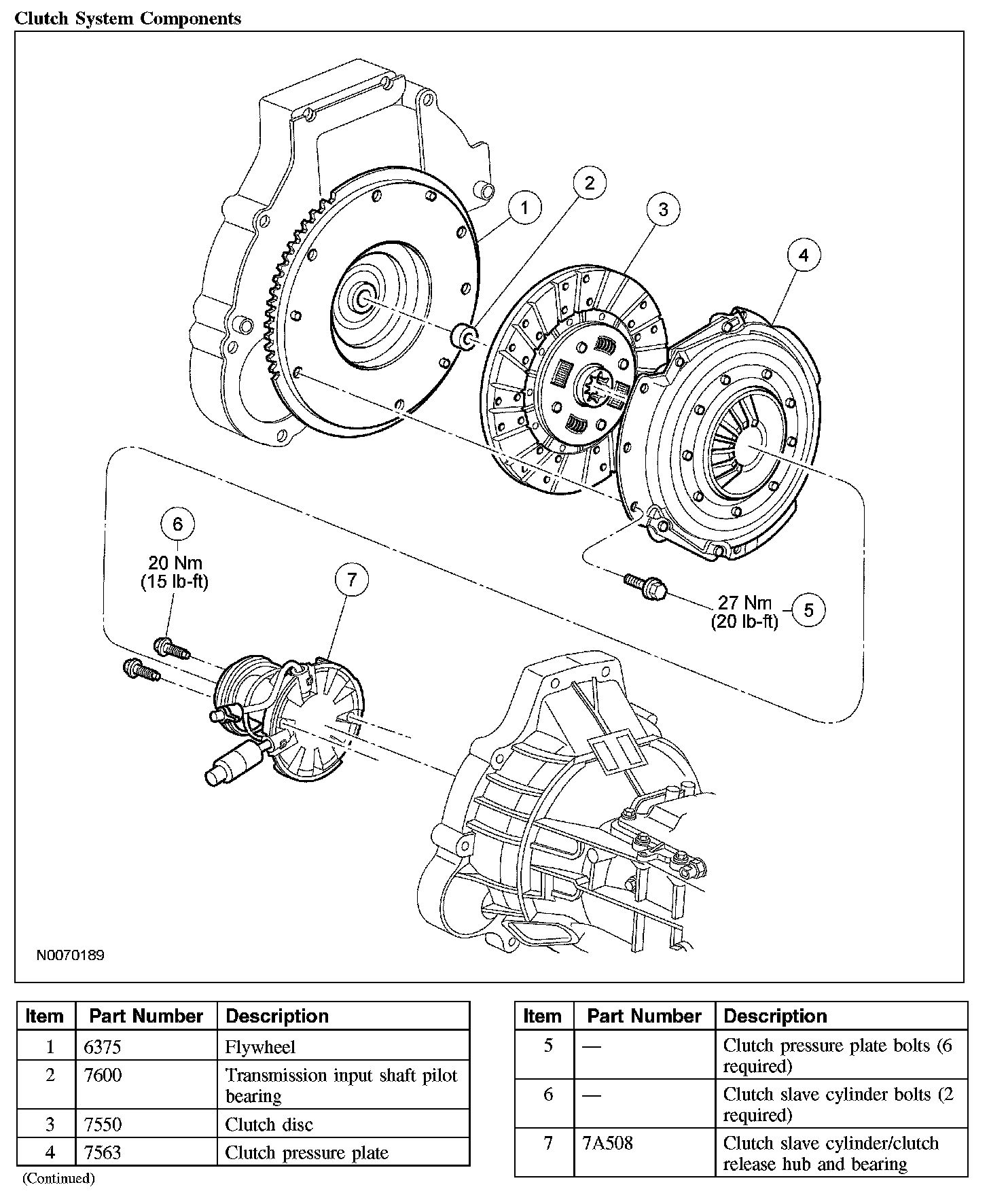

Clutch System Components
Clutch System Components:
