Home
>>
Ford Truck
>>
2008
>>
Ranger 2WD L4-2.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Control Module
Air Bag Control Module

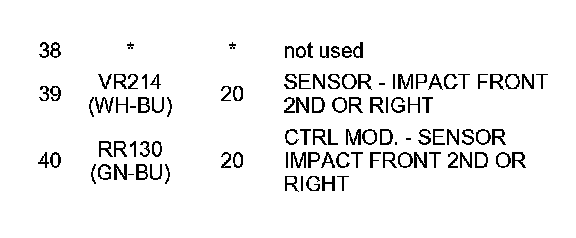

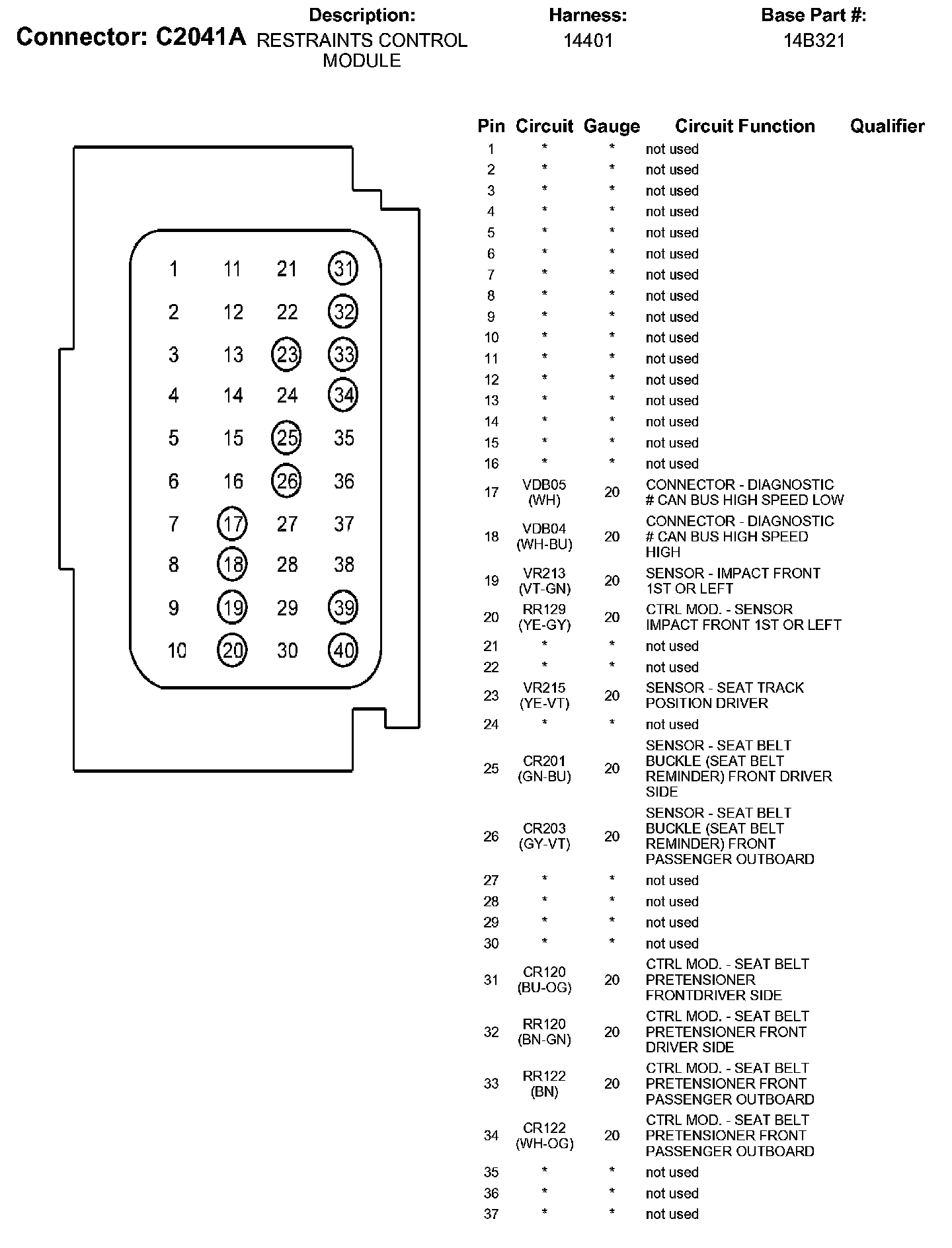

C2041A (Part 1):
C2041A (Part 2):

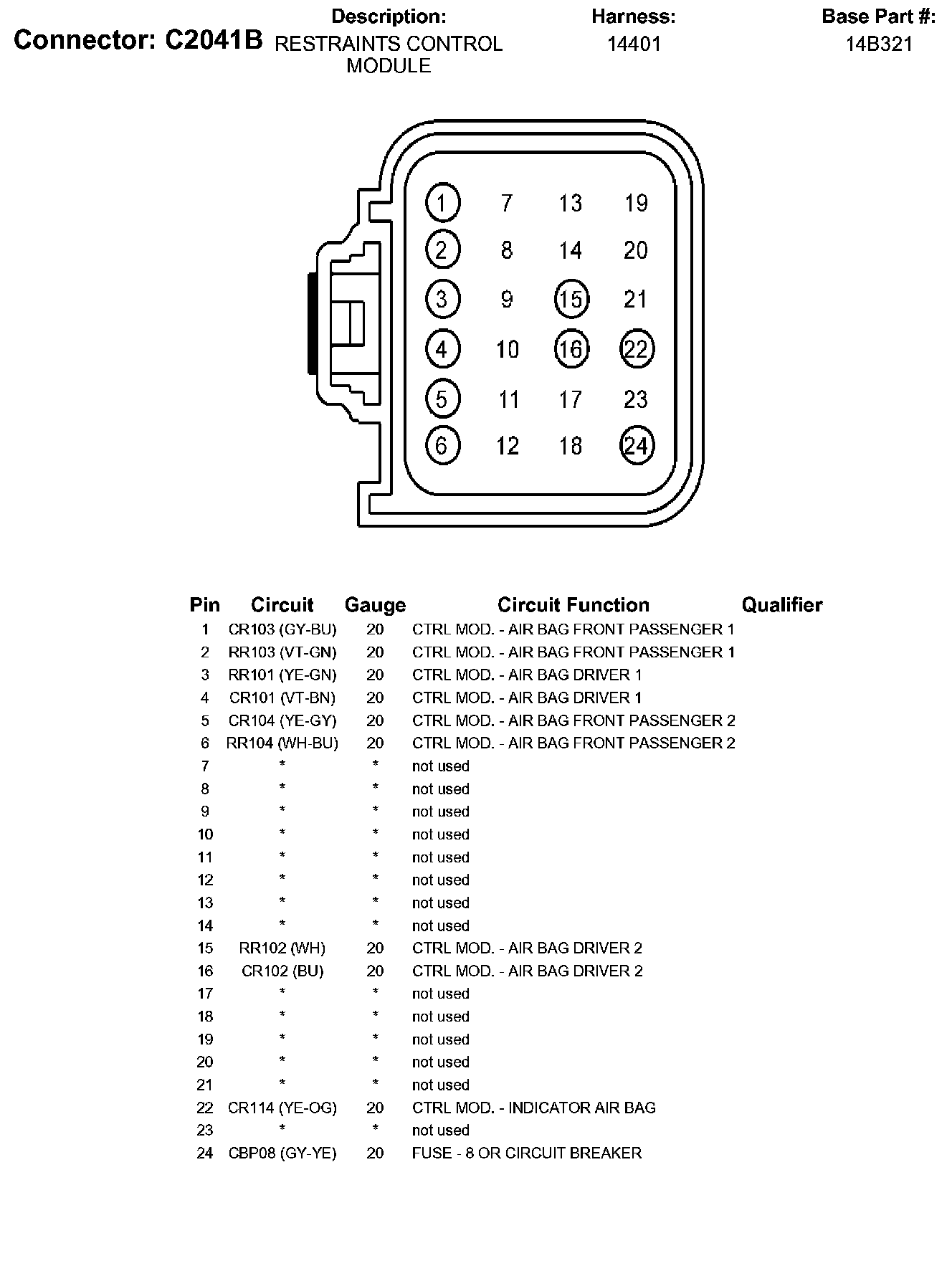

C2041B:
