Home >> Ford Truck >> 2007 >> Explorer 2WD V8-4.6L VIN 8 >> Repair and Diagnosis >> Heating and Air Conditioning >> System Relay >> Locations

System Relay: Locations

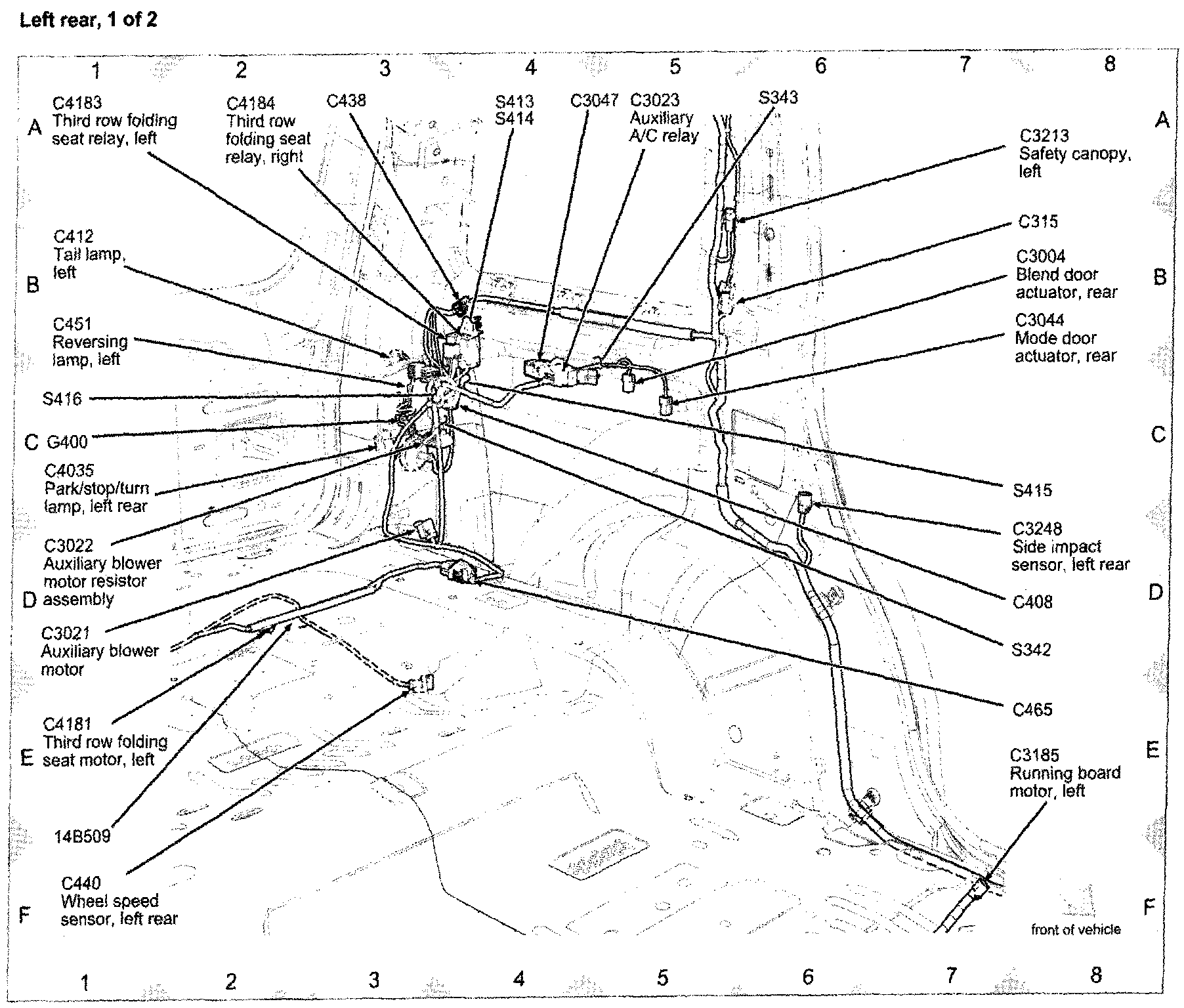

View 151-15 (Left Rear, (1 0f 2)):
