Ford Truck
>>
2007
>>
Explorer 2WD V6-4.0L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
>>
Function Selector Switch Assembly, Rear
Function Selector Switch Assembly, Rear

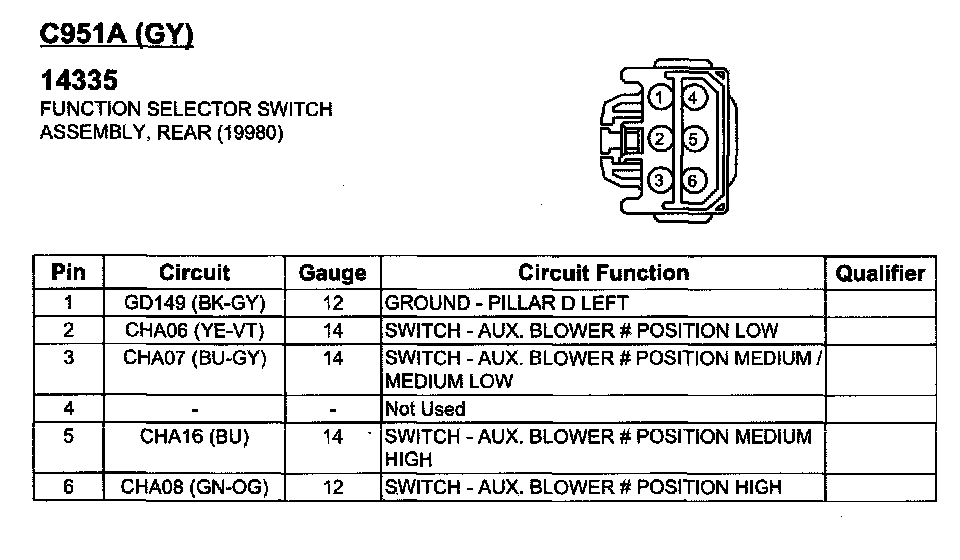

C951A:

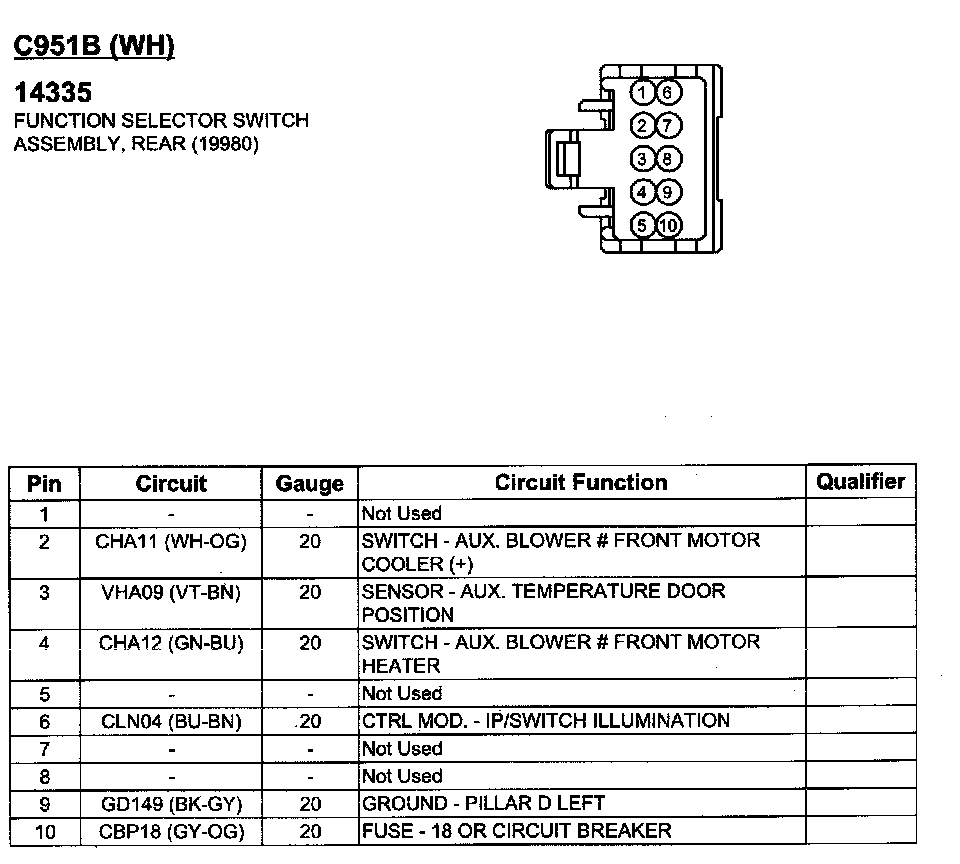

C951B:
