Ford Truck
>>
2007
>>
Escape 4WD L4-2.3L VIN Z
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Differential Assembly

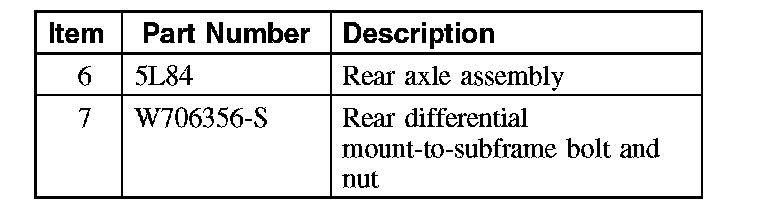

Differential Assembly

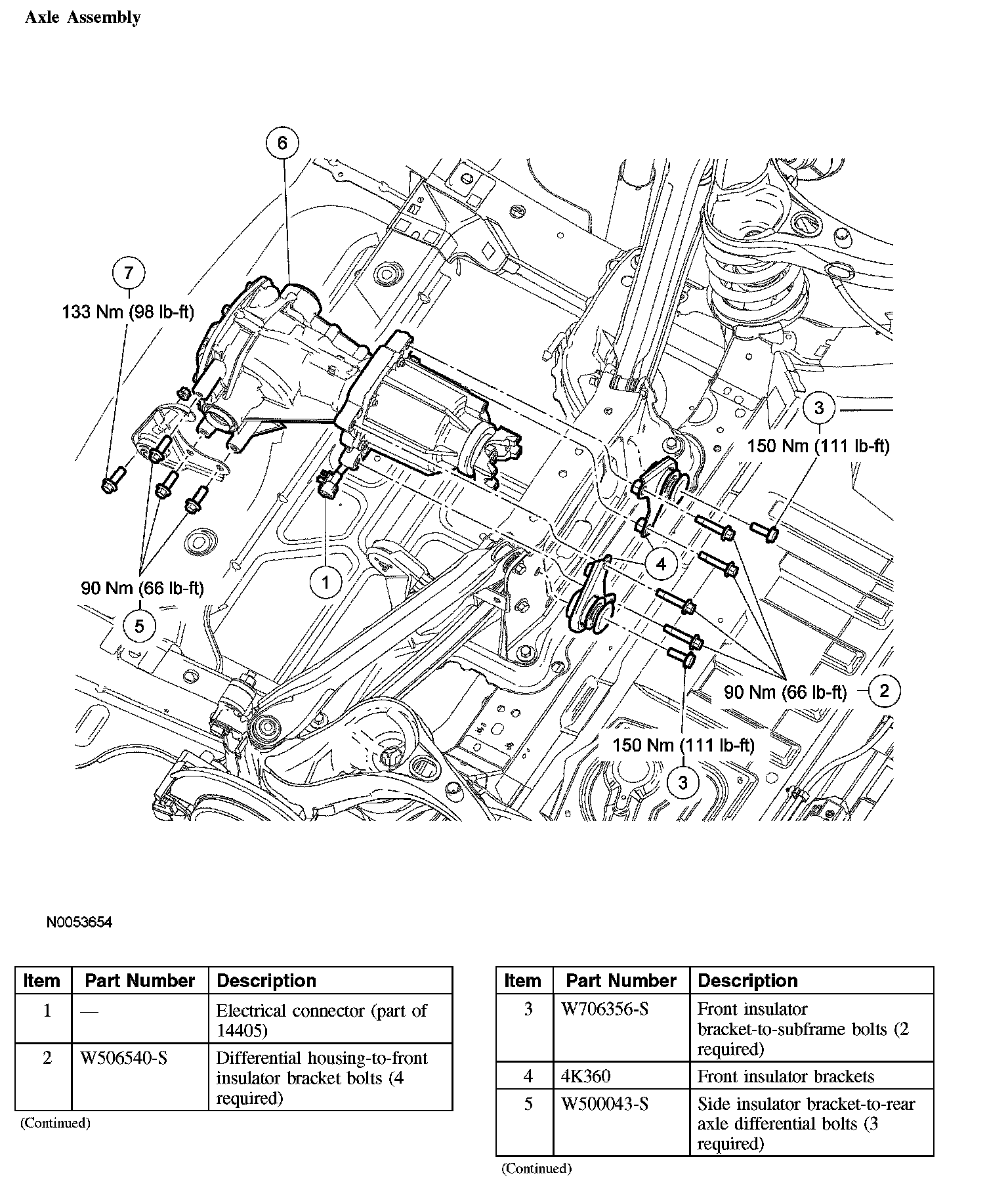

Axle Assembly (Part 1):
Axle Assembly (Part 2):
