Home >> Ford Truck >> 2007 >> Escape 2WD L4-2.3L VIN H Hybrid >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Accelerator Pedal Position Sensor >> Locations

Accelerator Pedal Position Sensor: Locations

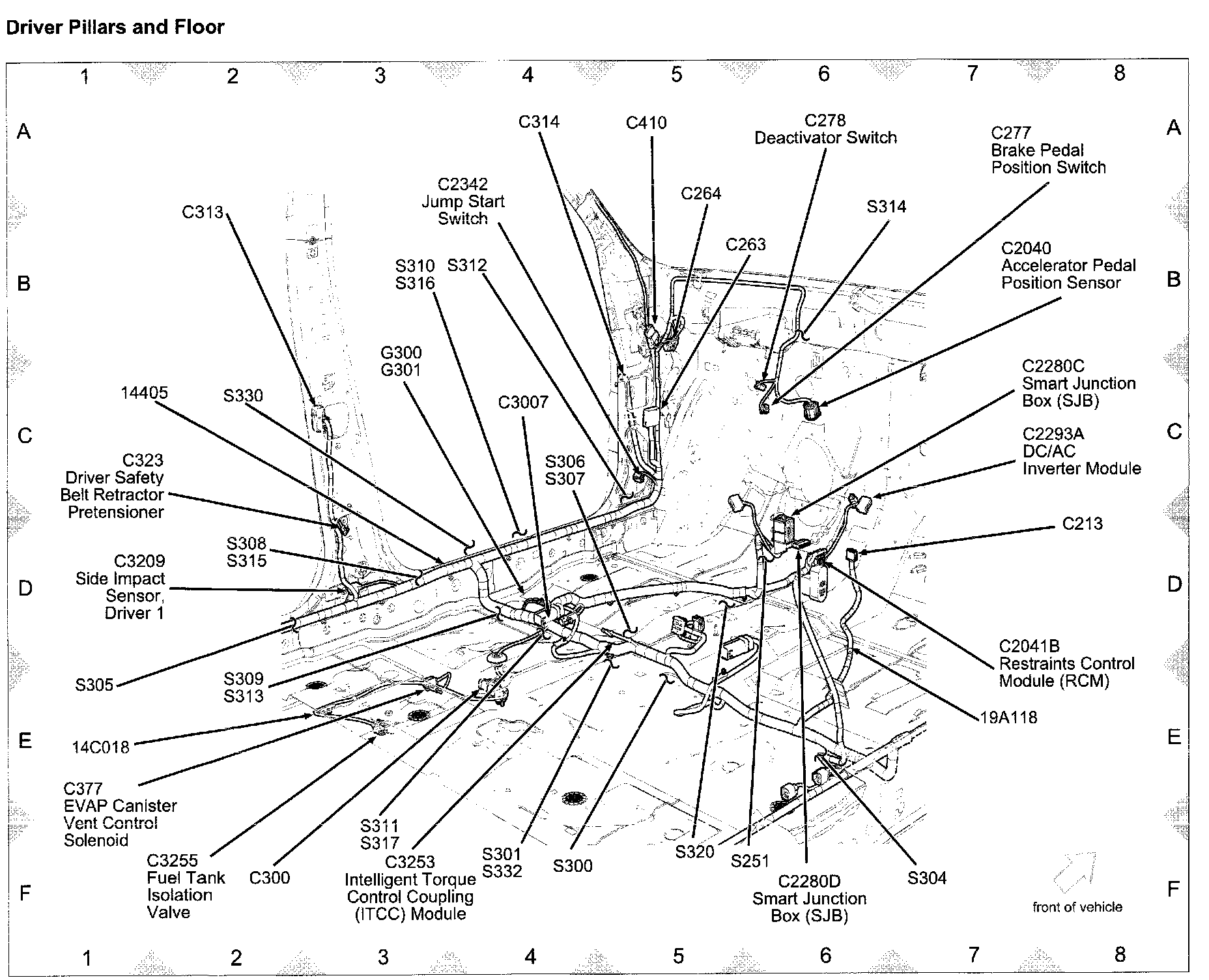

View 151-9 (Driver Pillars And Floor):
