Ford Truck
>>
2006
>>
Freestar V6-4.2L VIN 2
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Disc Brake System
>>
Front
Front

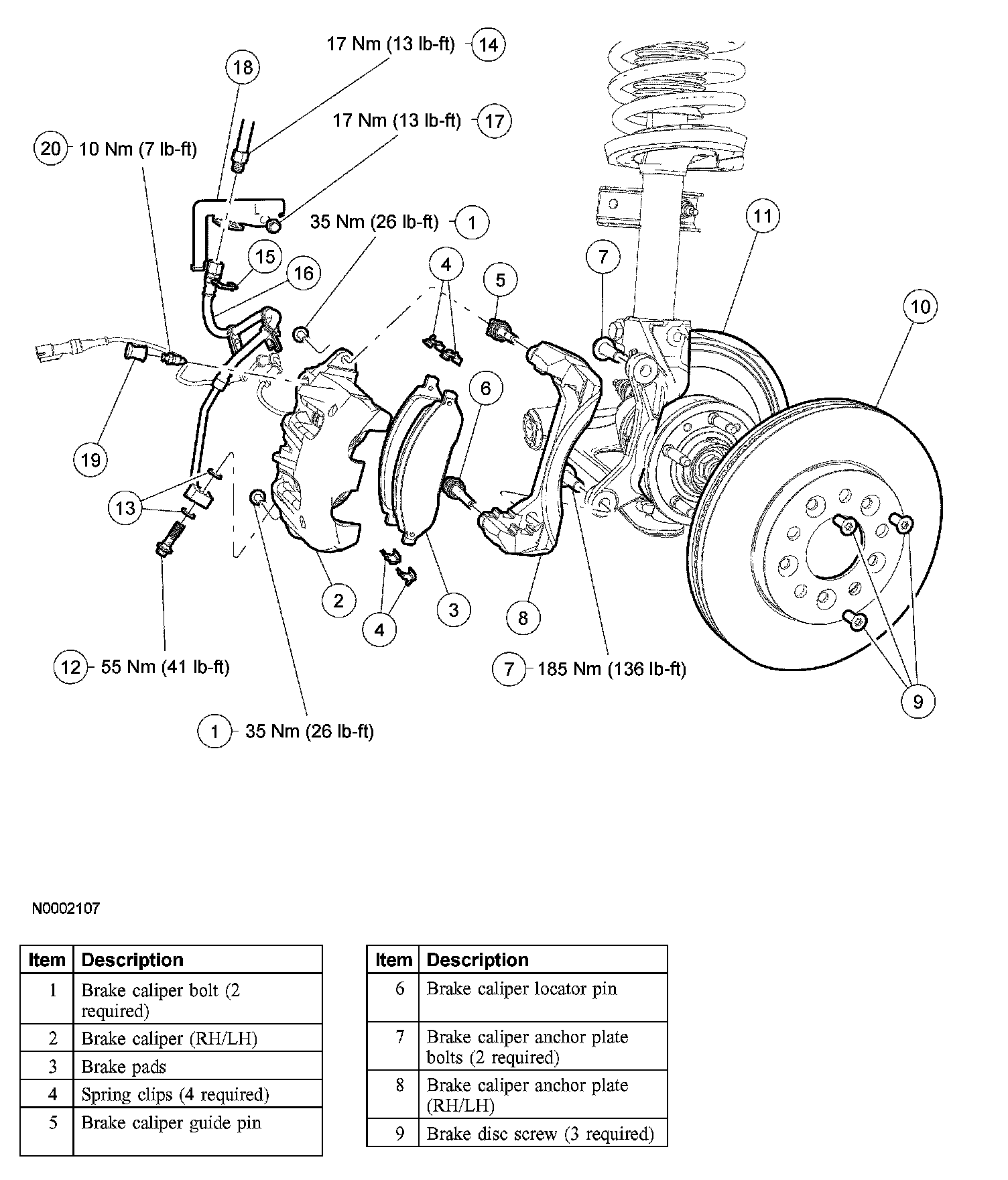

Disc Brake System - Exploded View (Part 1):

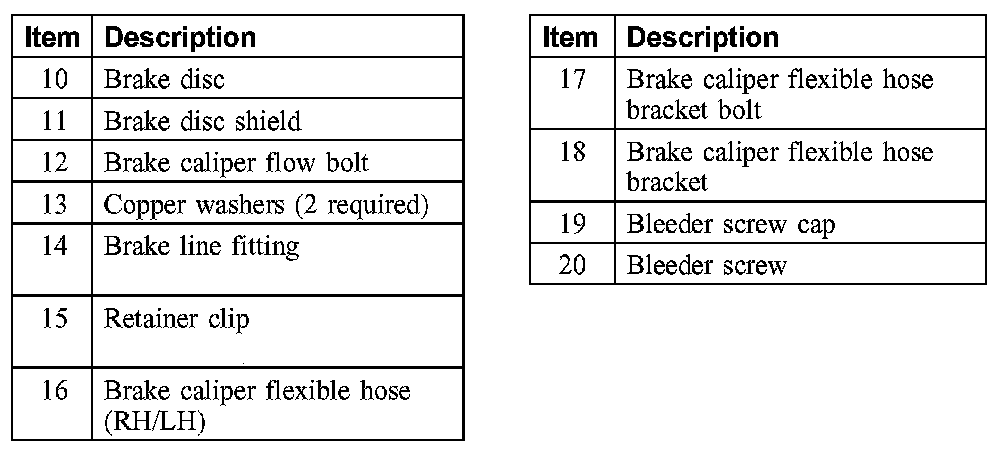

Disc Brake System - Exploded View (Part 2):
