Ford Truck
>>
2006
>>
E 450 V8-5.4L VIN L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Computers and Control Systems
>>
Injector Driver Module
Injector Driver Module

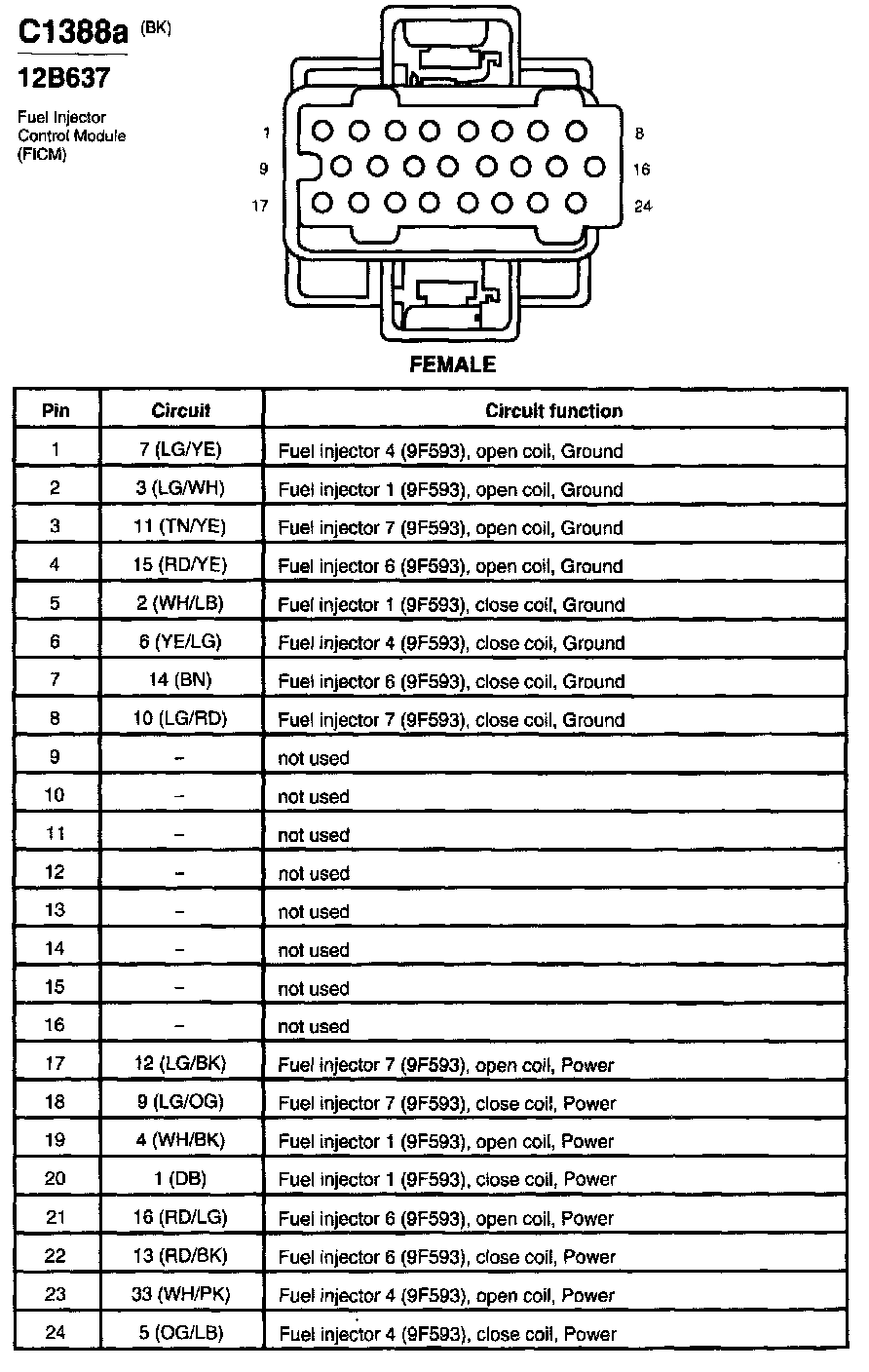

C1388a:

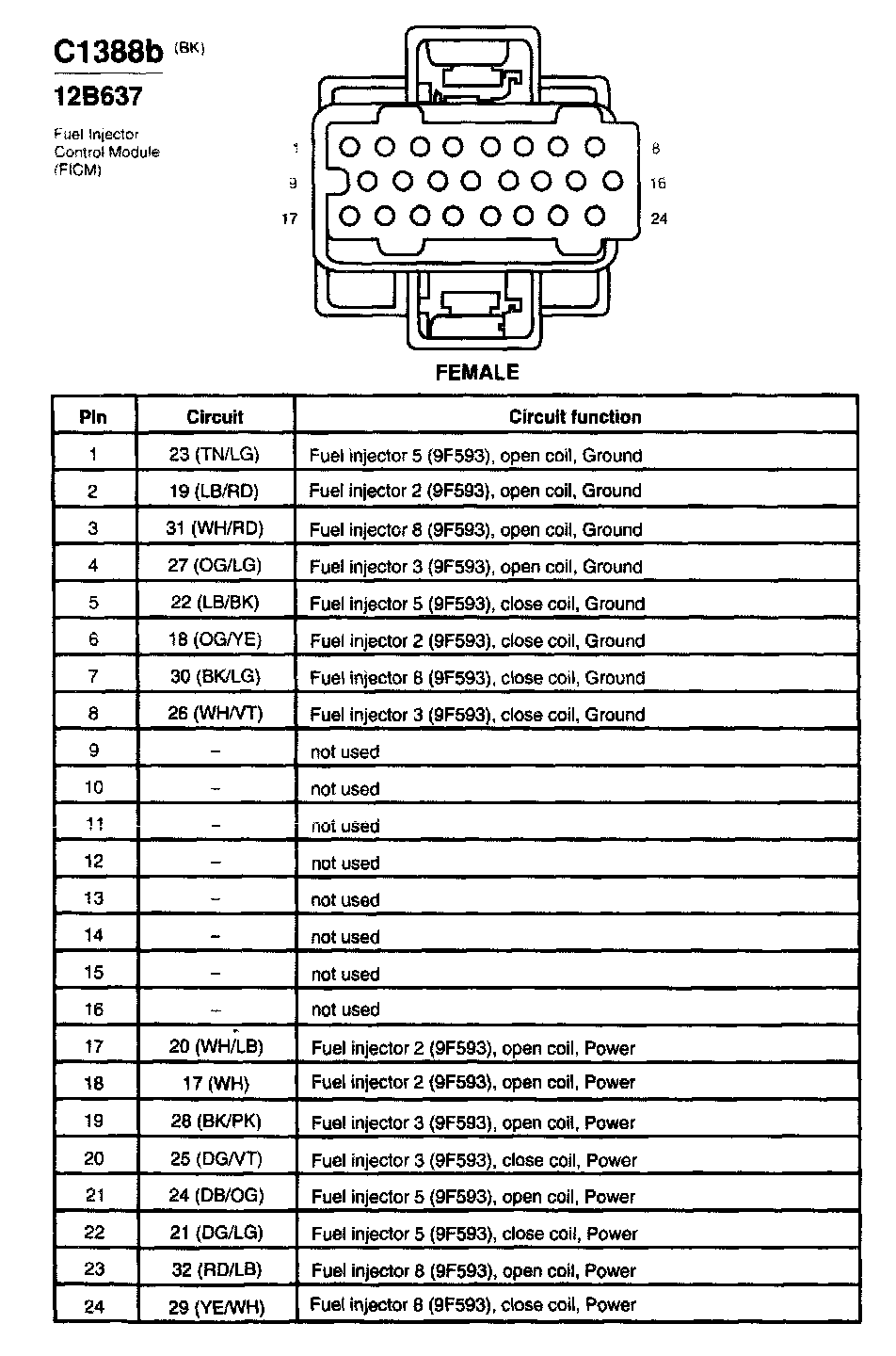

C1388b:

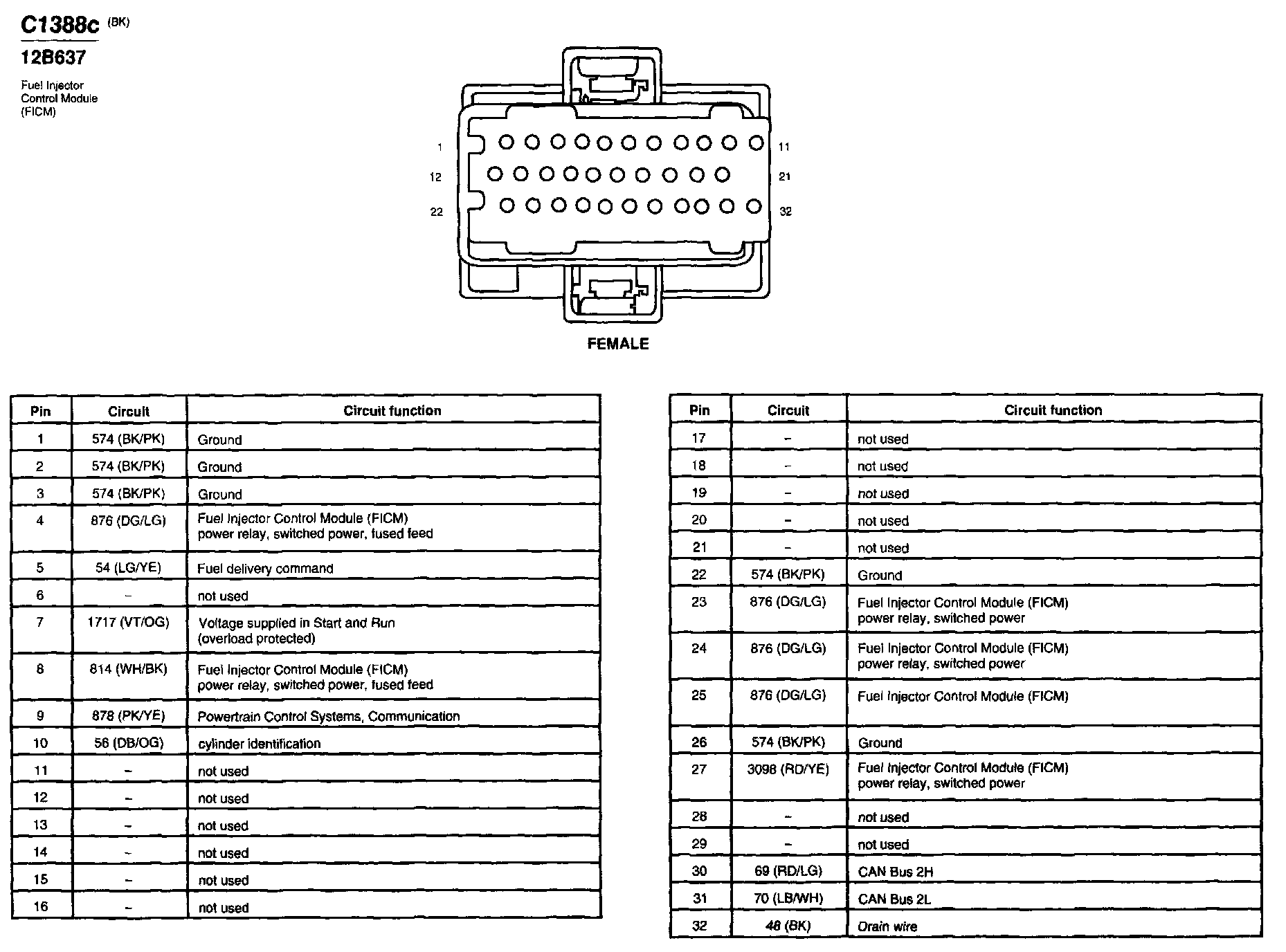

C1388c:
