Test R: No Universal Asynchronous Receiver-Transmitter (UART) Based Protocol (UBP) Network Communication

PINPOINT TEST R: NO UNIVERSAL ASYNCHRONOUS RECEIVER-TRANSMITTER (UART) BASED PROTOCOL (UBP) NETWORK COMMUNICATION

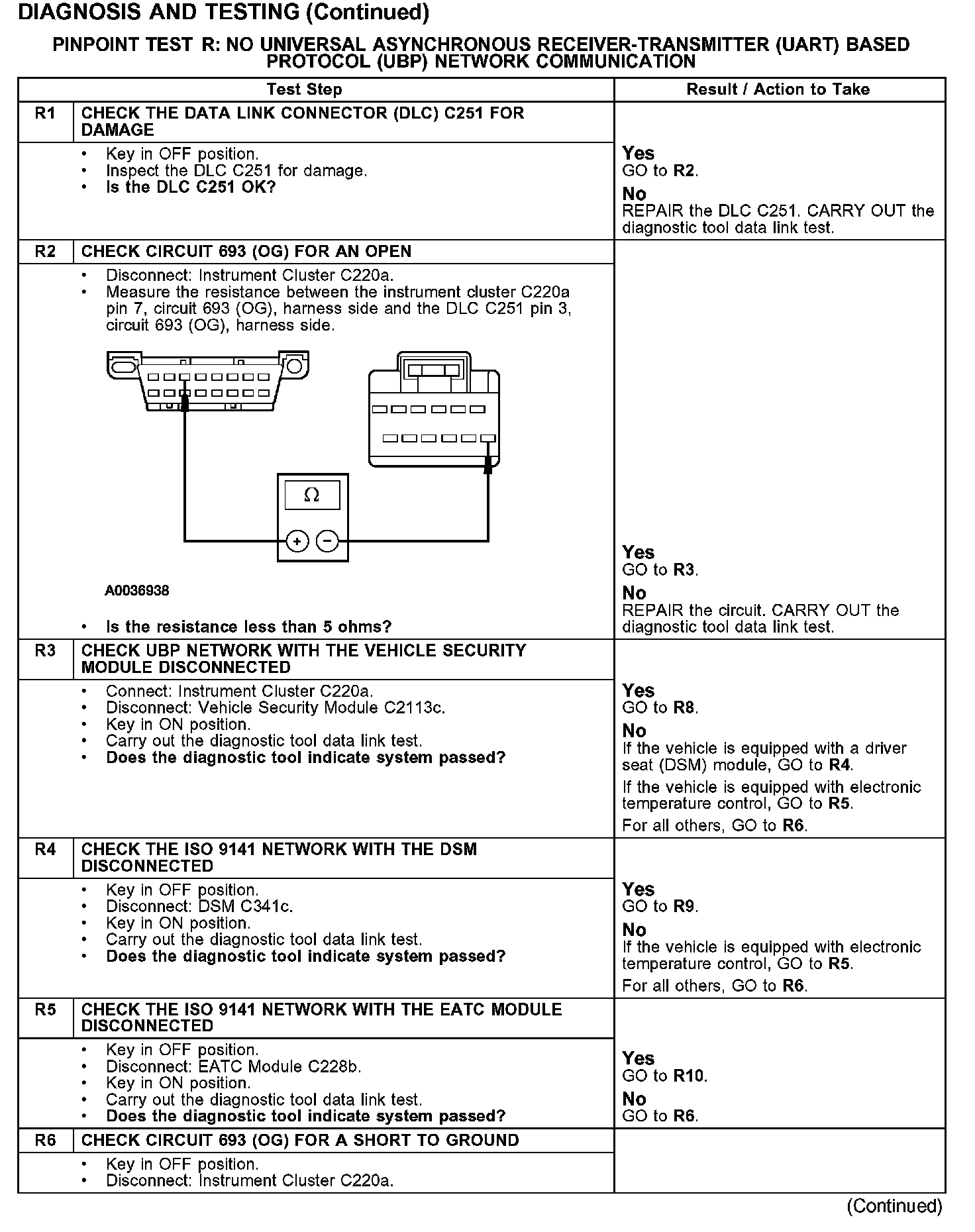

R1-R6:

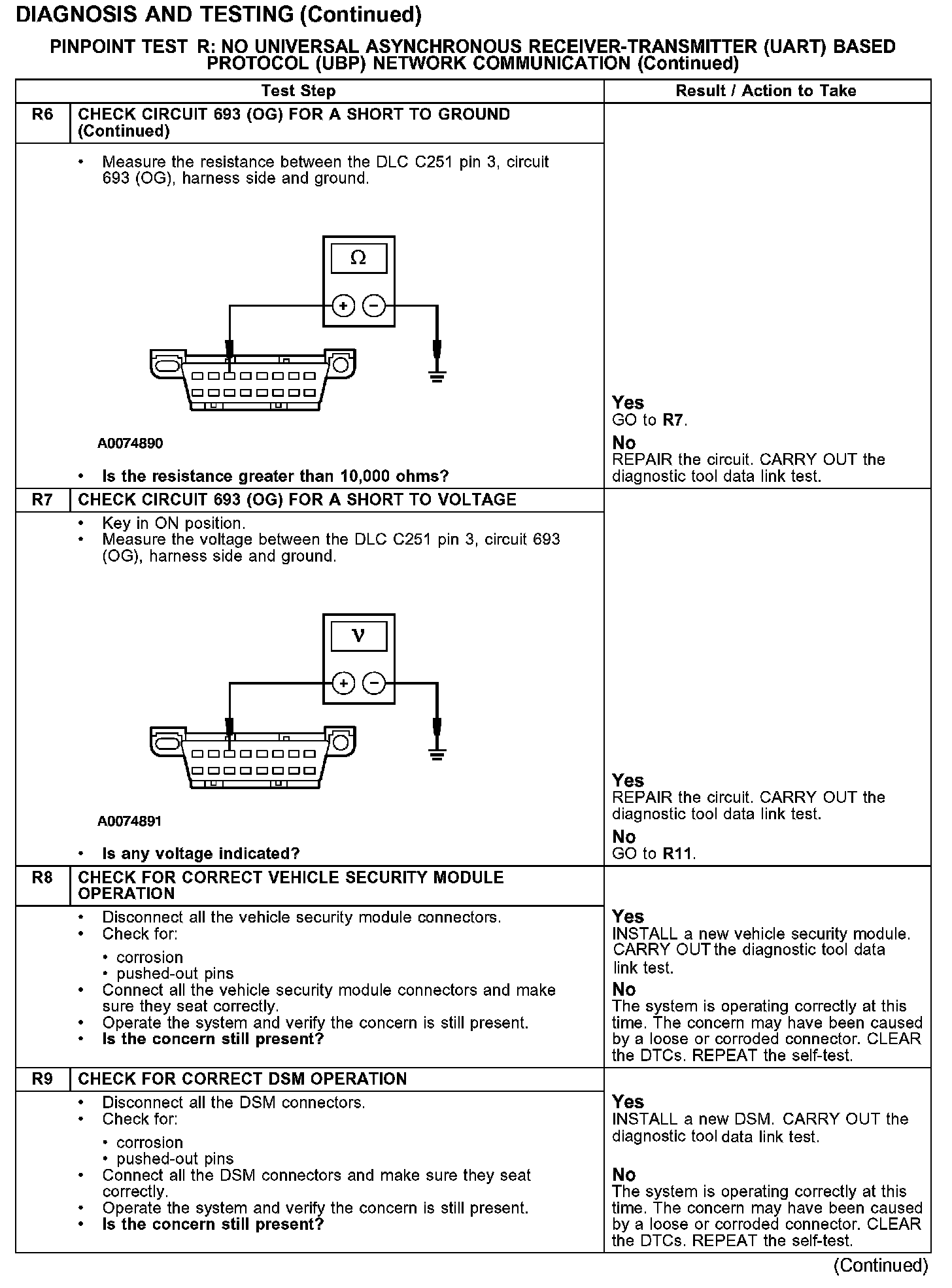

R6-R9:

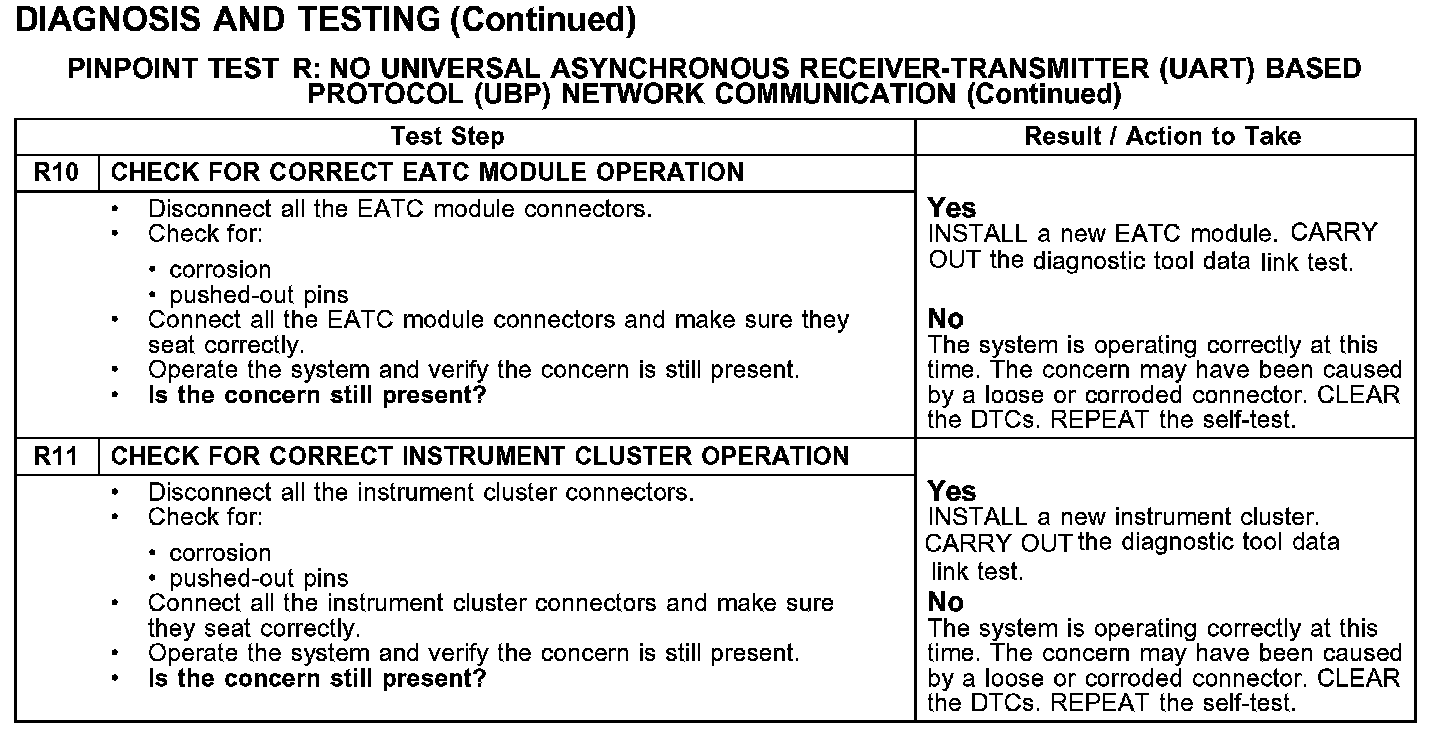

R10-R11:
