Home
>>
Ford Truck
>>
2004
>>
Explorer 2WD V6-4.0L VIN E
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
>>
Diagrams
>>

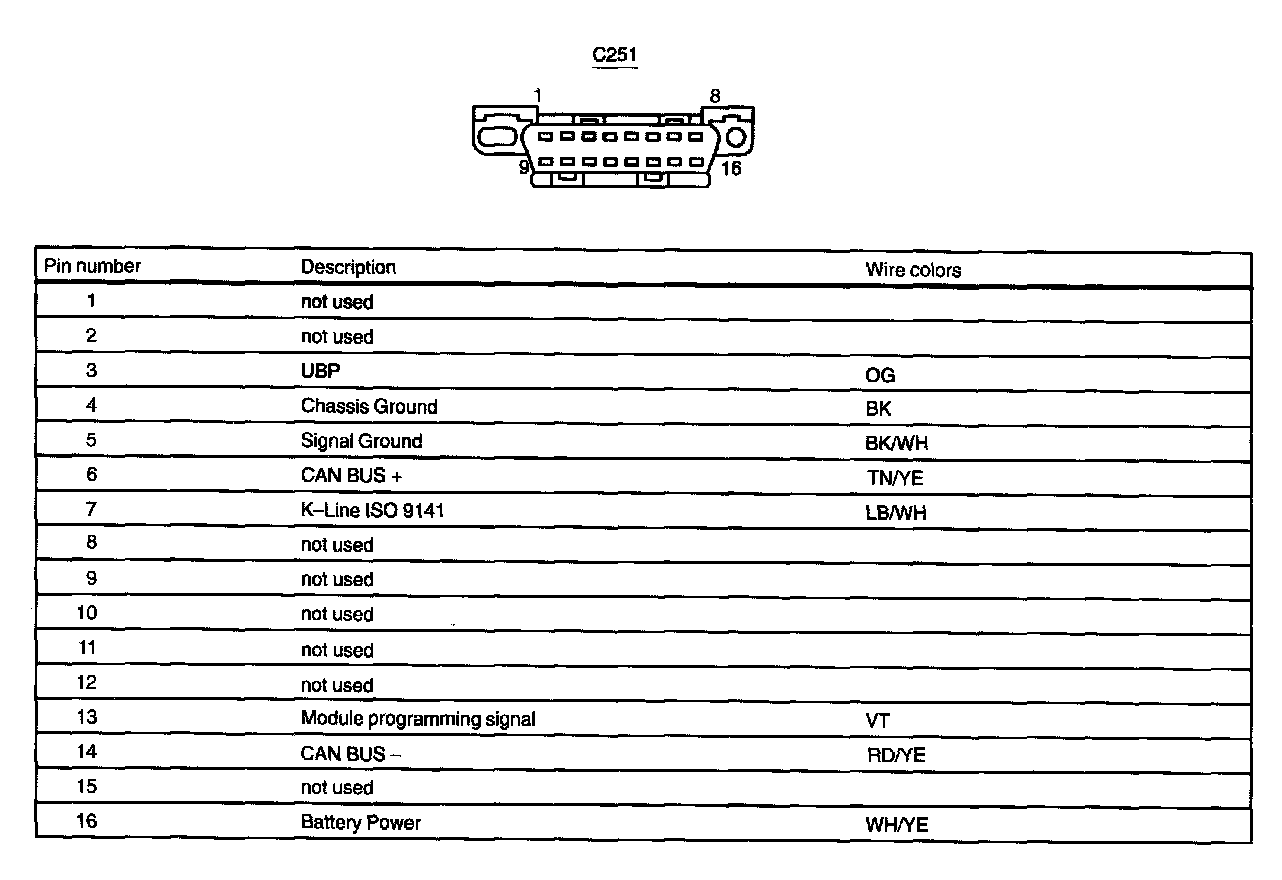

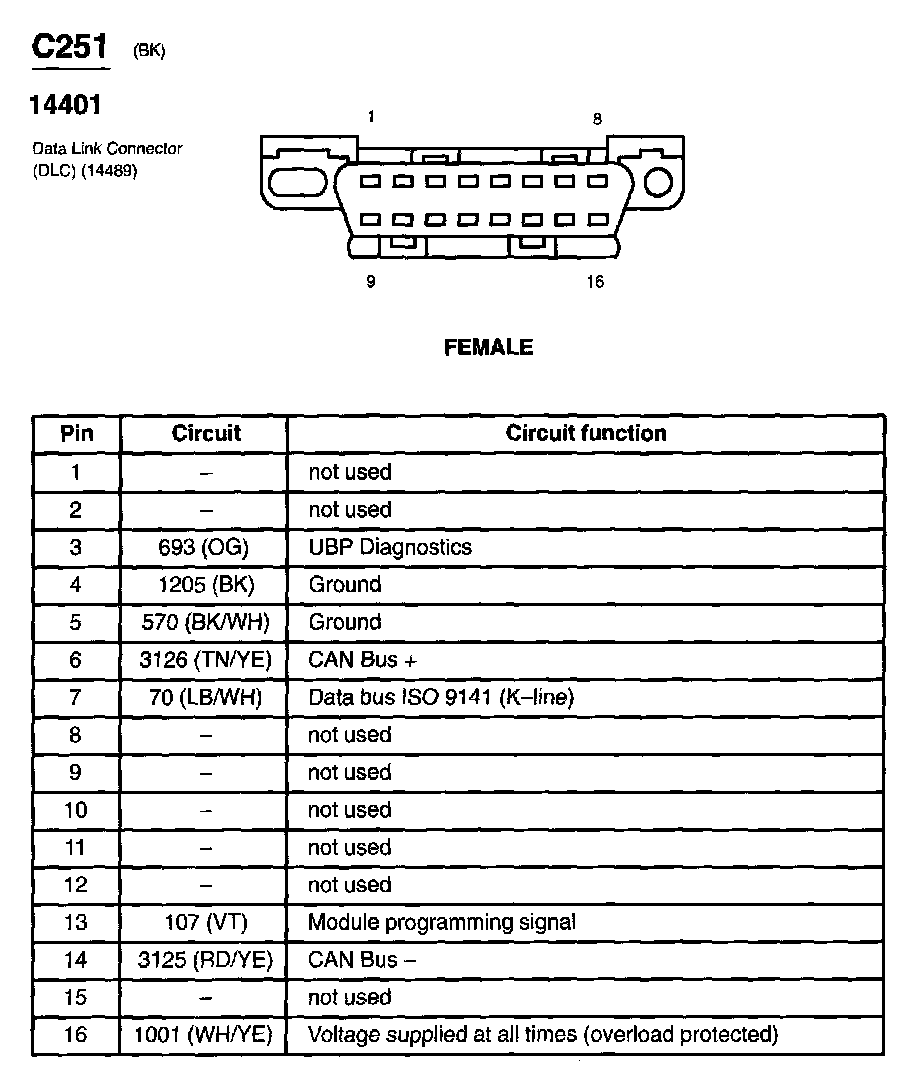

Connector Views
Connector Views
14-3:
