Manual Transmission/Transaxle

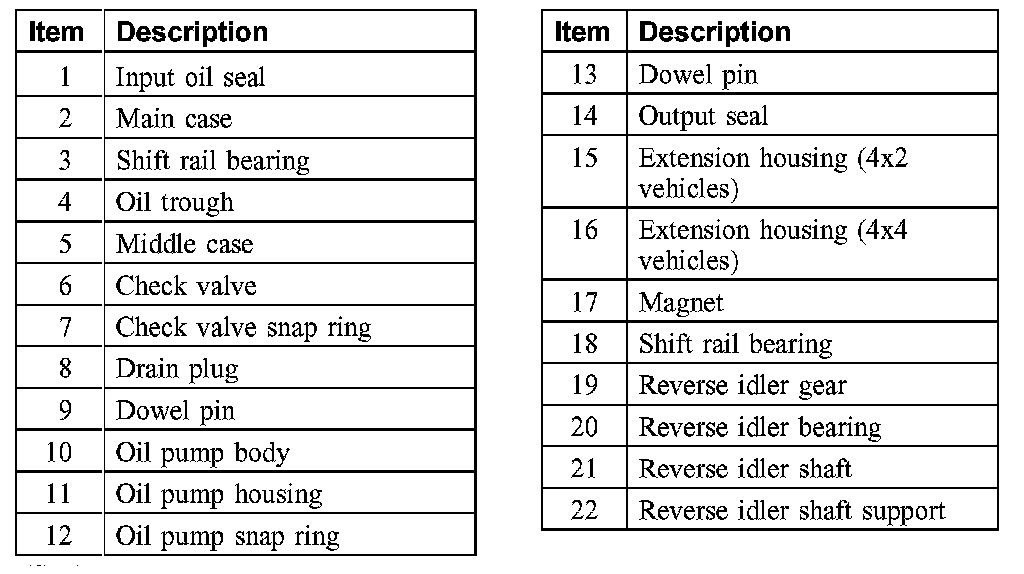

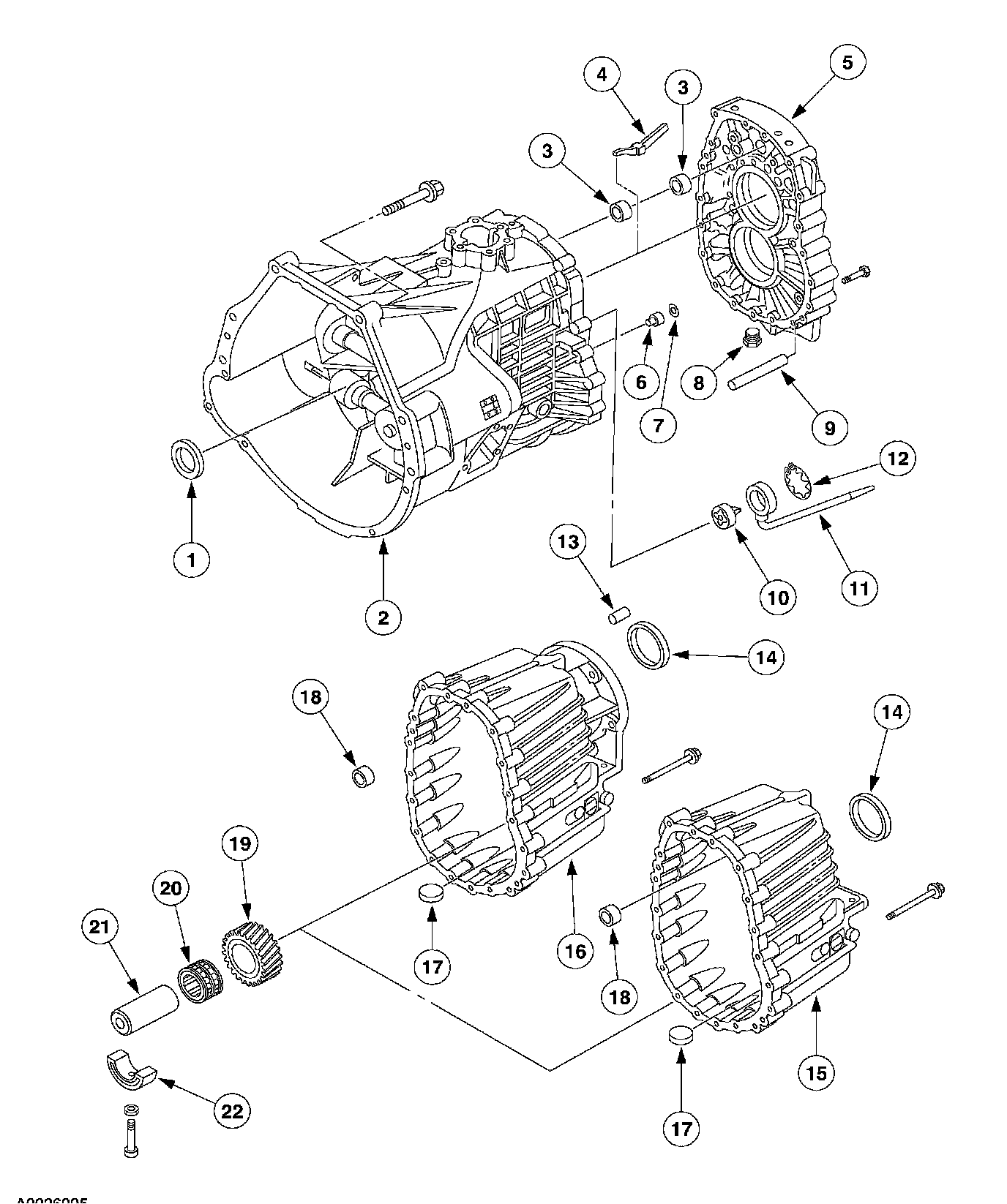

Disassembled View

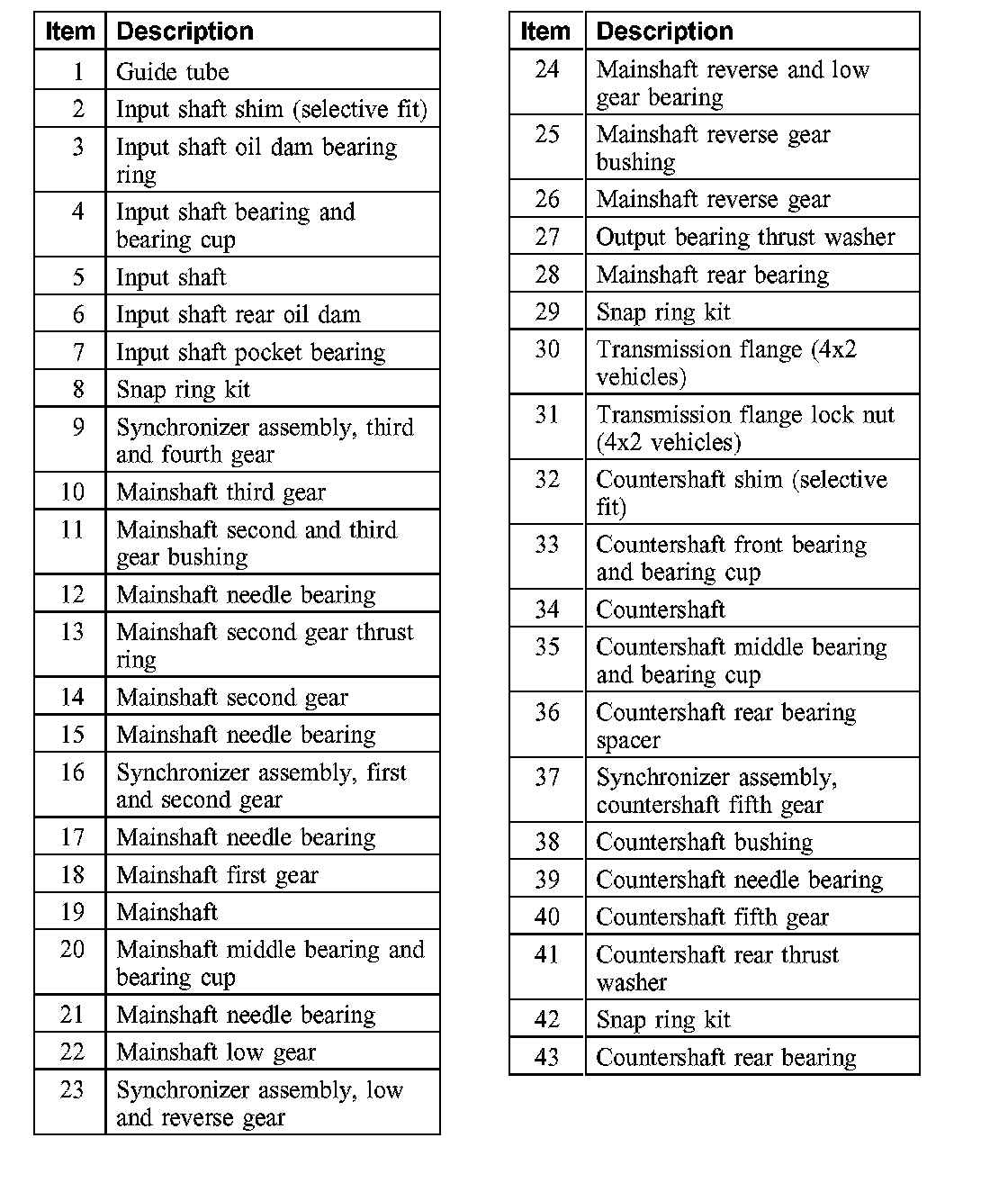

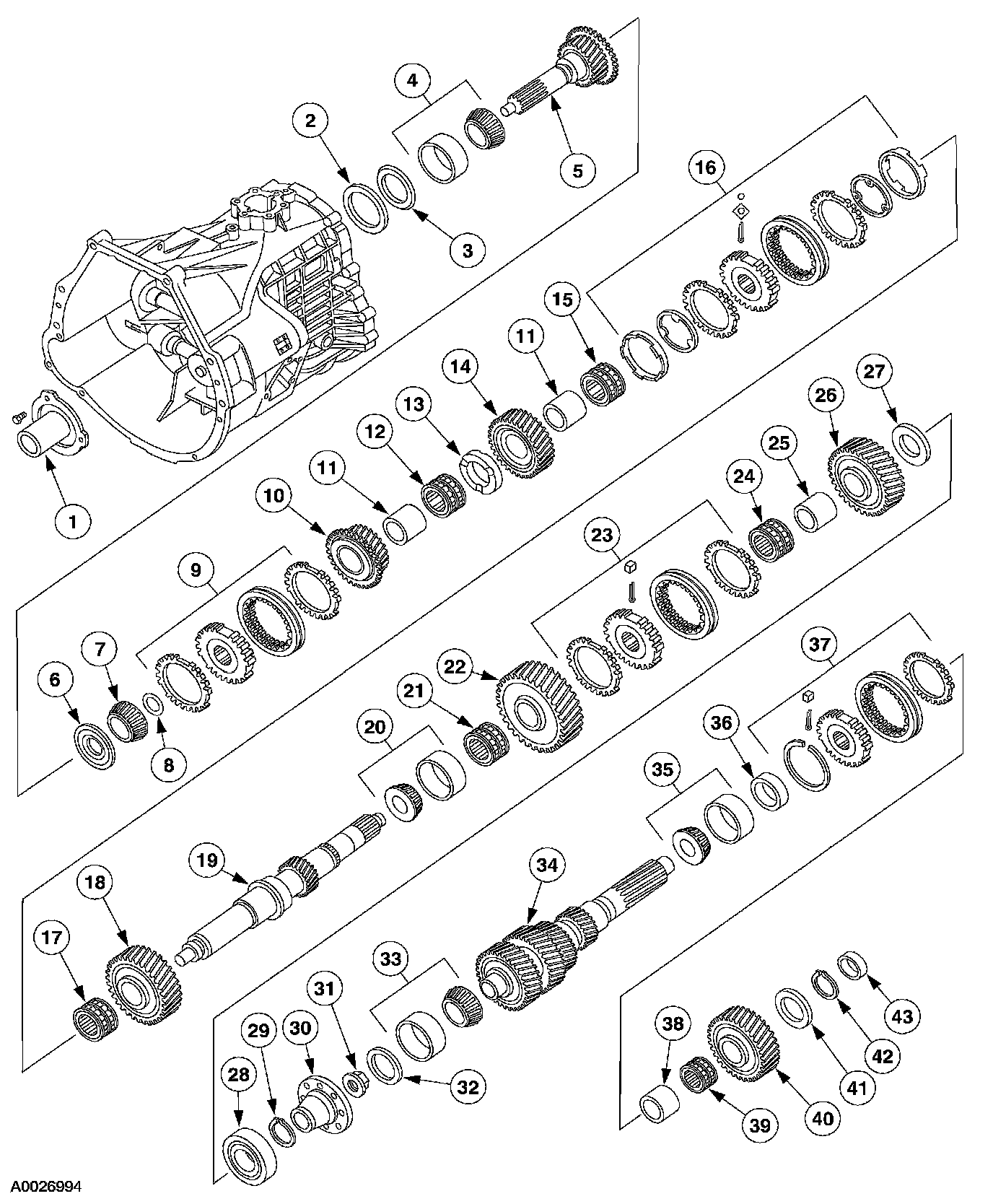

Transmission Internal Components-Disassembled View








Transmission Internal Components-Disassembled View

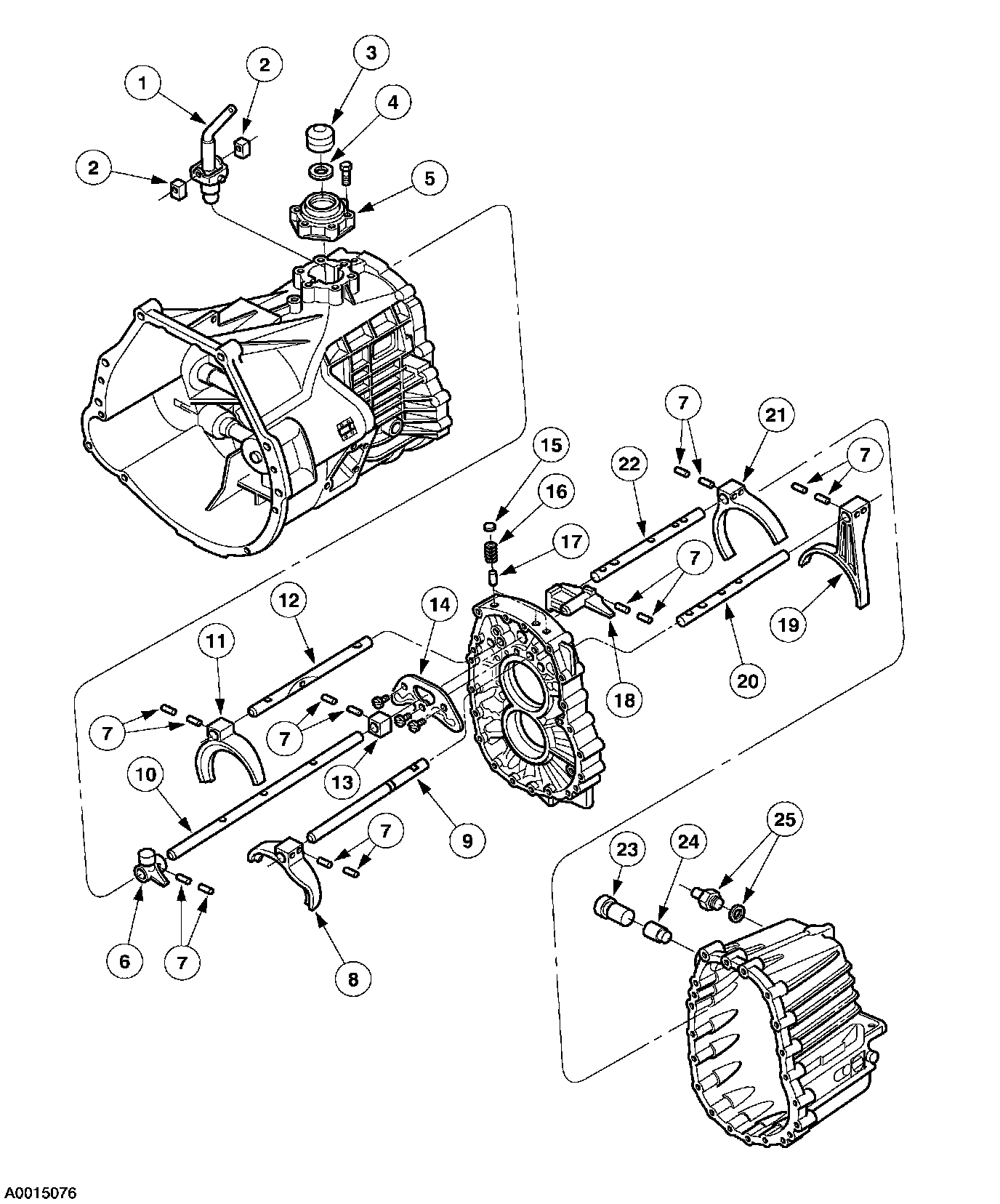

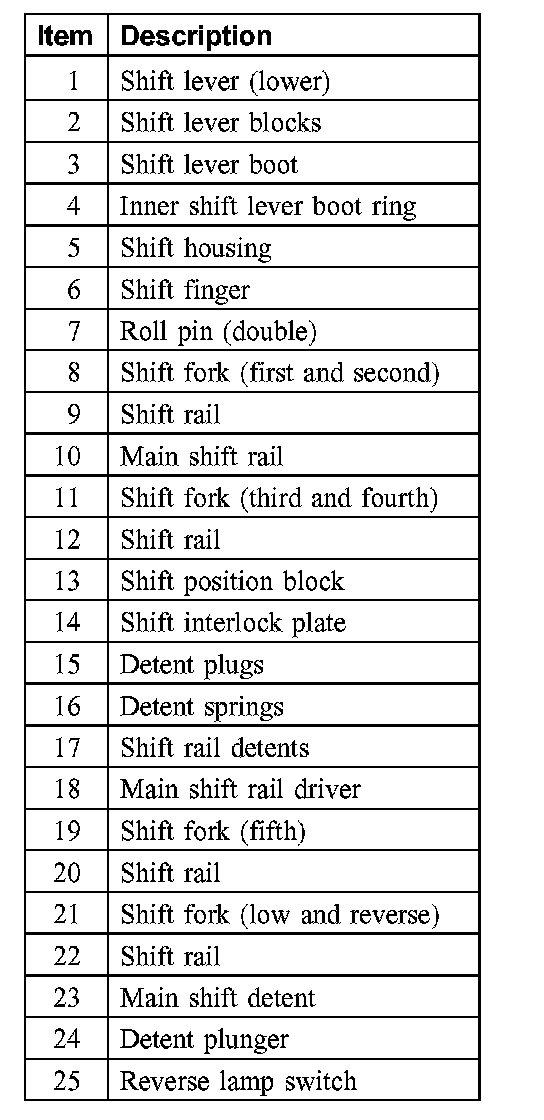

Transmission Shift Components - Disassembled View
