PINPOINT TEST Q: NO STANDARD CORPORATE PROTOCOL (SCP) NETWORK COMMUNICATION
Test Q1:

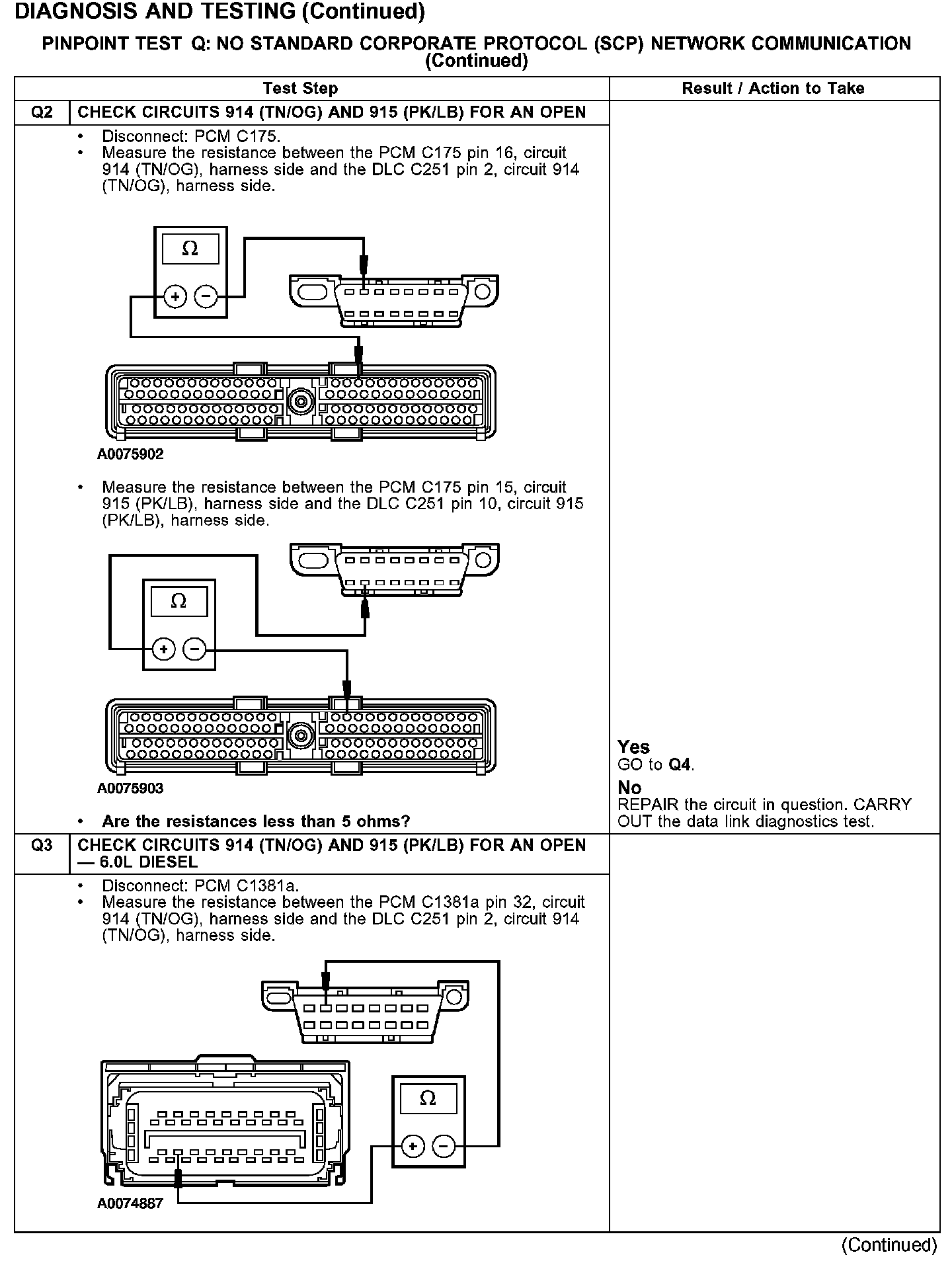

Test Q2-Q3:

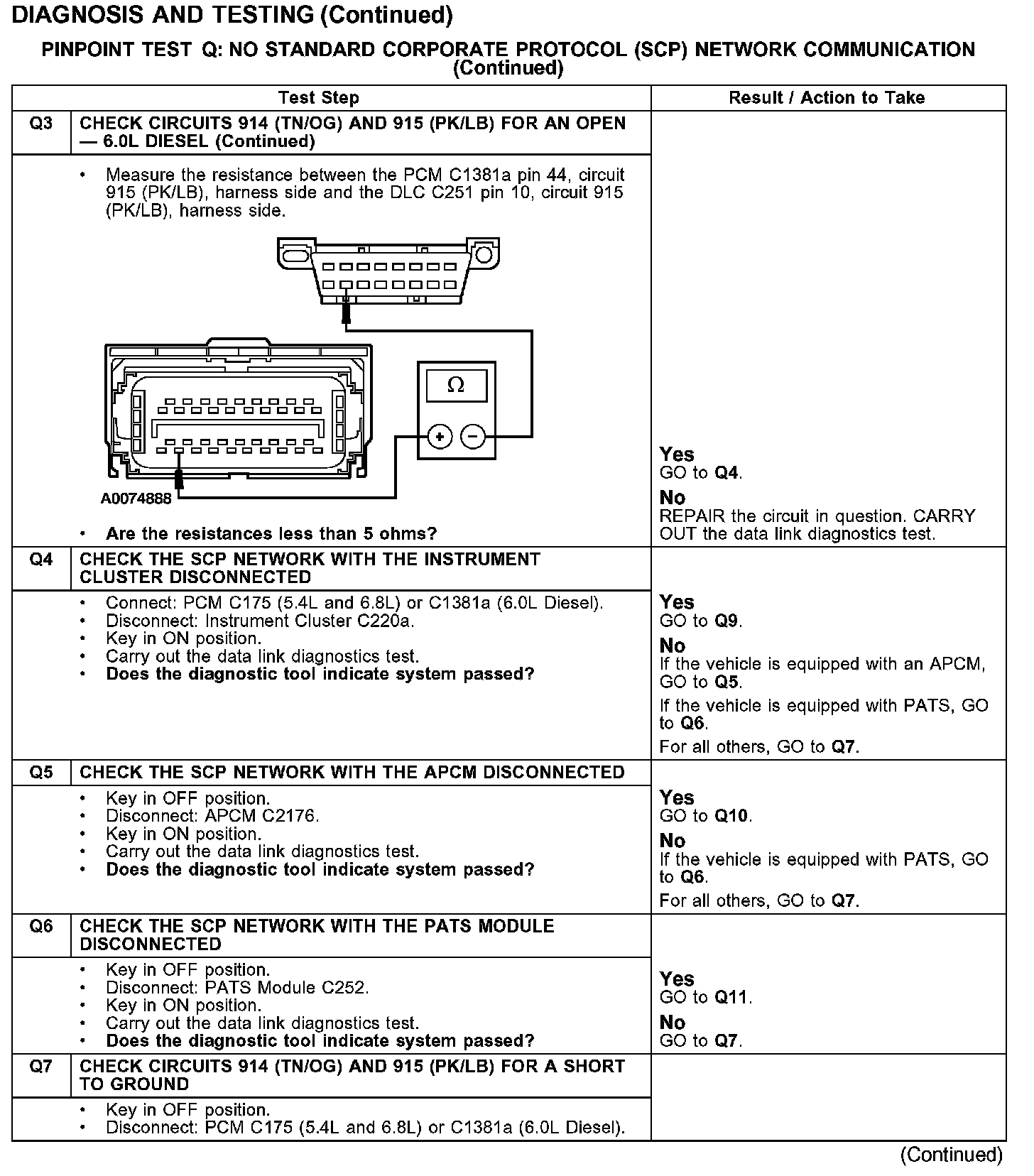

Test Q3-Q7:

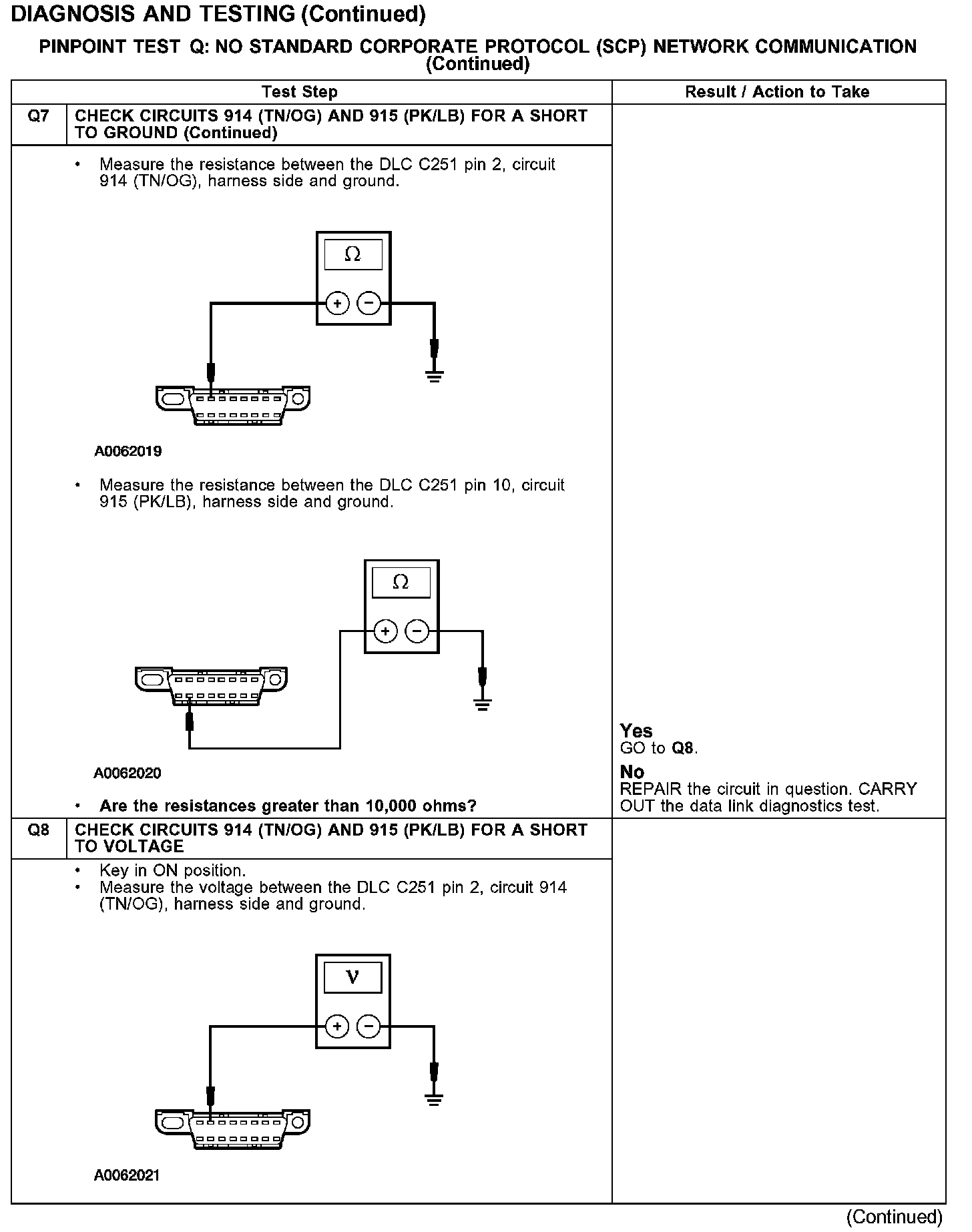

Test Q7-Q8:

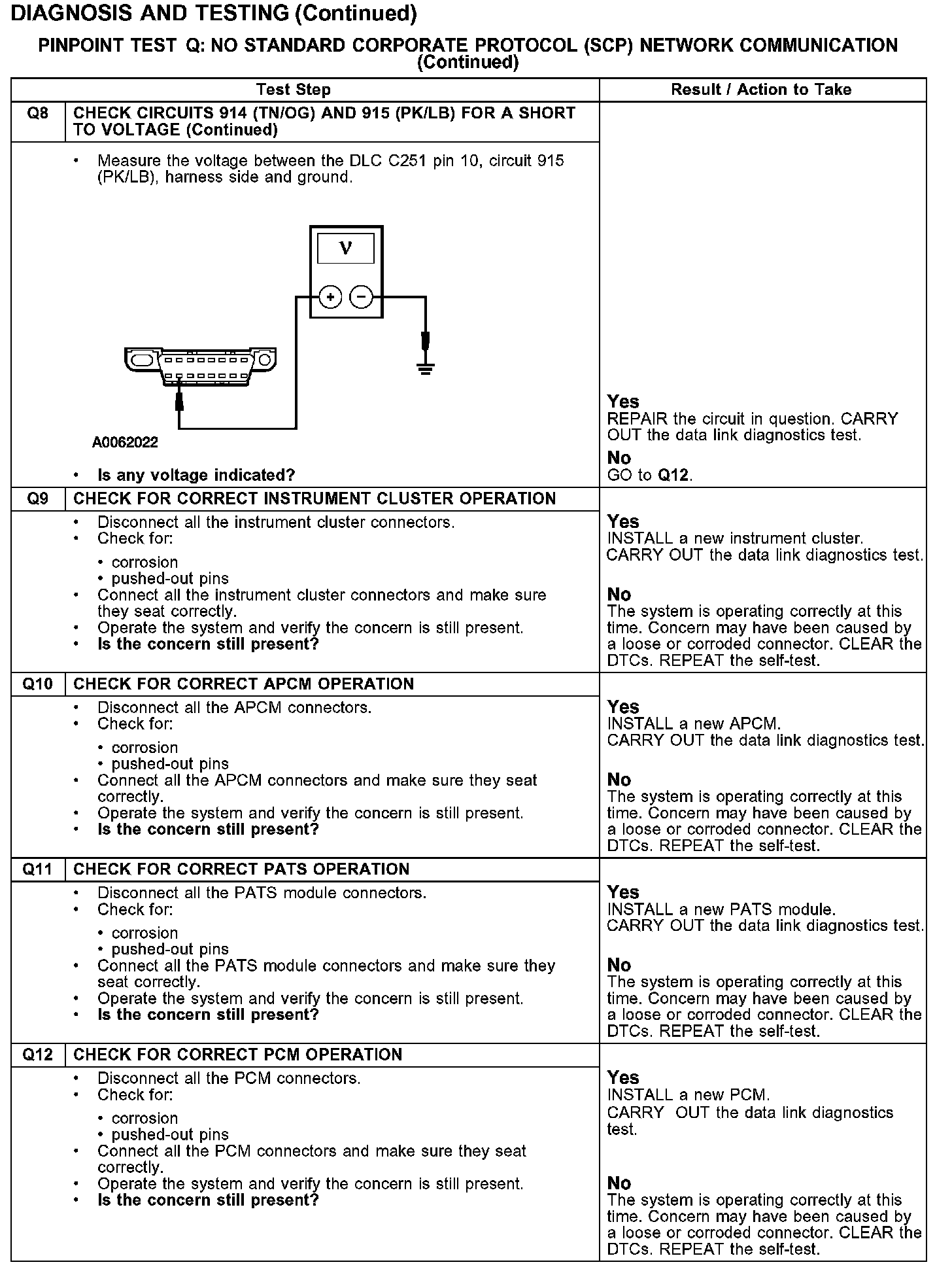

Test Q8-Q12:
