Ford Truck
>>
2004
>>
Excursion 2WD V10-6.8L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
TorqShift Automatic Transmission
>>
Disassembled Views
Disassembled Views
Disassembled Views

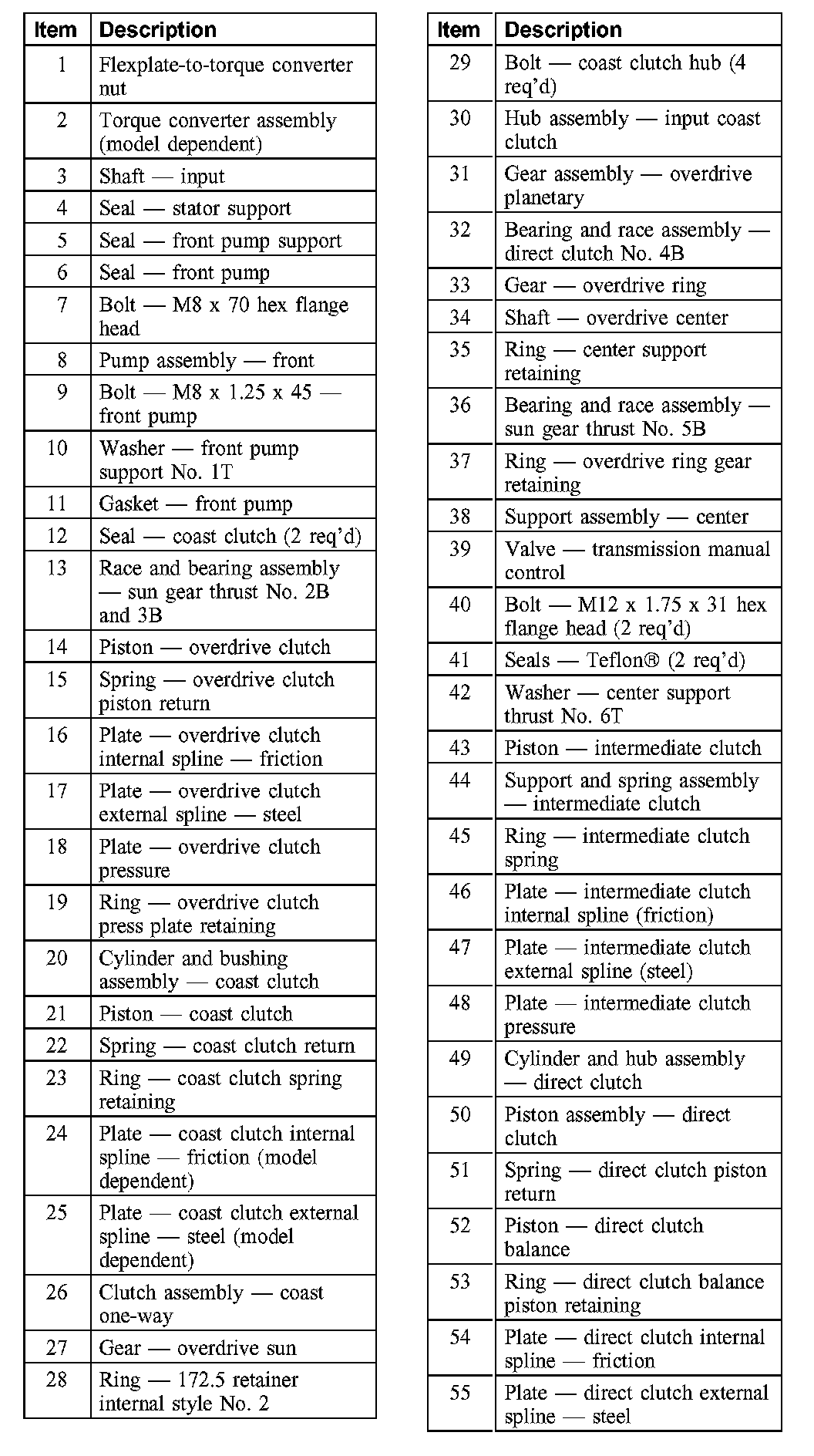

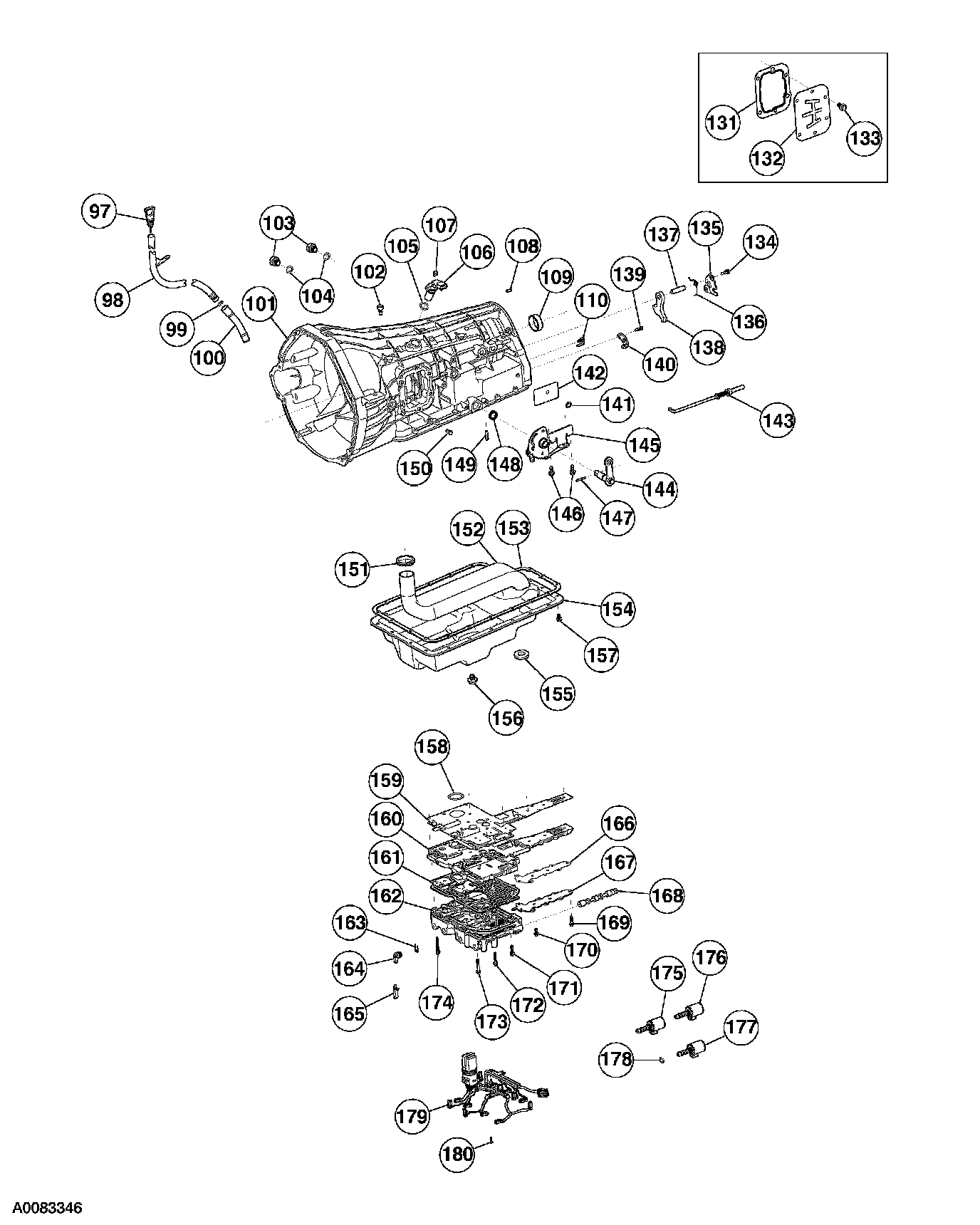

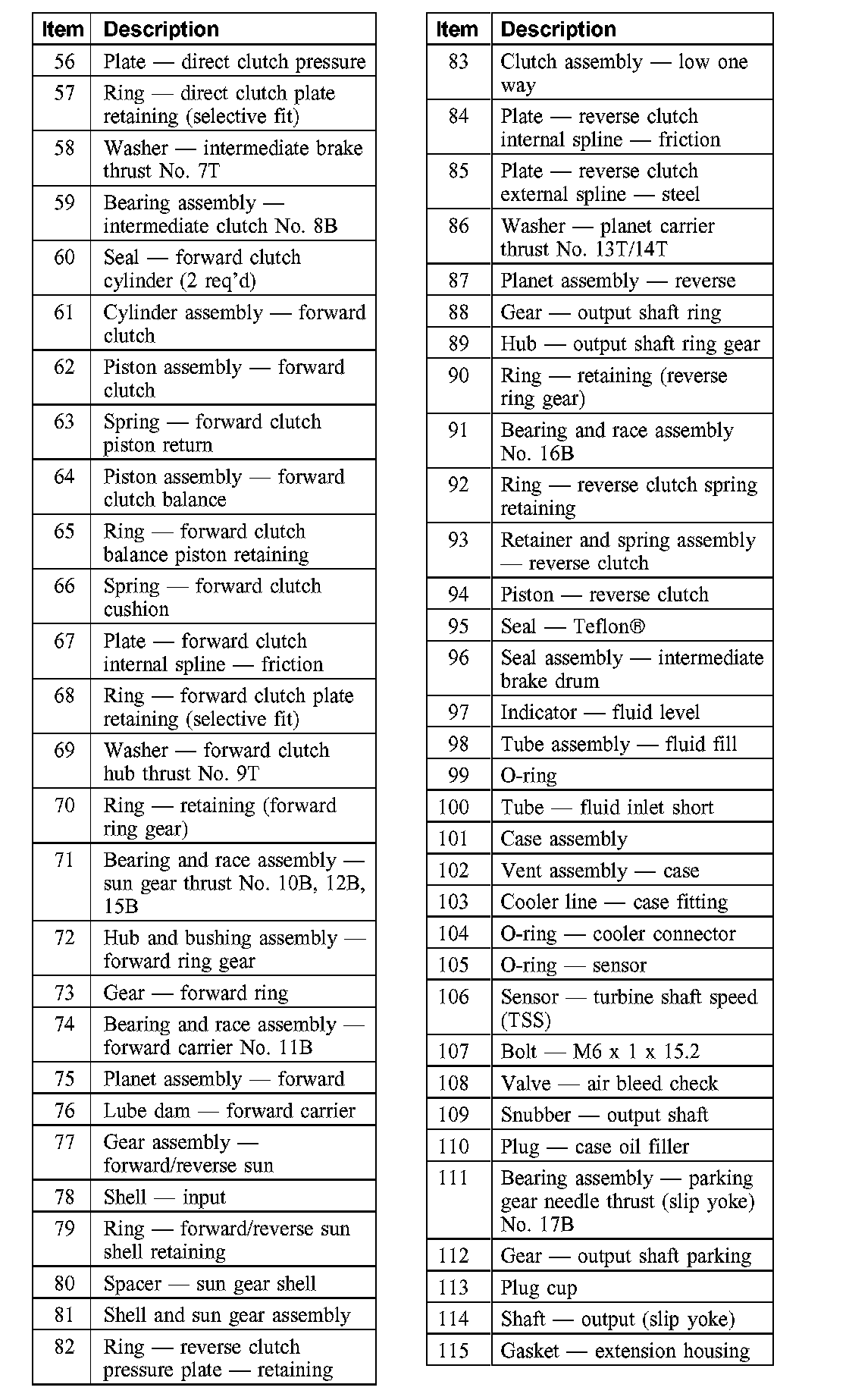

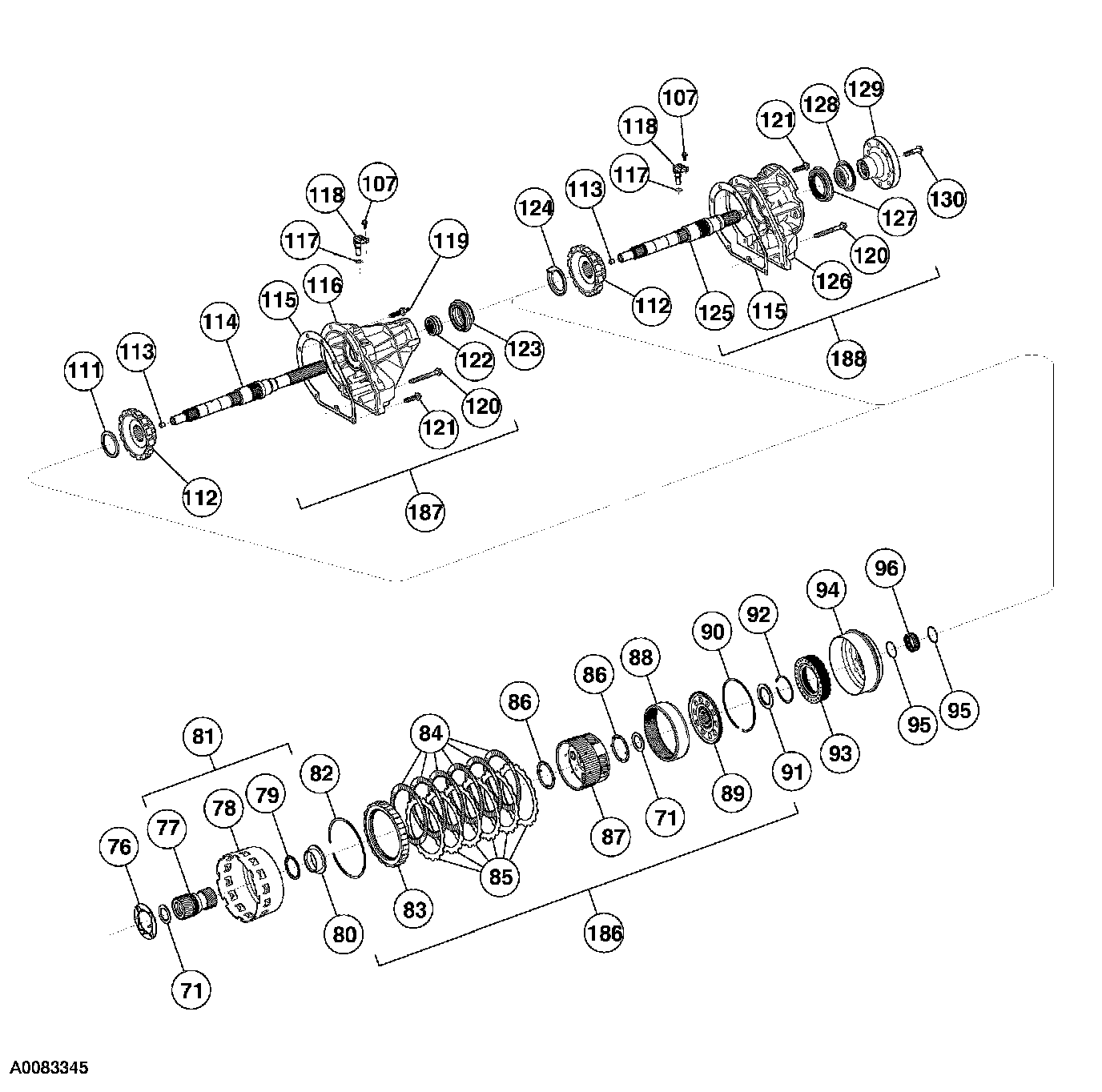

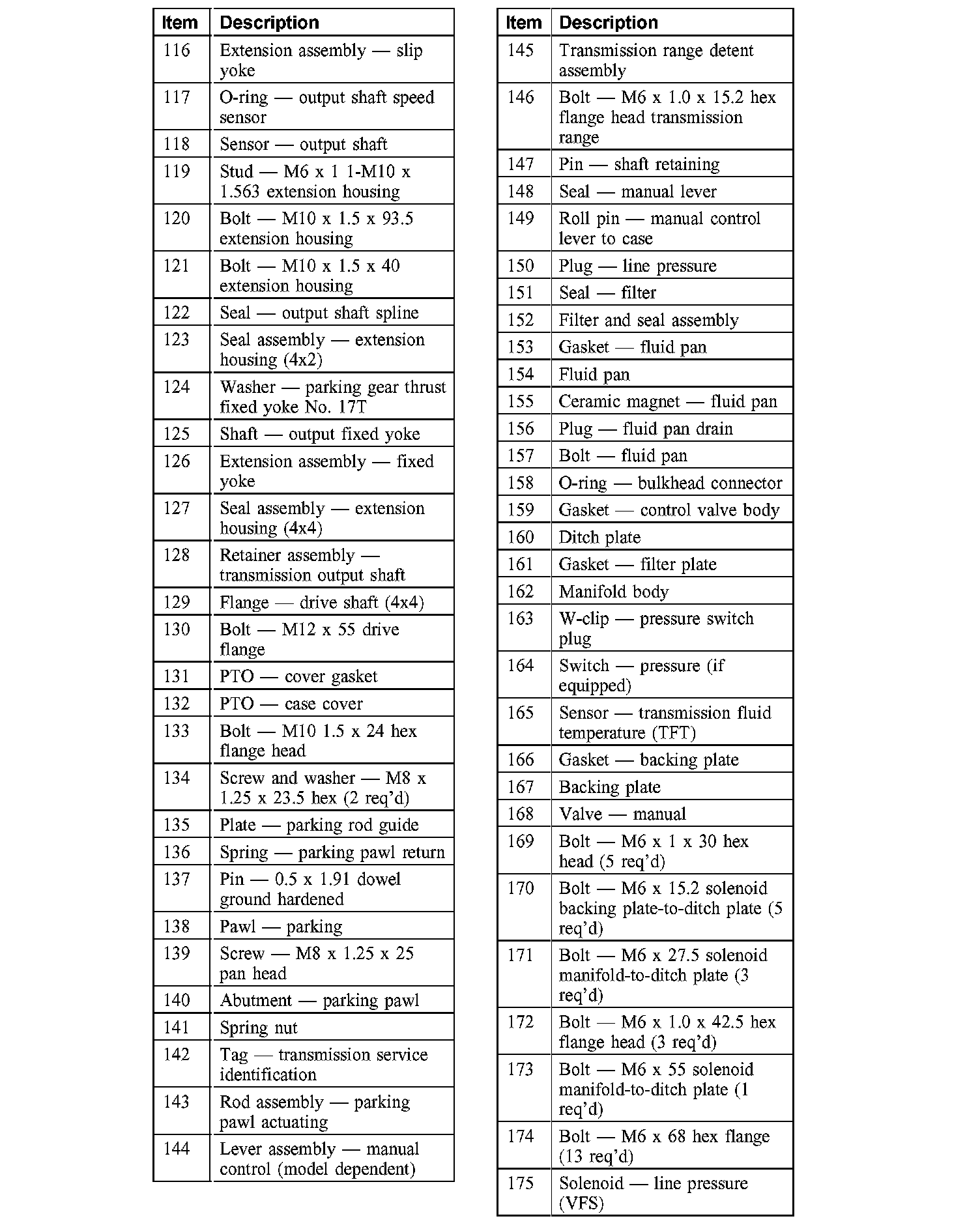

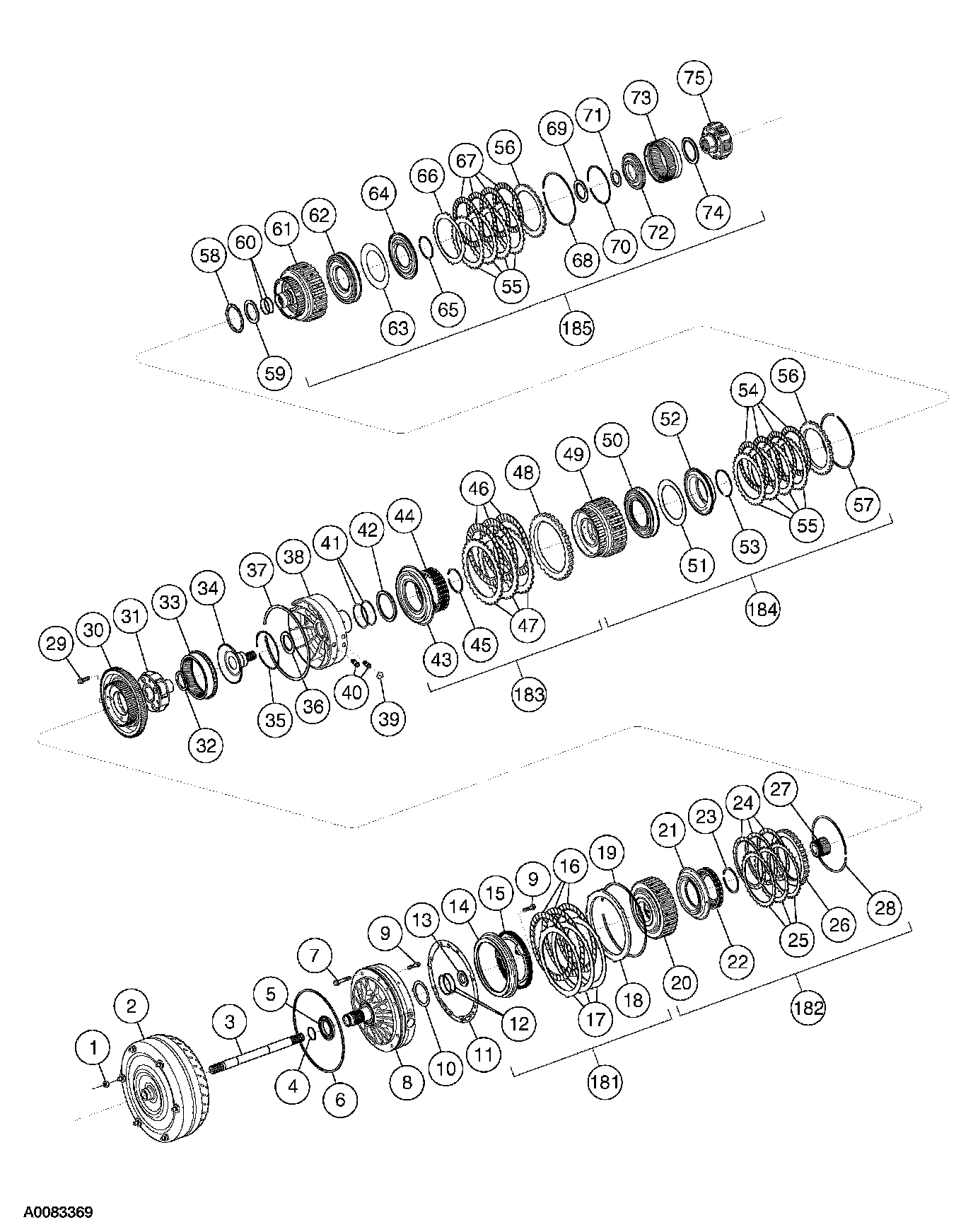

Transmission, Disassembled View
