Ford Truck
>>
2001
>>
Excursion 2WD V10-6.8L VIN Z Bi-Fuel
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>
Fuse Panel/Circuit Protection

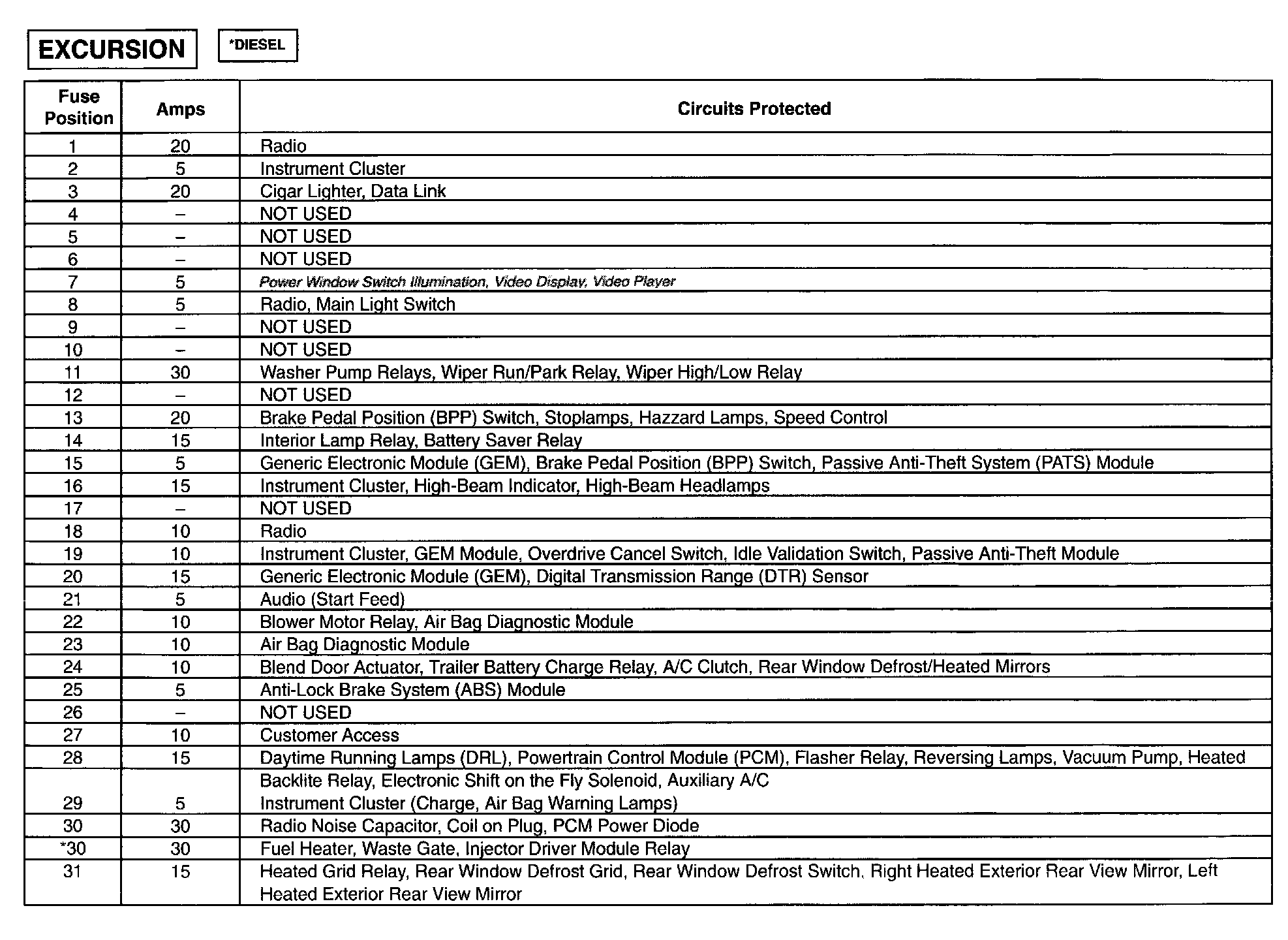

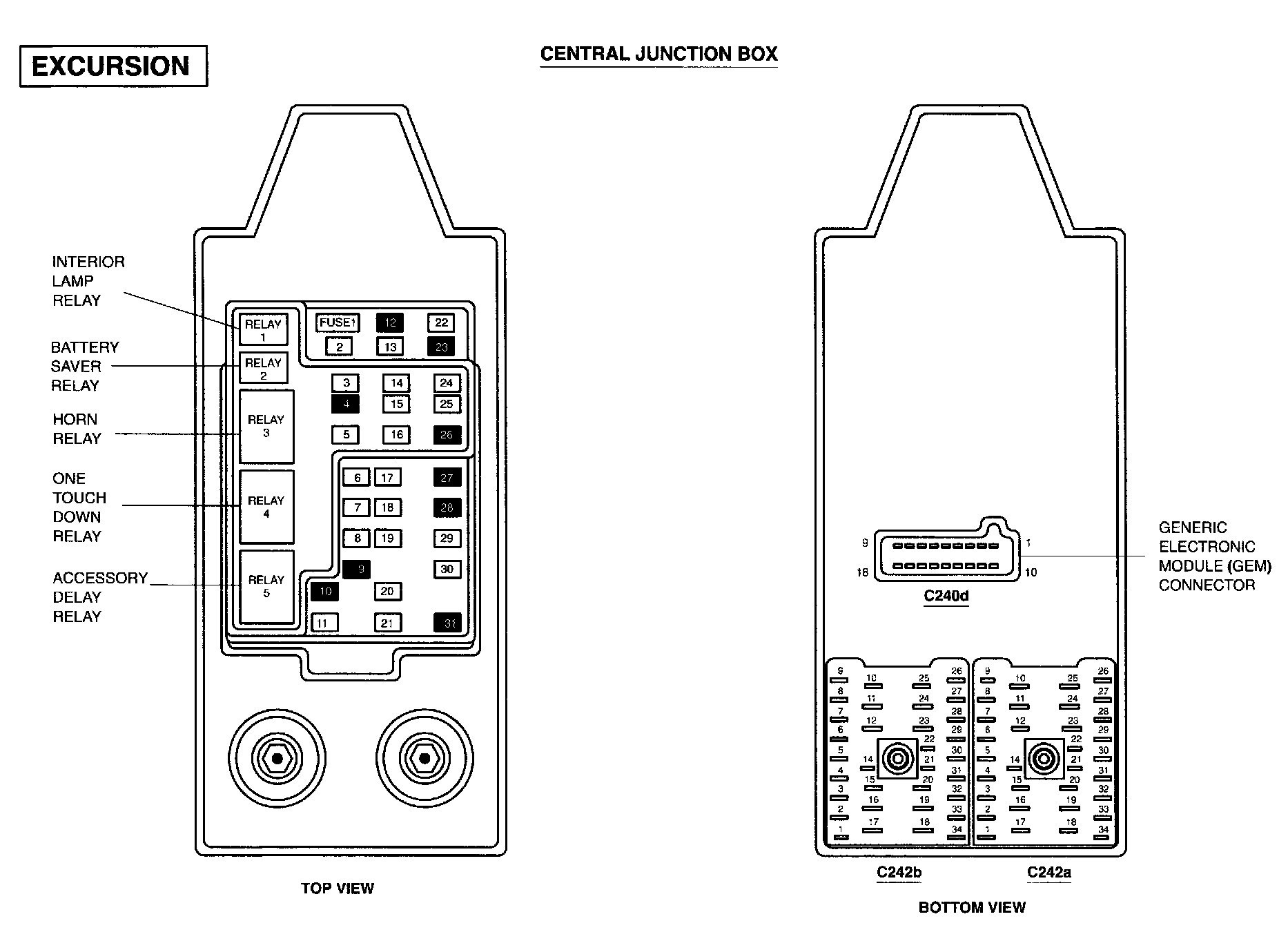

Fuse Panel/Circuit Protection
Part 1:
Part 2:
