Ford Truck
>>
2001
>>
Excursion 2WD V10-6.8L VIN S
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Testing and Inspection
>>
Component Tests
Component Tests

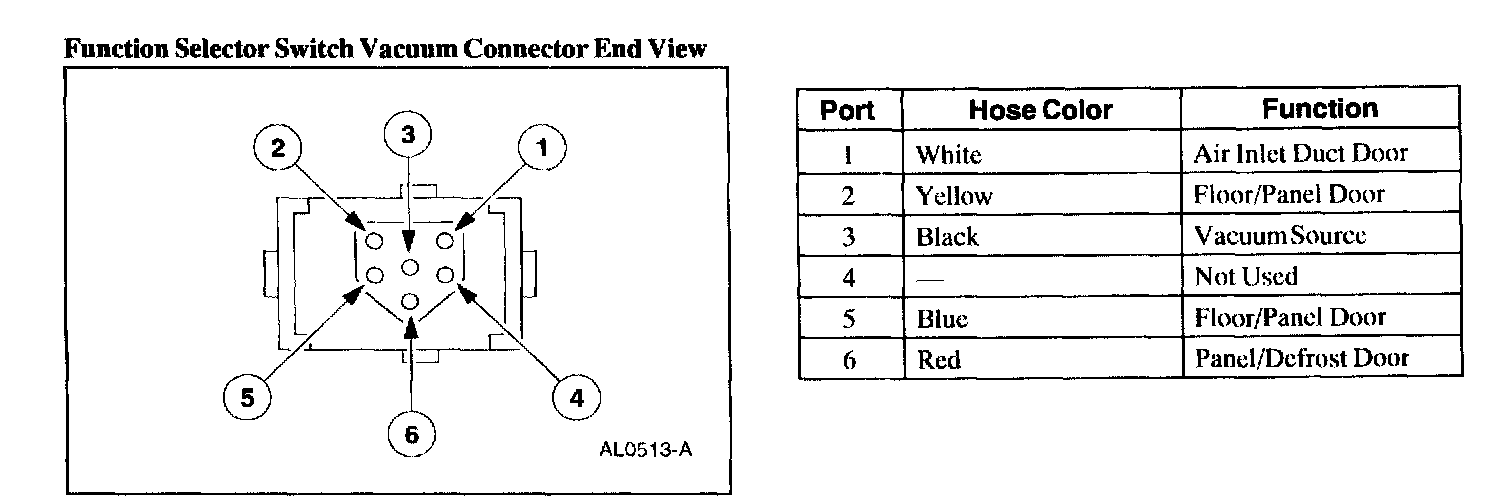

Function Selector Switch Vacuum Connector End View:

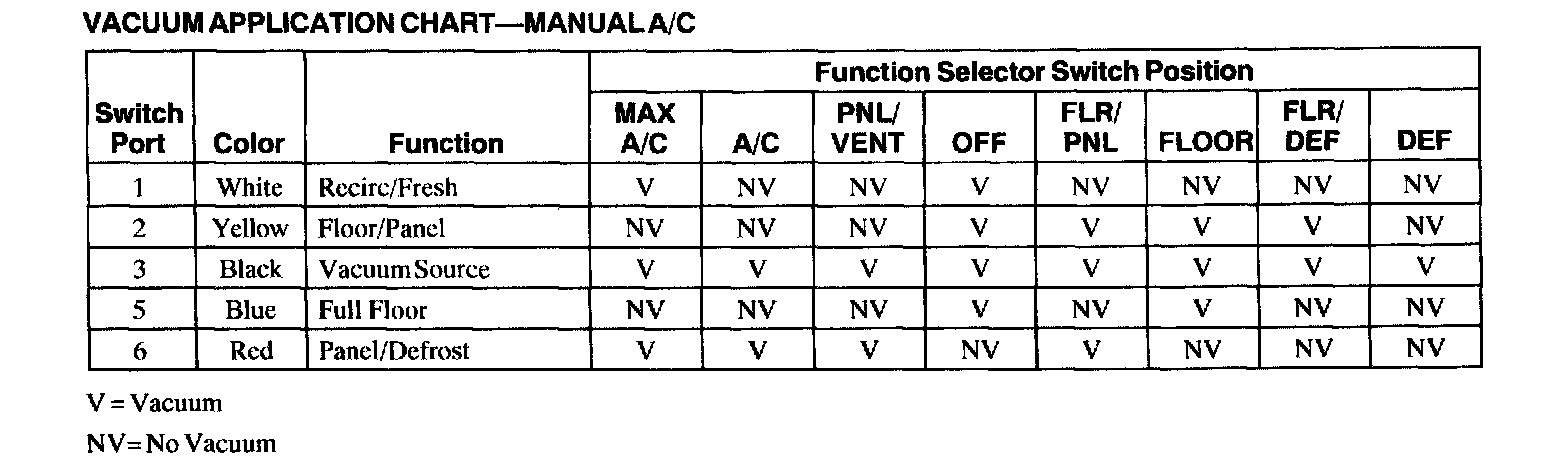

Vacuum Application Chart - Manual A/C:
