Driver Side Register Duct

REMOVAL
1. Remove the instrument panel. Refer to: Body and Frame, Interior Trim, Dashboard/Instrument Panel, Service and Repair, Removal and Installation, Removal and Installation

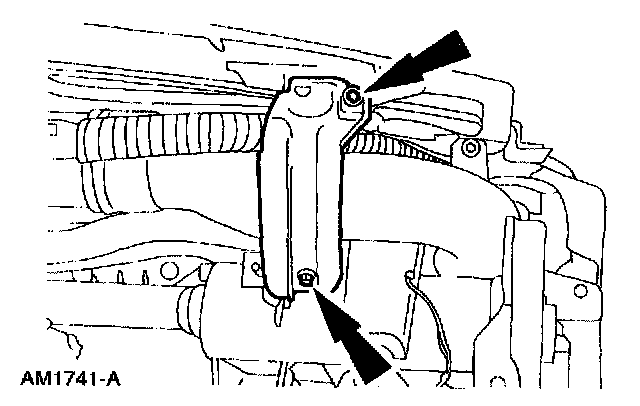

2. Remove the screws and the reinforcement bracket.

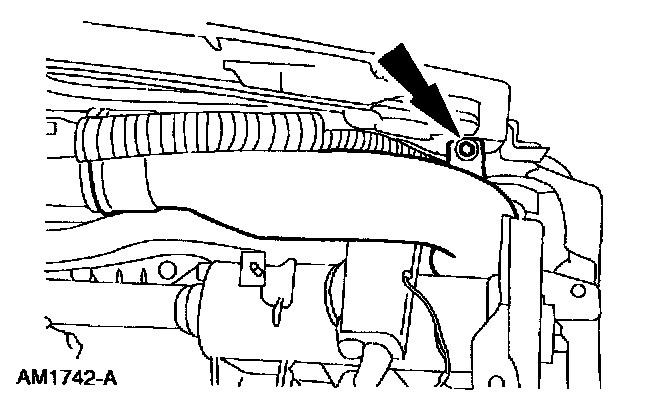

3. Remove the LH register duct screw.
4. Remove the LH register duct.

INSTALLATION
1. To install, reverse the removal procedure.
