Ford Truck
>>
1996
>>
Windstar V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antilock Brakes / Traction Control Systems
>>
System Diagram
>>
Traction Control System
>>
LH Front Sensor Connector
LH Front Sensor Connector

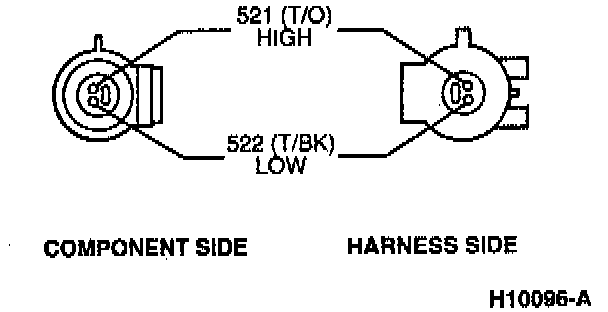

LH Front Sensor Connector:
