Ford Truck
>>
1996
>>
Explorer 2WD V8-302 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Navigation Module
Navigation Module

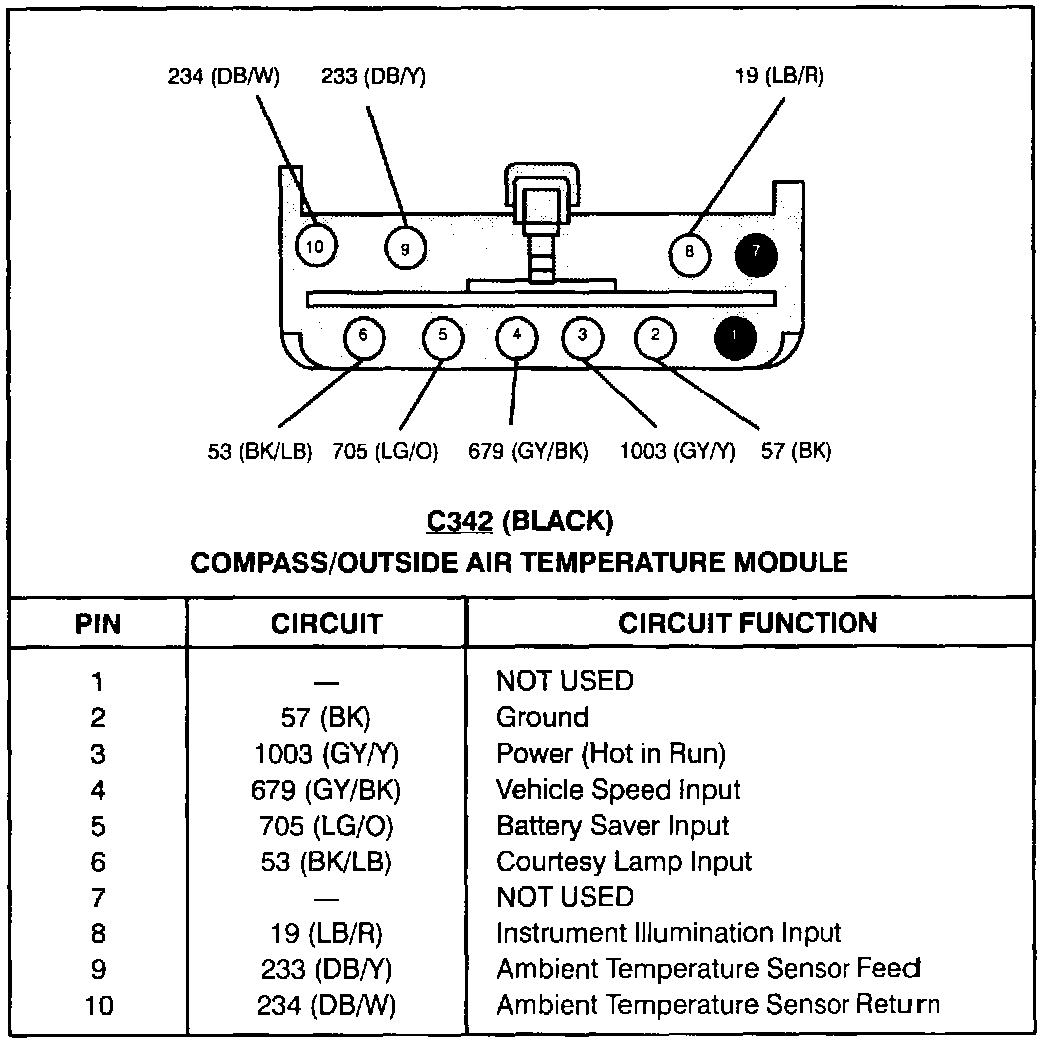

Compass/Outside Air Temperature Module:
