Explorer 2WD V8-302 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antitheft and Alarm Systems
>>
System Diagram
>>

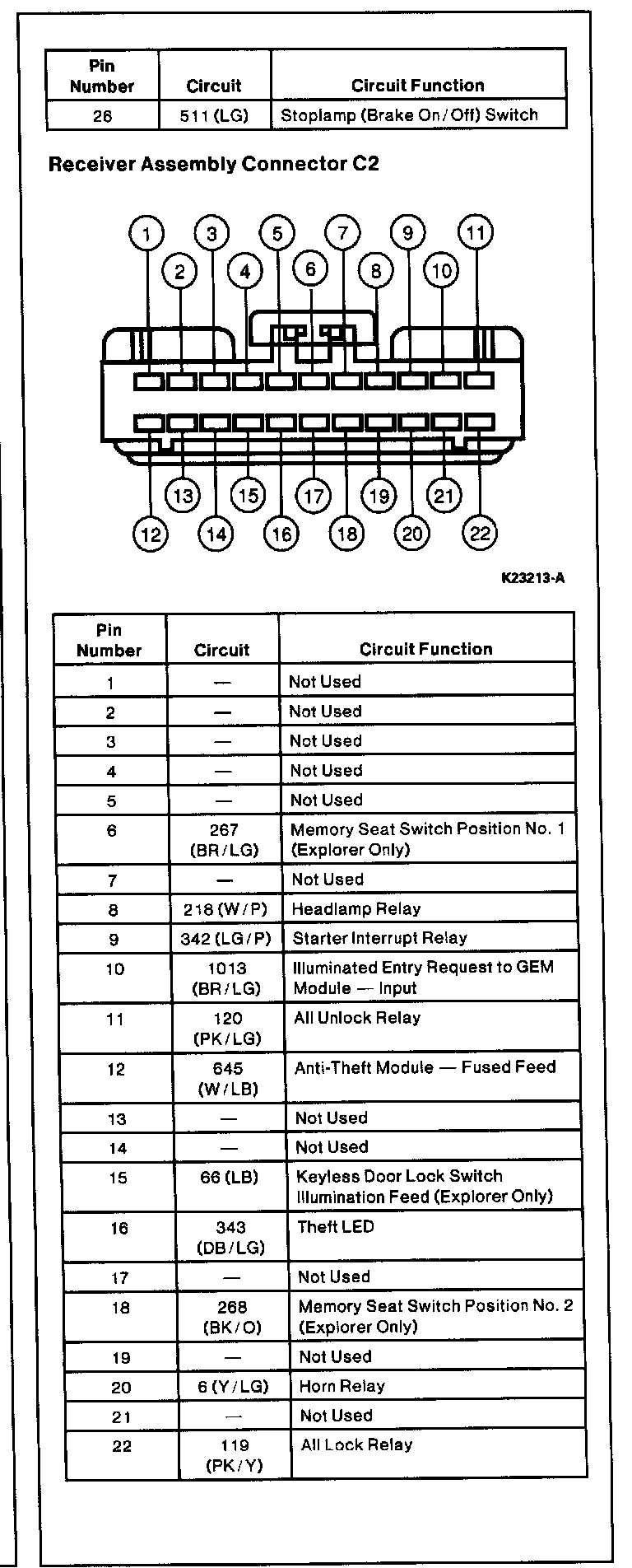

Receiver Assembly Connector C2
Receiver Assembly Connector C2
Receiver Assembly Connector C2:
