Ford Truck
>>
1995
>>
Windstar V6-232 3.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Transmission Position Sensor/Switch
>>
Diagrams
>>
Connector Views
Connector Views

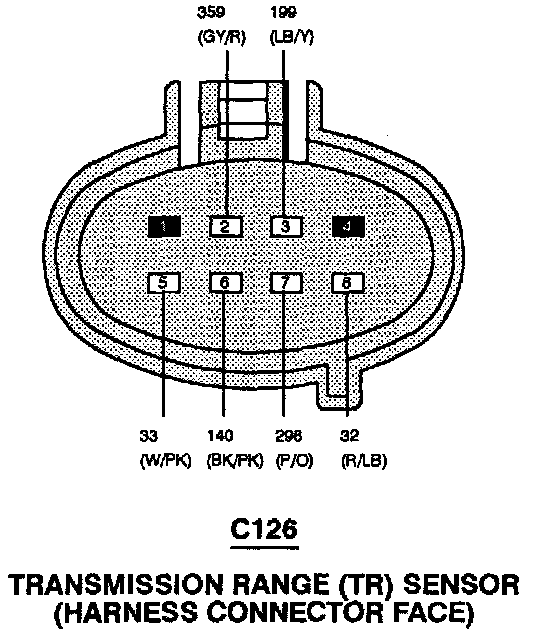

Transmission Range Sensor - Terminal Locations:
