Ford Truck
>>
1995
>>
Explorer 2WD V6-245 4.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Connector Views
Connector Views

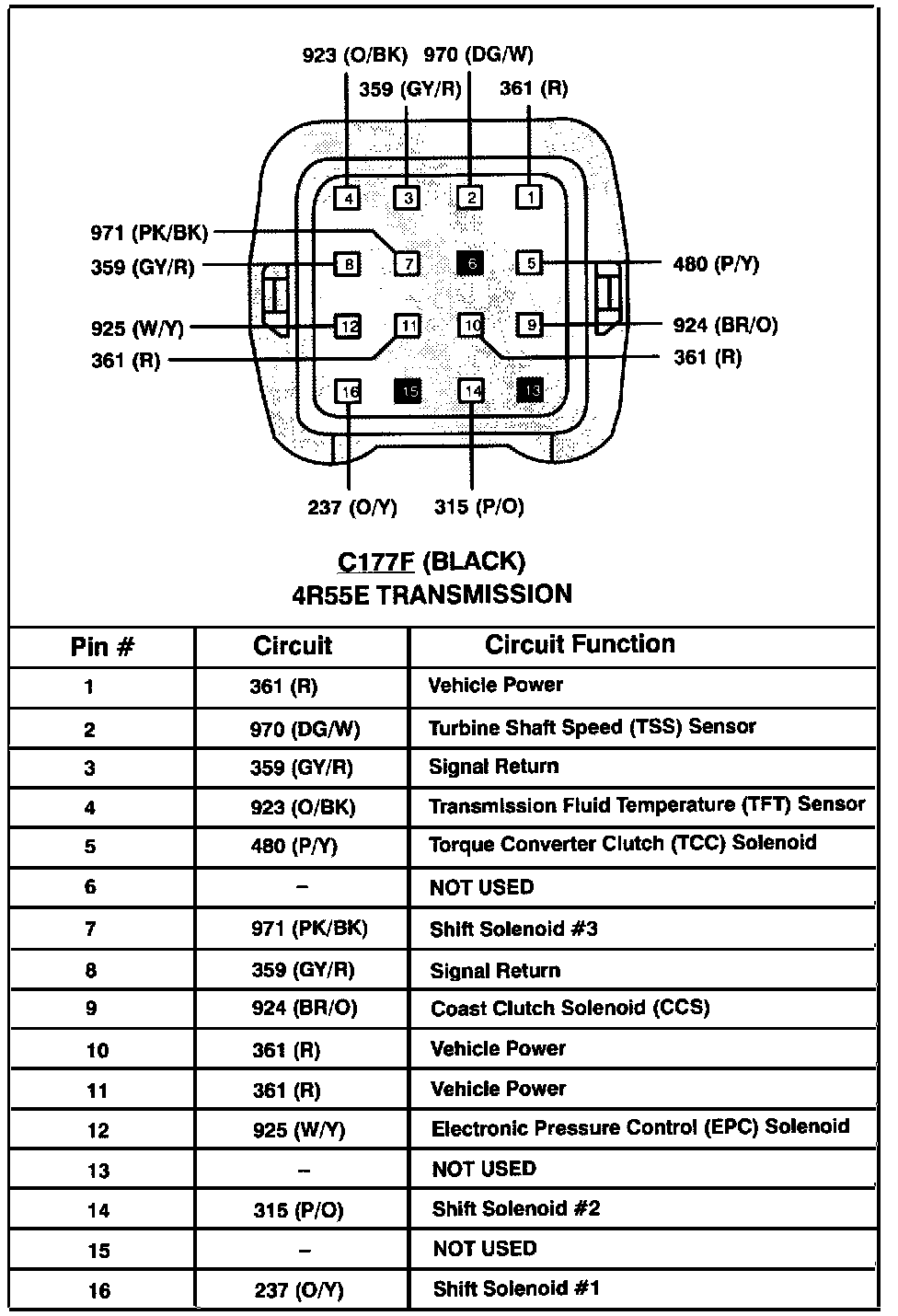

4R55E Transmission:
