Ford Truck
>>
1995
>>
Explorer 2WD V6-245 4.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
>>
Diagrams
>>
Connector Views
Connector Views

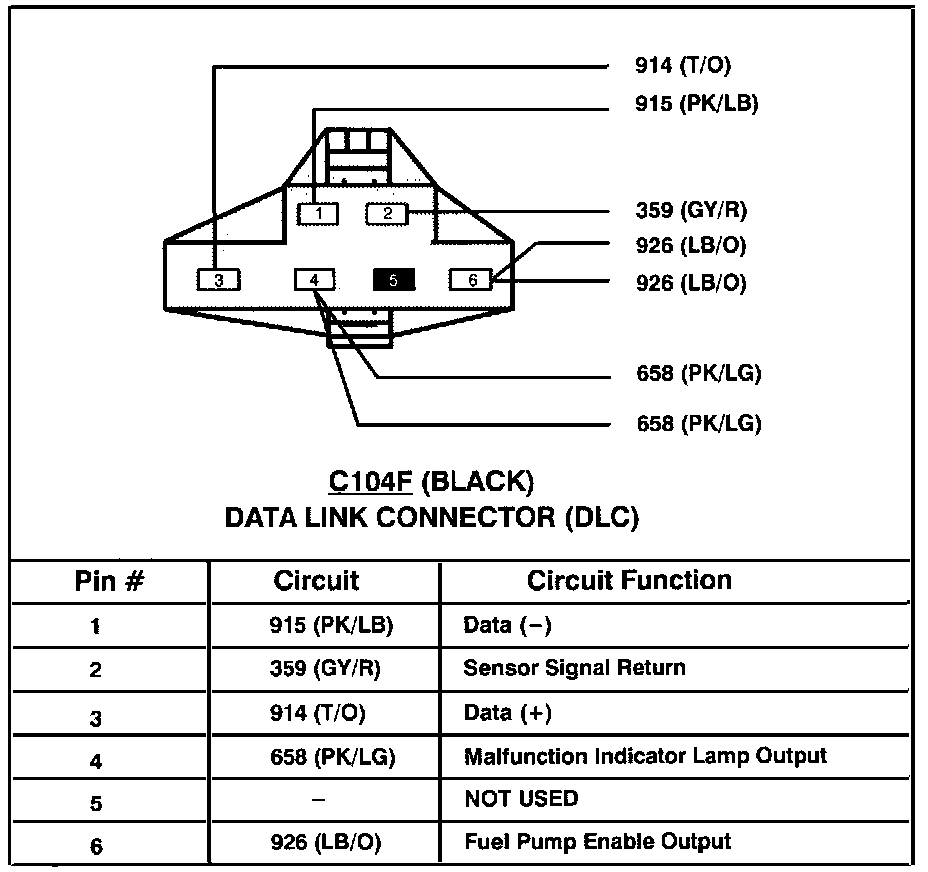

Data Link Connector (C104F):

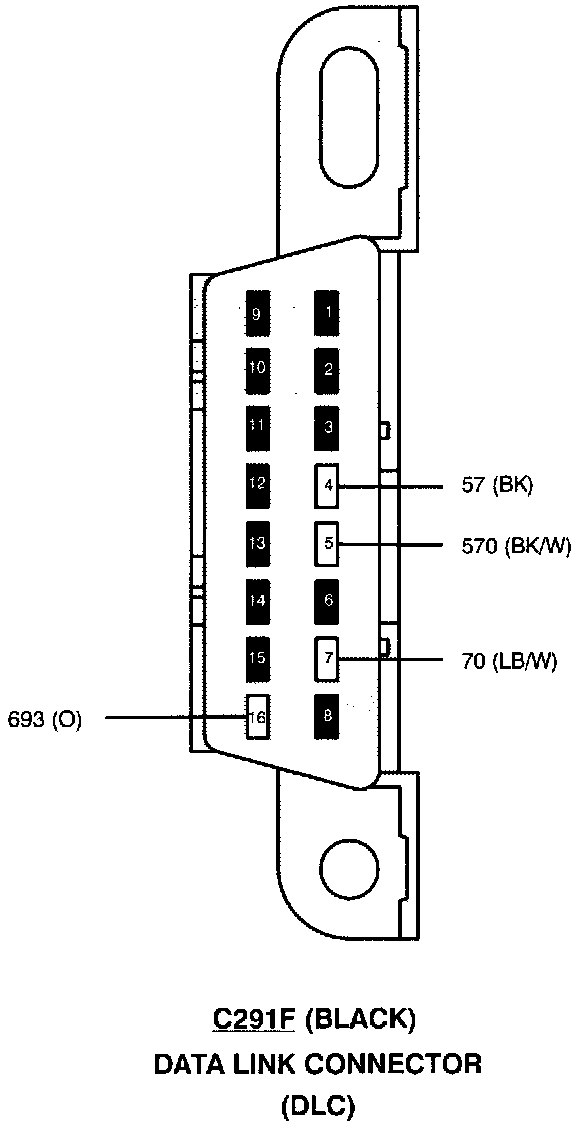

Data Link Connector (C291F):
