Ignition Control Module

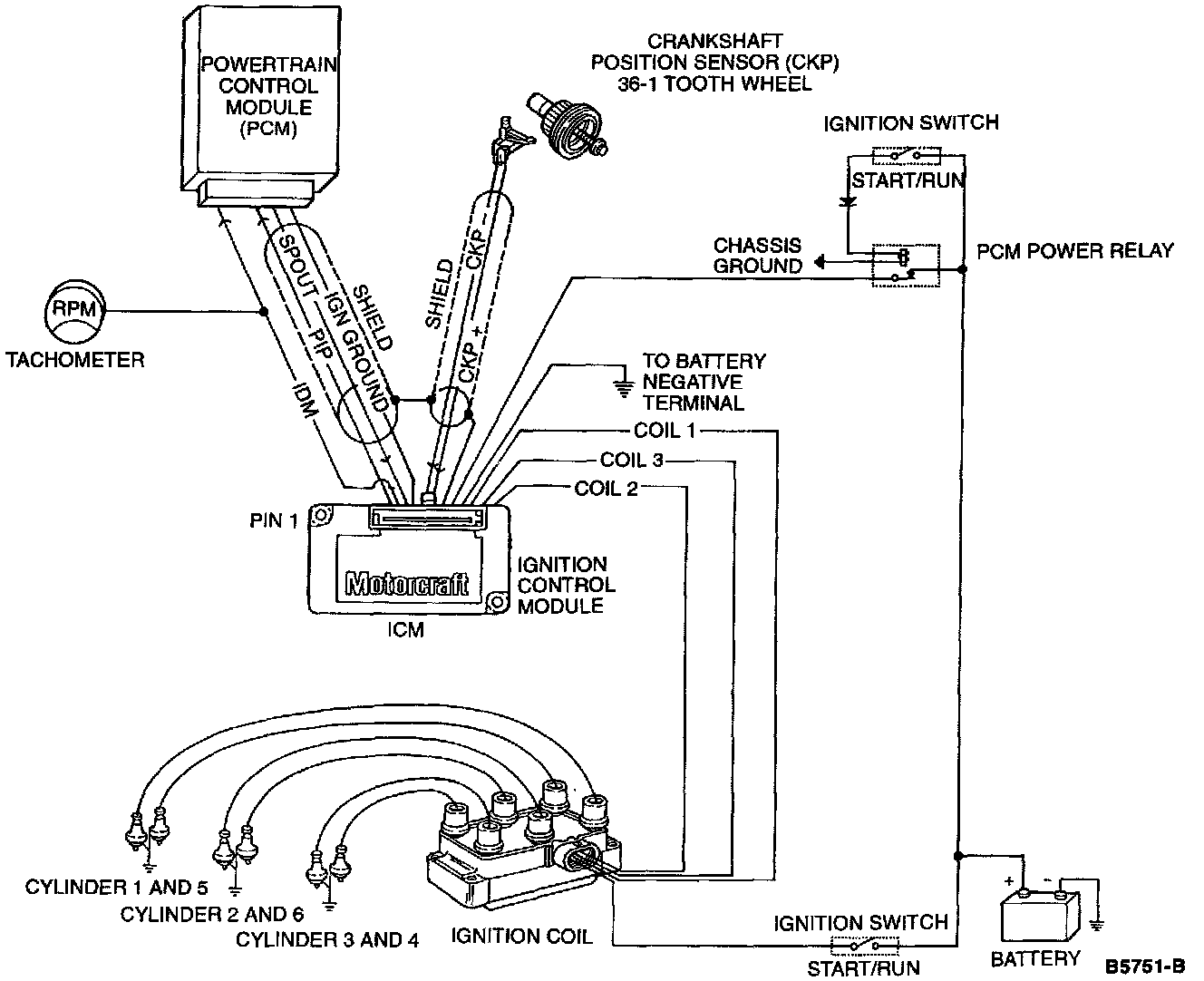

Ignition System Diagram:
Ignition System Diagram

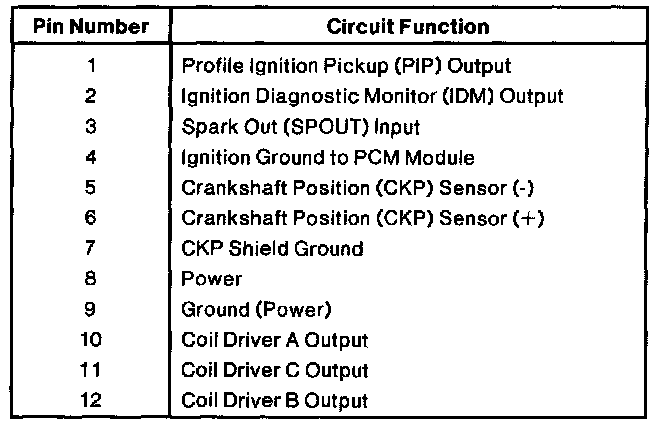

Ignition Control Module Pinout:
Ignition Control Module
Pinout
