Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Ford Truck
>>
1994
>>
Ranger 2WD V6-245 4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

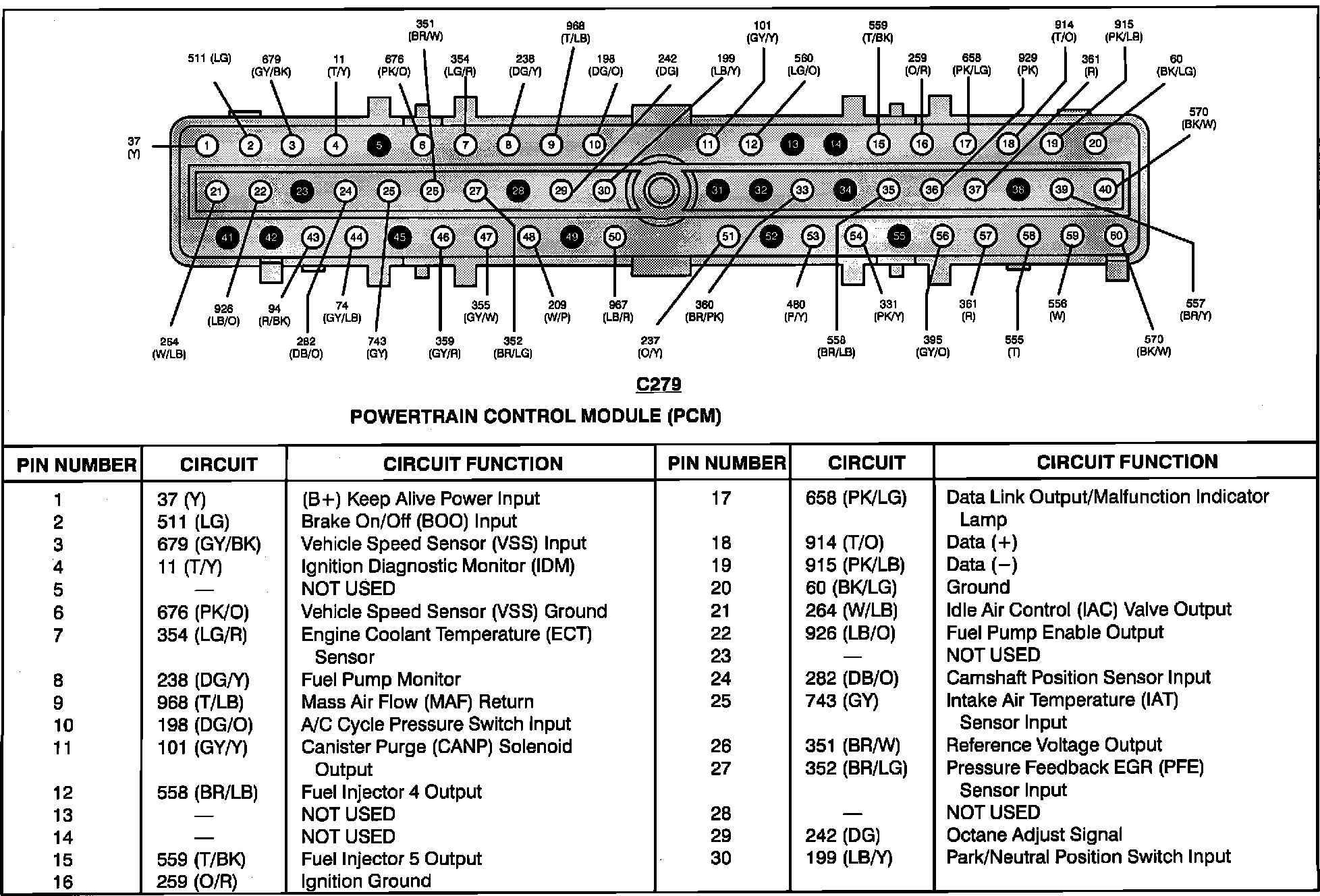

Engine Control Module
>>
With California Emissions
With California Emissions

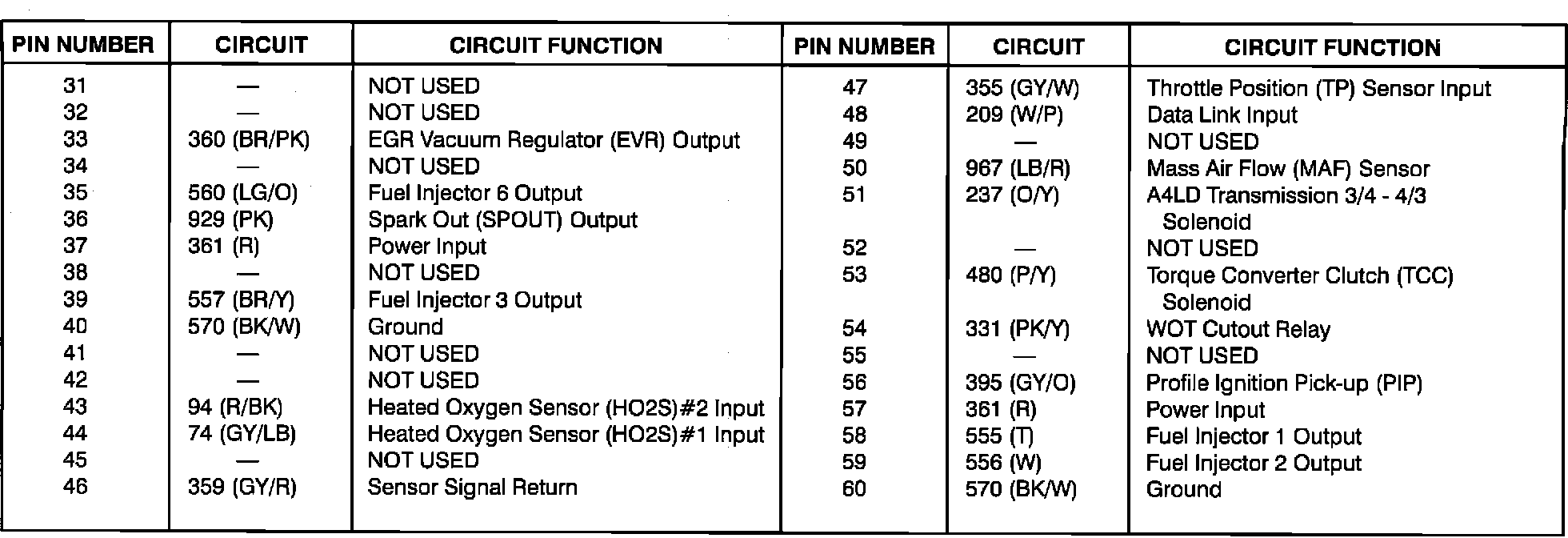

Powertrain Control Module (PCM)/Circuit Function:
Powertrain Control Module (PCM) Circuit Function:
