Control Module, Transfer Case
Control Module, Transfer Case

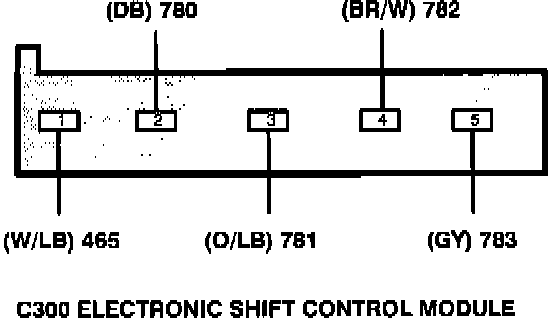

Electric Shift Control Module C300:

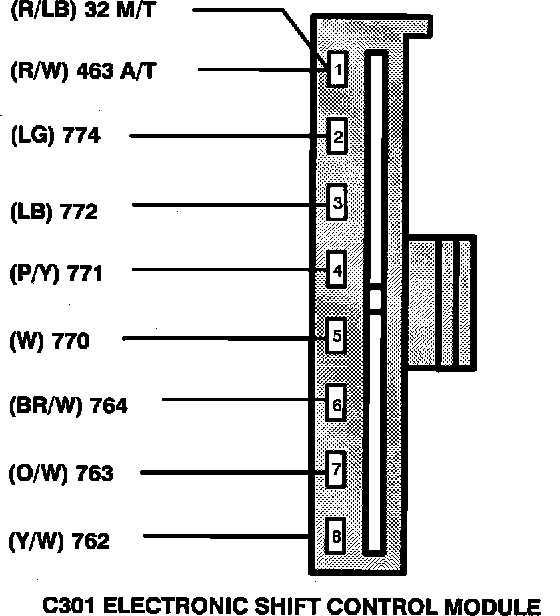

Electronic Shift Control Module C301:

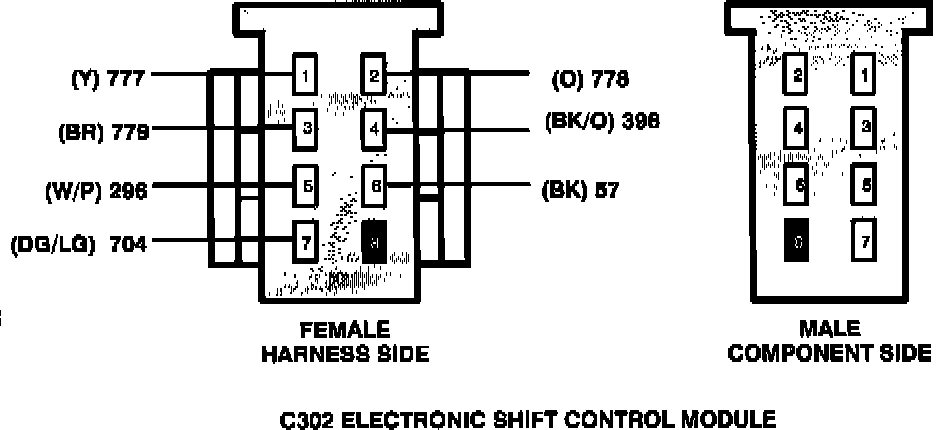

Electronic Shift Control Module C302:
