Bronco Full Size V8-351 5.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transfer Case
>>
Control Module, Transfer Case
Control Module, Transfer Case

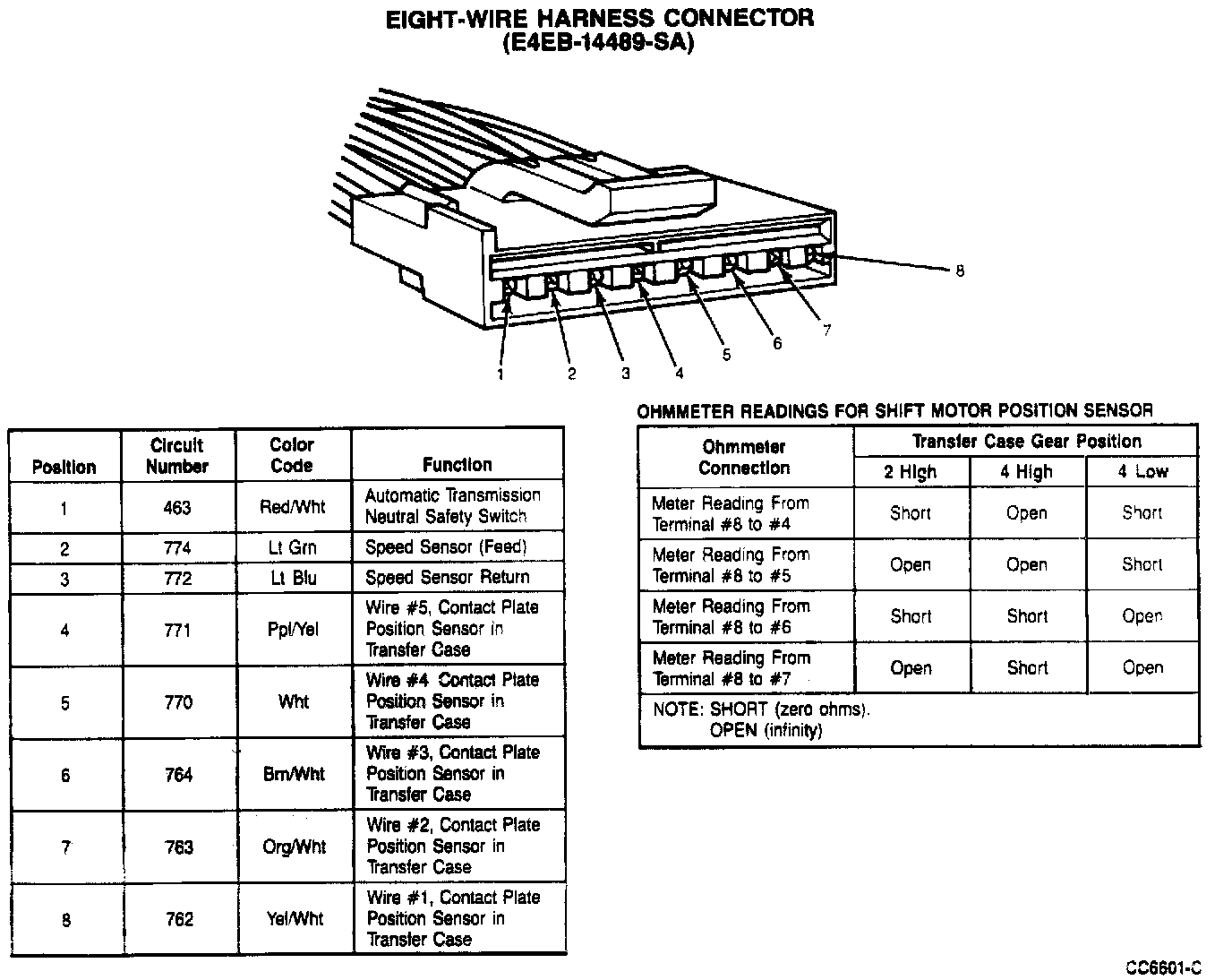

Eight-Wire Harness Connector:

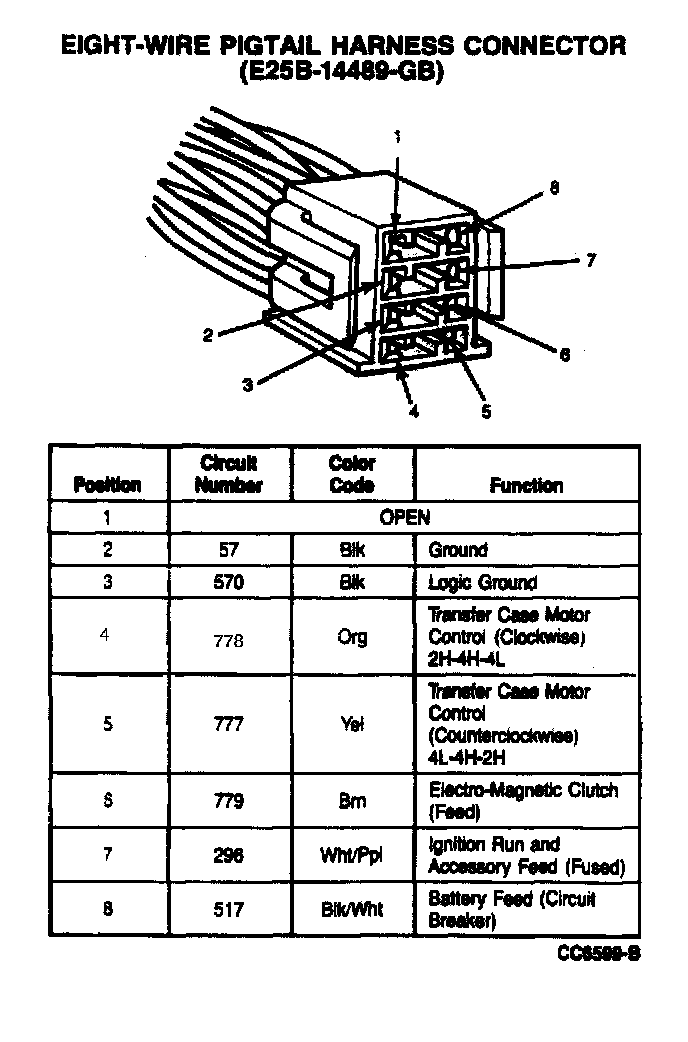

Eight-Wire Pigtail Harness Connector:
Five-Wire Harness Connector:
