Home >> Ford Truck >> 1992 >> F 250 2WD Pickup V8-7.3L DSL >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Control Module >> Diagrams

Wiper Control Module: Diagrams

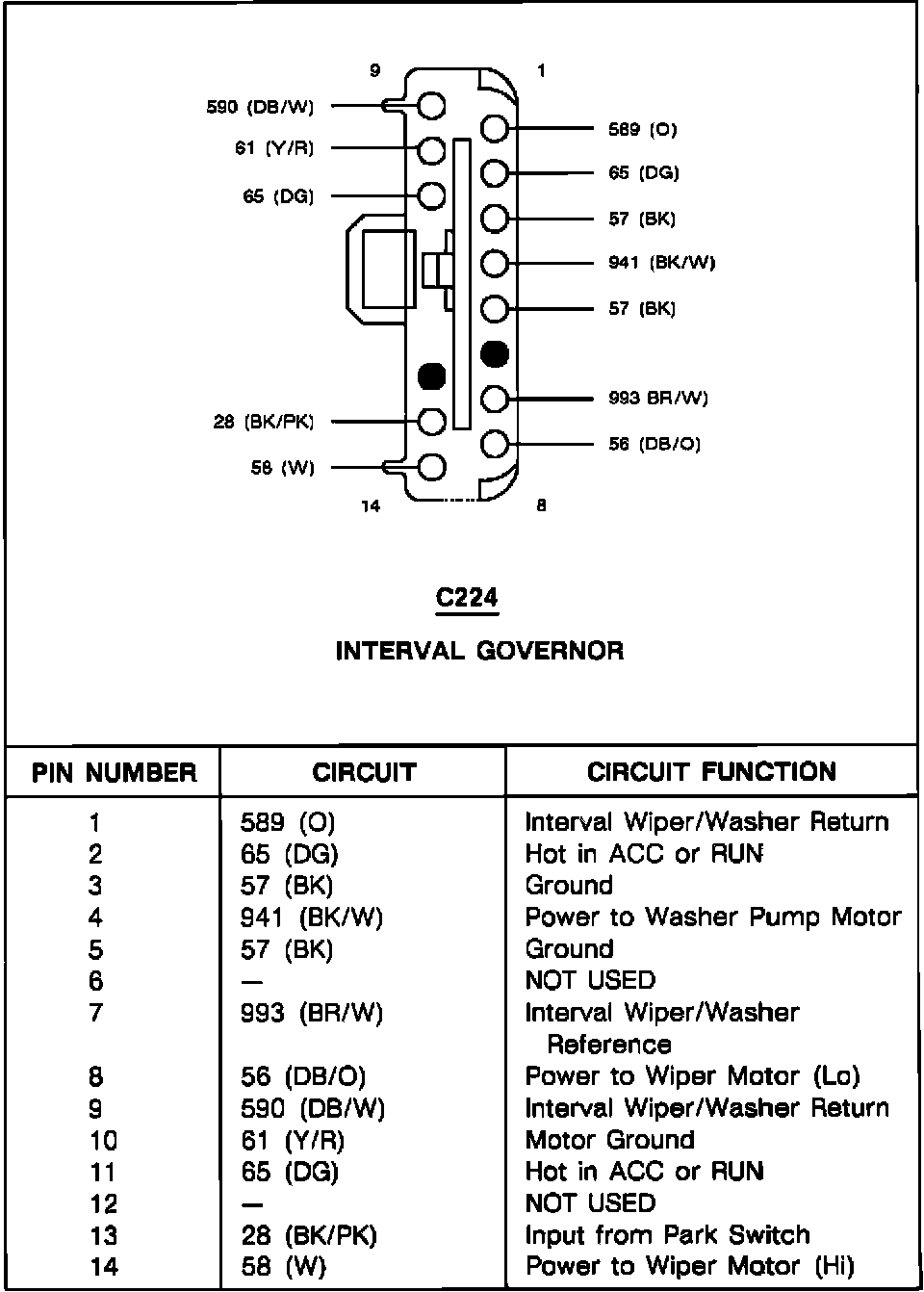

Connector Face/Pinout Charts:
