Ford Truck
>>
1992
>>
F 250 2WD Pickup V8-7.3L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>

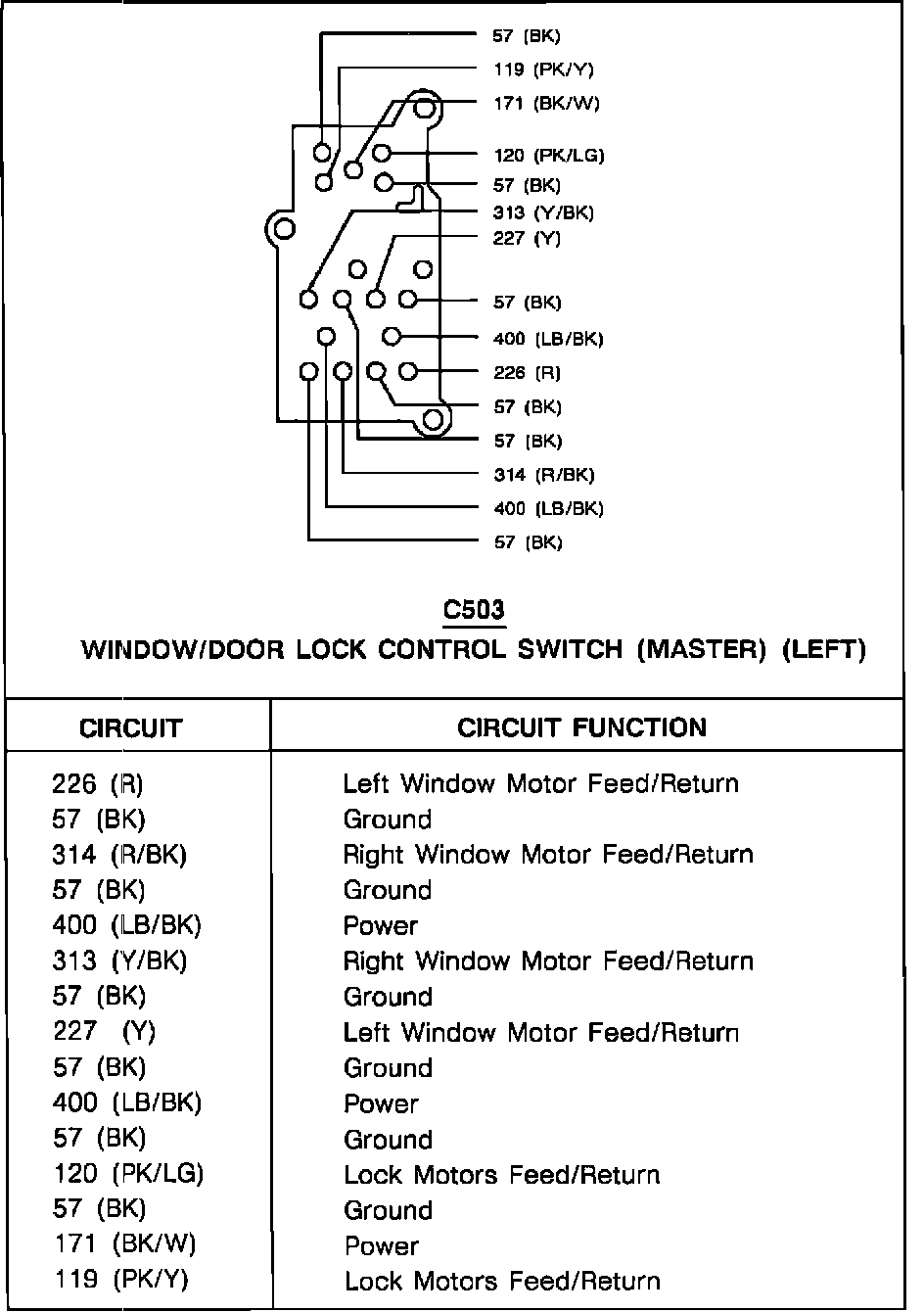

Master Window Control Switch
Master Window Control Switch
Connector Face/Pinout Charts:
