Ford Truck
>>
1992
>>
E 250 Van V8-7.3L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Alarm Module, (Vehicle Antitheft)
>>

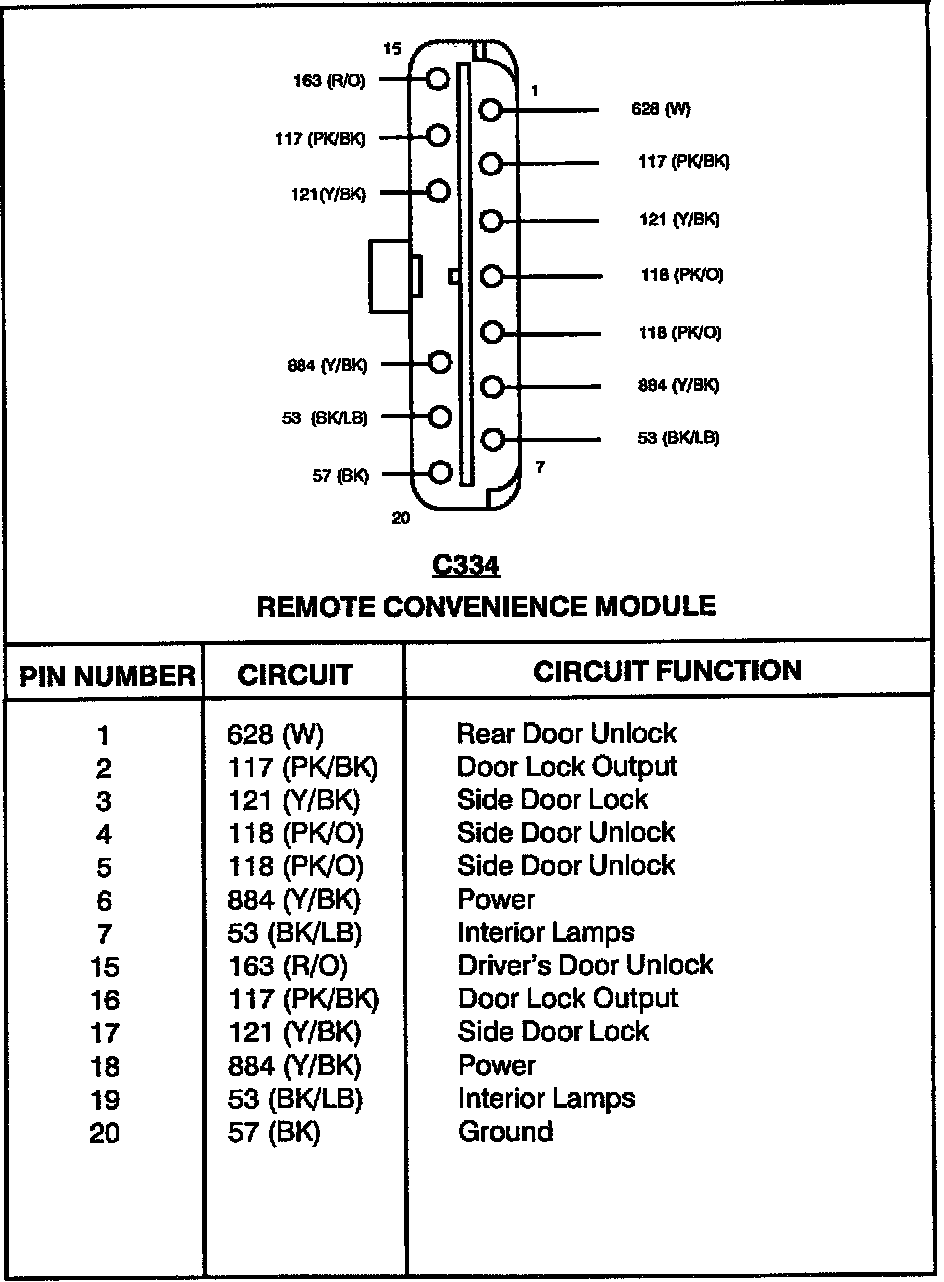

Remote Convenience Module

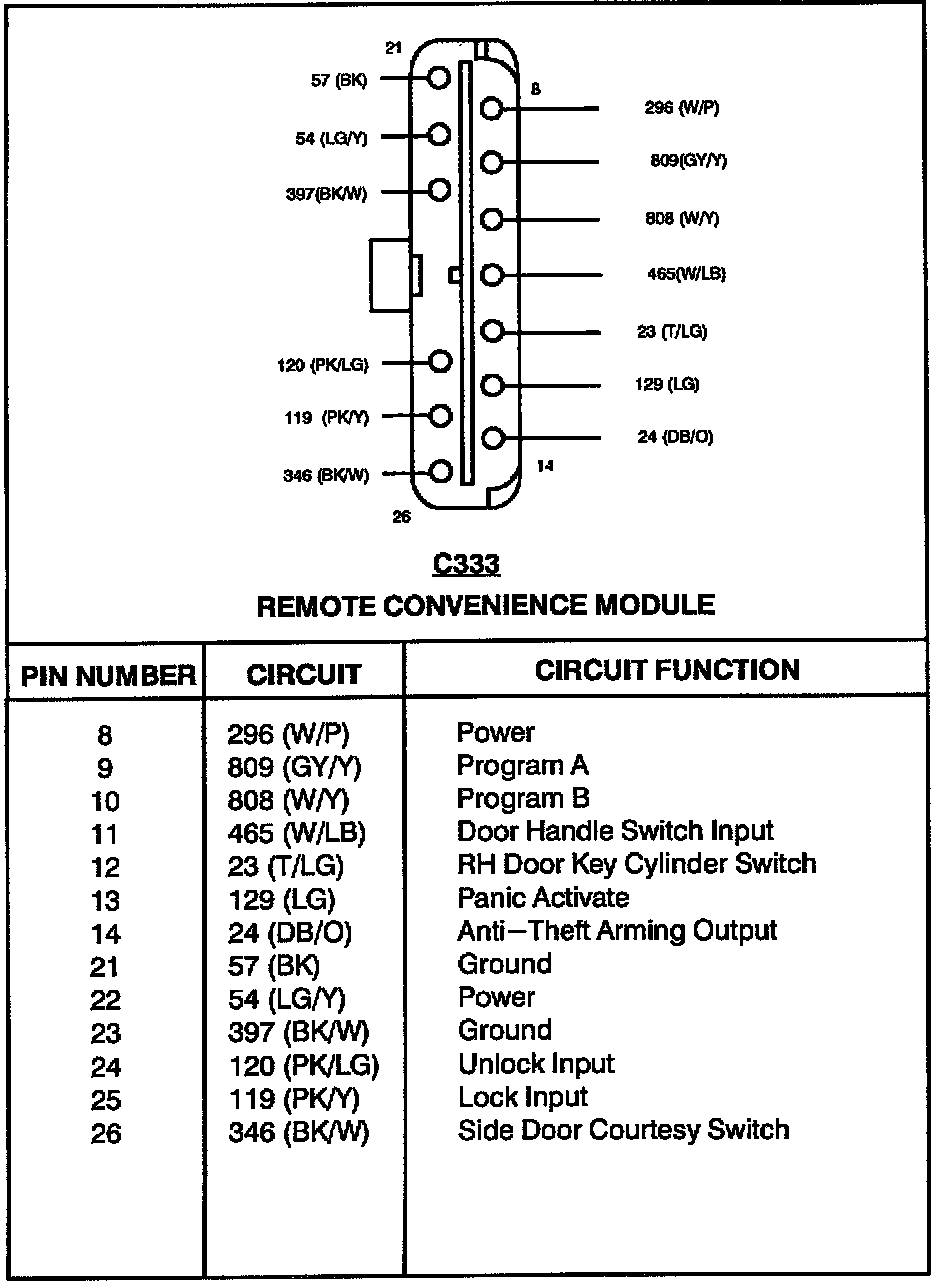

Remote Convenience Module
Connector Faces/Pinout Charts:
Connector Faces/Pinout Charts:
