Ford Truck
>>
1991
>>
Ranger 2WD V6-245 4.0L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Compressor HVAC
>>
Service and Repair
>>
Compressor
Compressor

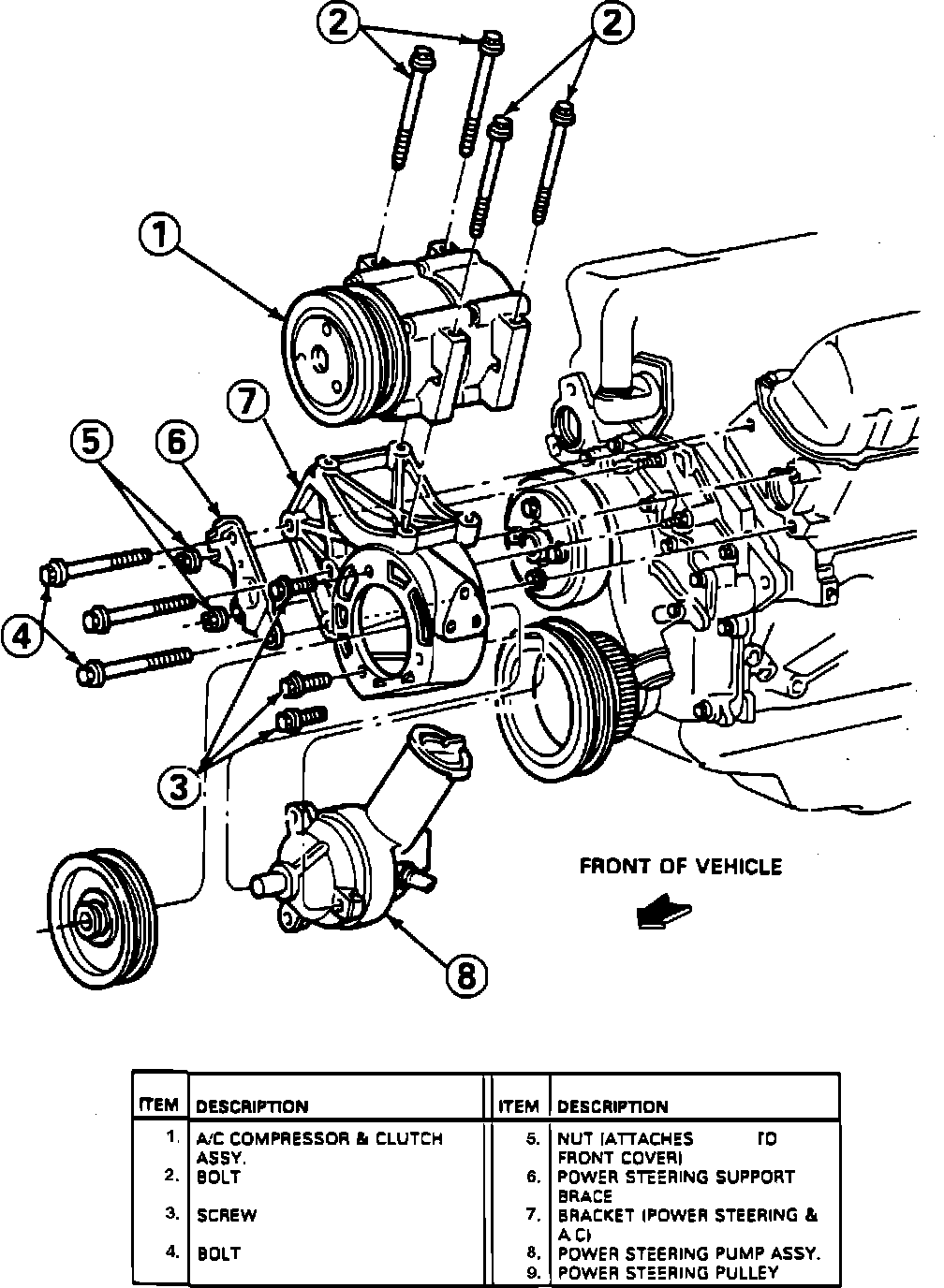

Fig. 36 Compressor removal:
Refer to
Fig. 36
for compressor replacement.
