Home
>>
Eagle
>>
1991
>>
Premier V6-182 3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Engine Control Module
>>
Late Models
Late Models

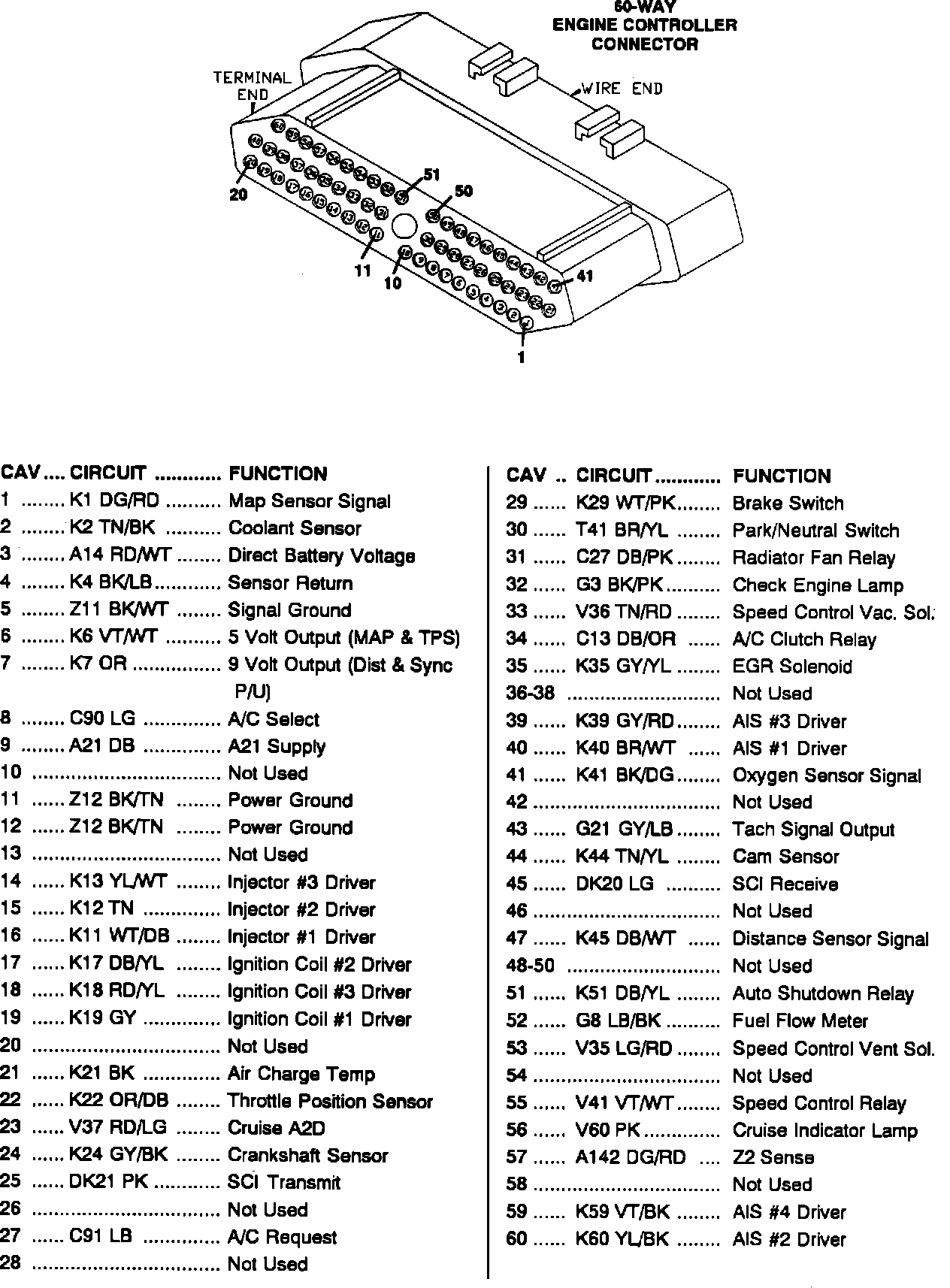

Controller Connector Pinnout Identification:
