Eagle
>>
1991
>>
Premier V6-182 3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Engine Control Module
>>
Early Models
Early Models

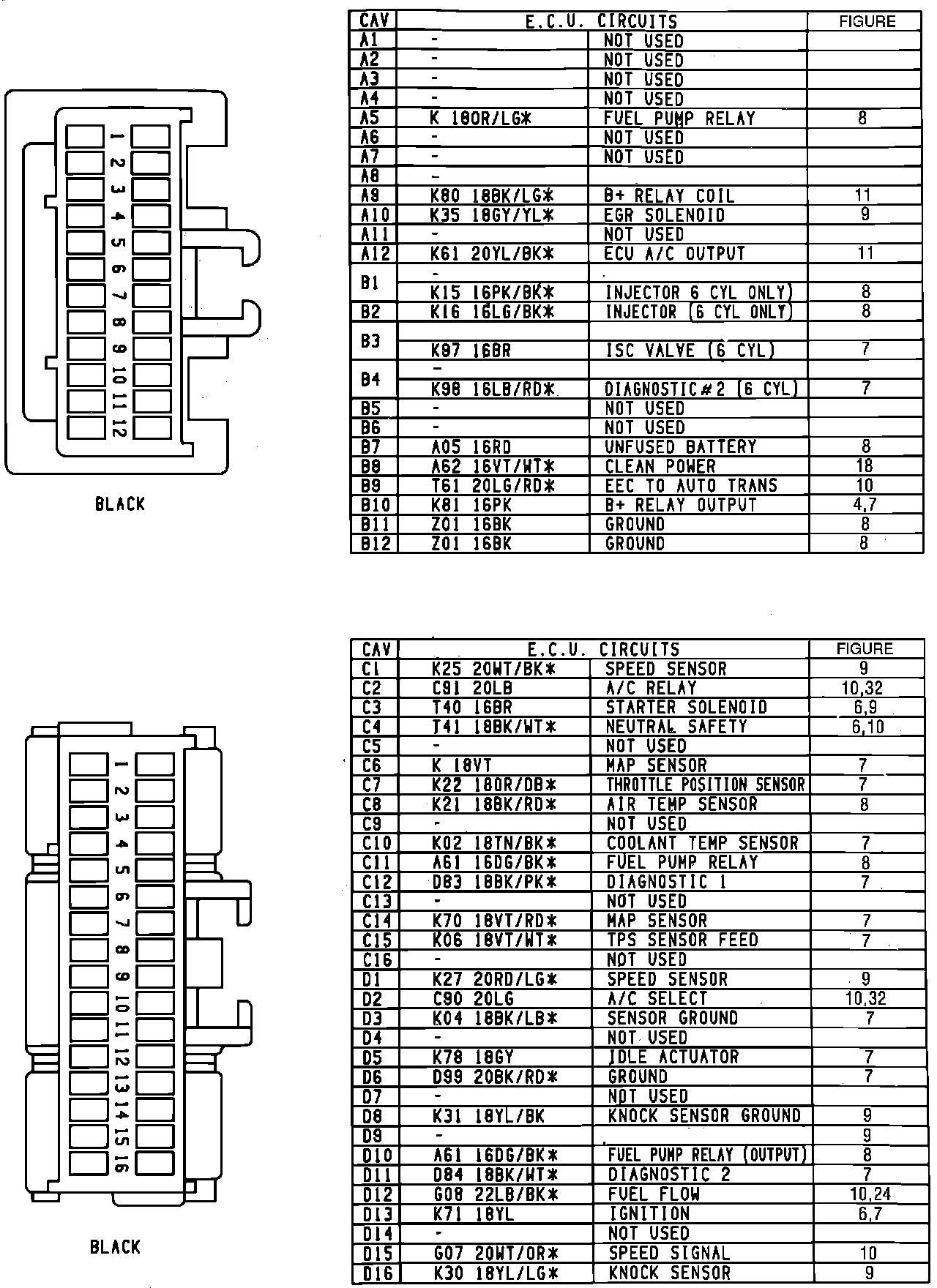

ECU. Connectors:
