Eagle
>>
1991
>>
Premier V6-182 3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Control Module
>>
Early Production
Early Production

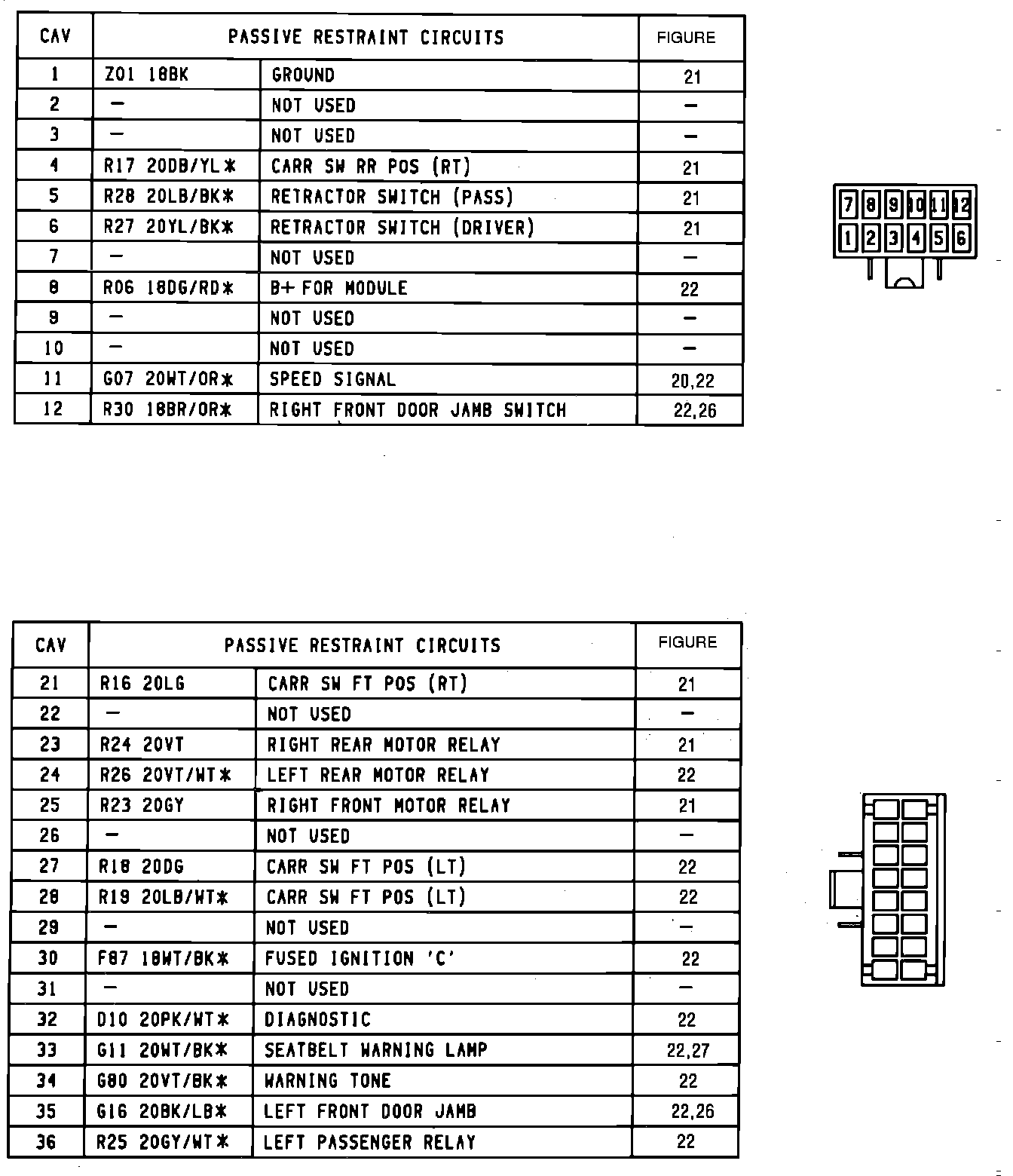

Passive Restraint Module Connector:
