Home
>>
Dodge
>>
2005
>>
SRT-4 L4-2.4L Turbo VIN S
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>

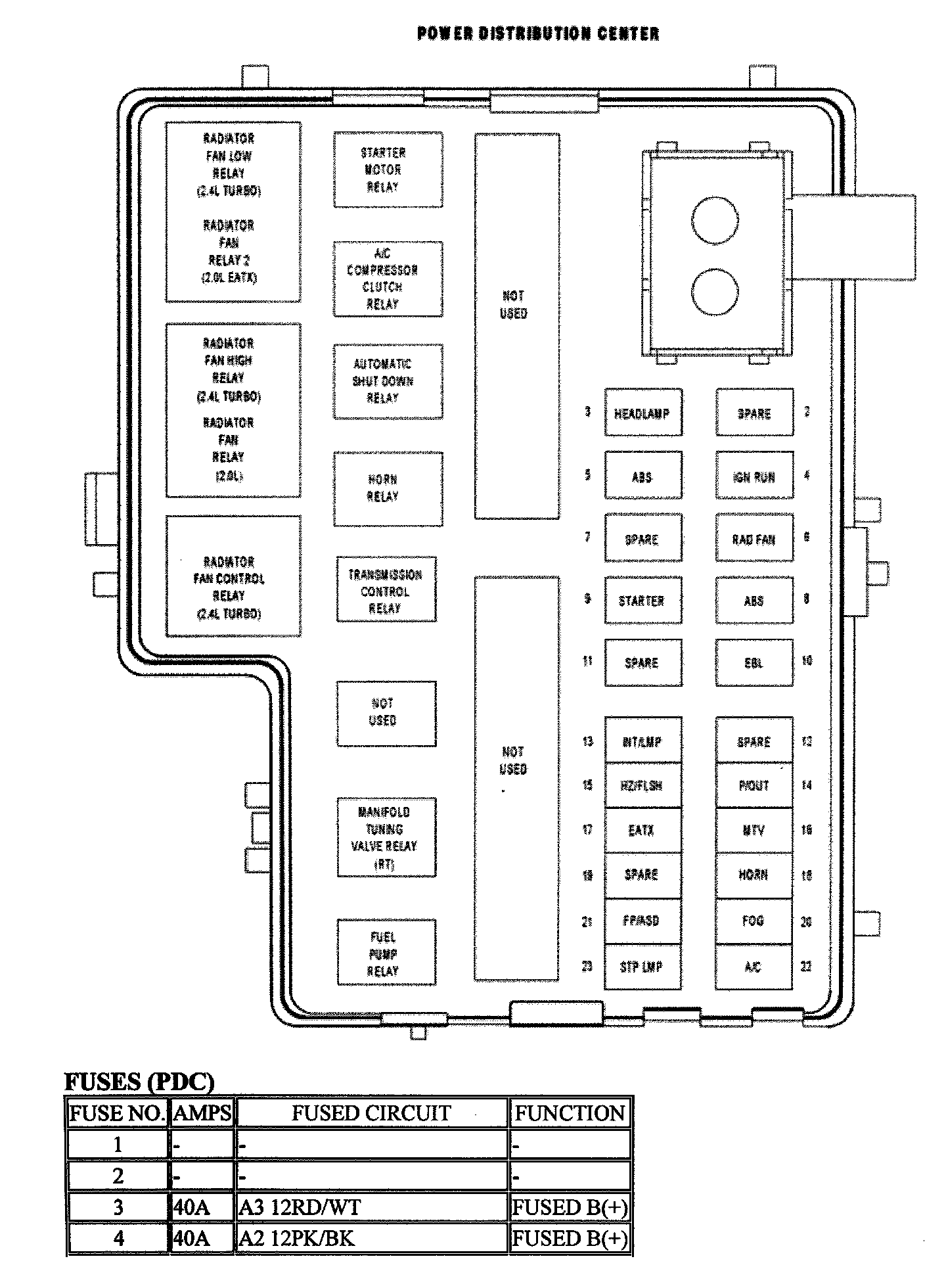

Power Distribution Center
Power Distribution Center

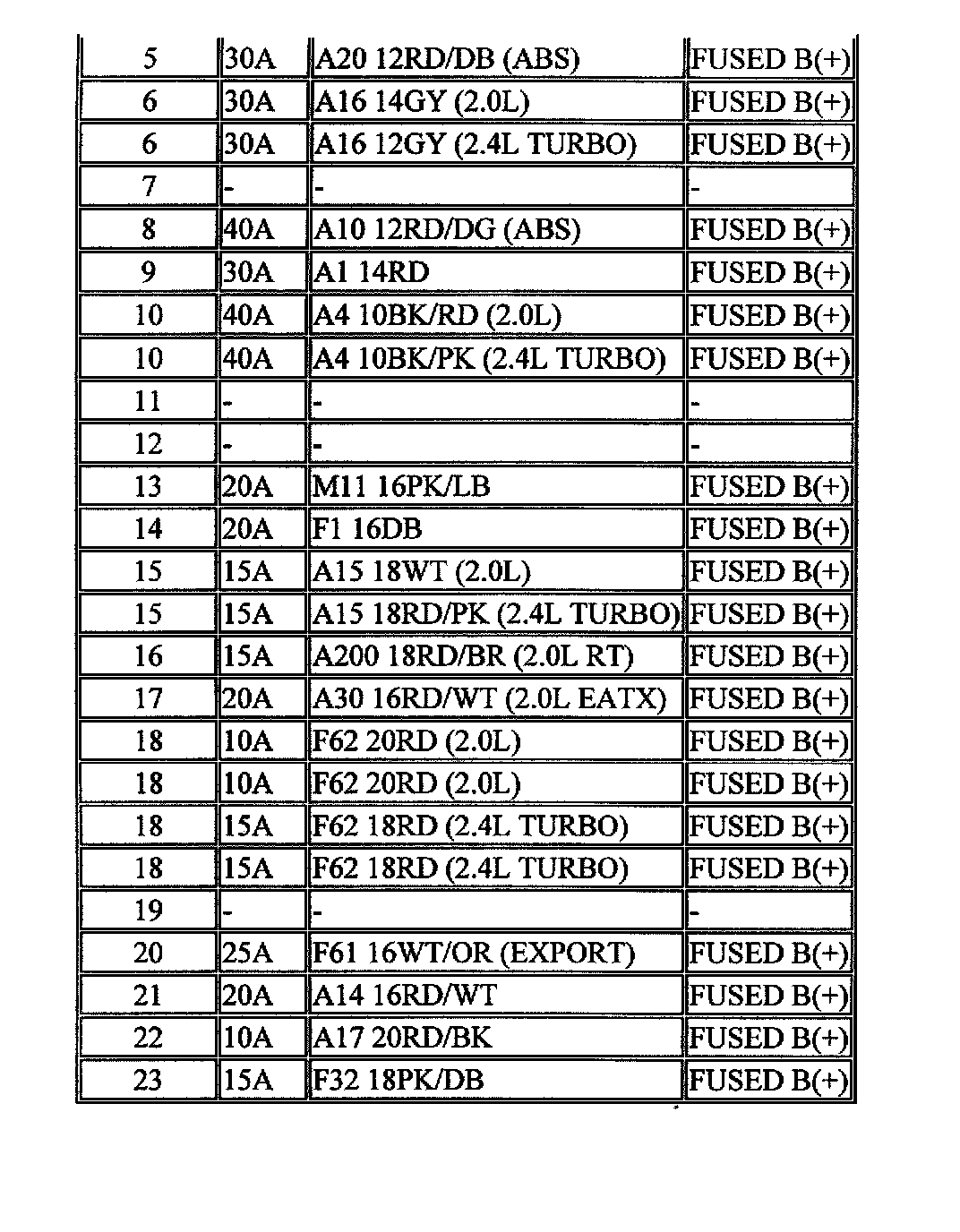

Power Distribution Center:
