Home >> Dodge >> 2005 >> Magnum V6-2.7L VIN R >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Accelerator Pedal Position Sensor >> Diagrams

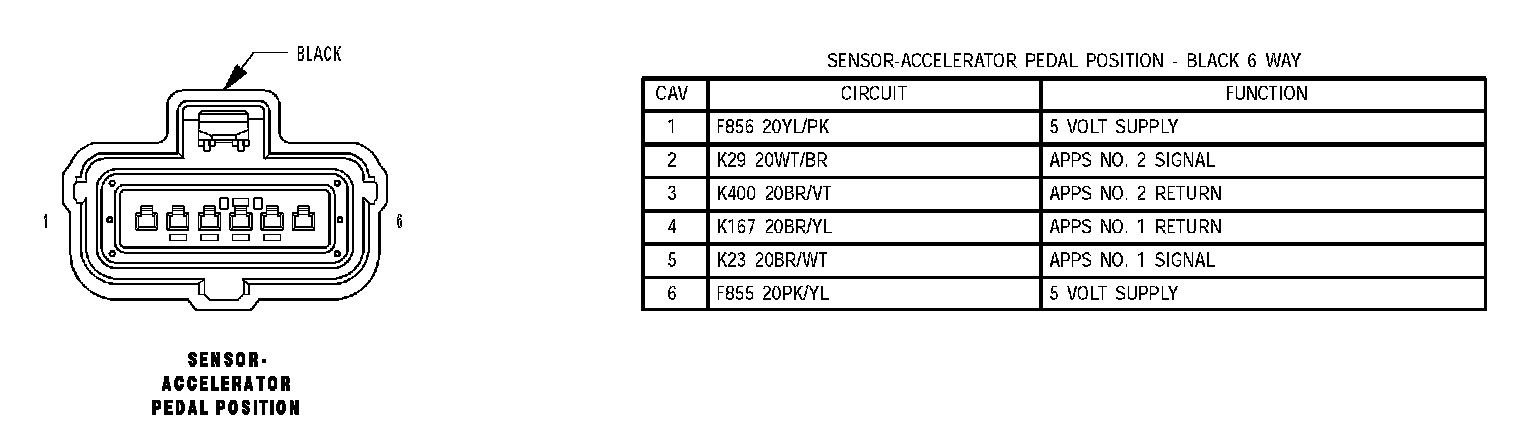

Accelerator Pedal Position Sensor: Diagrams

Sensor - Accelerator Pedal Position:
