No Start Test
>>
No Start (NS) Tests
>>

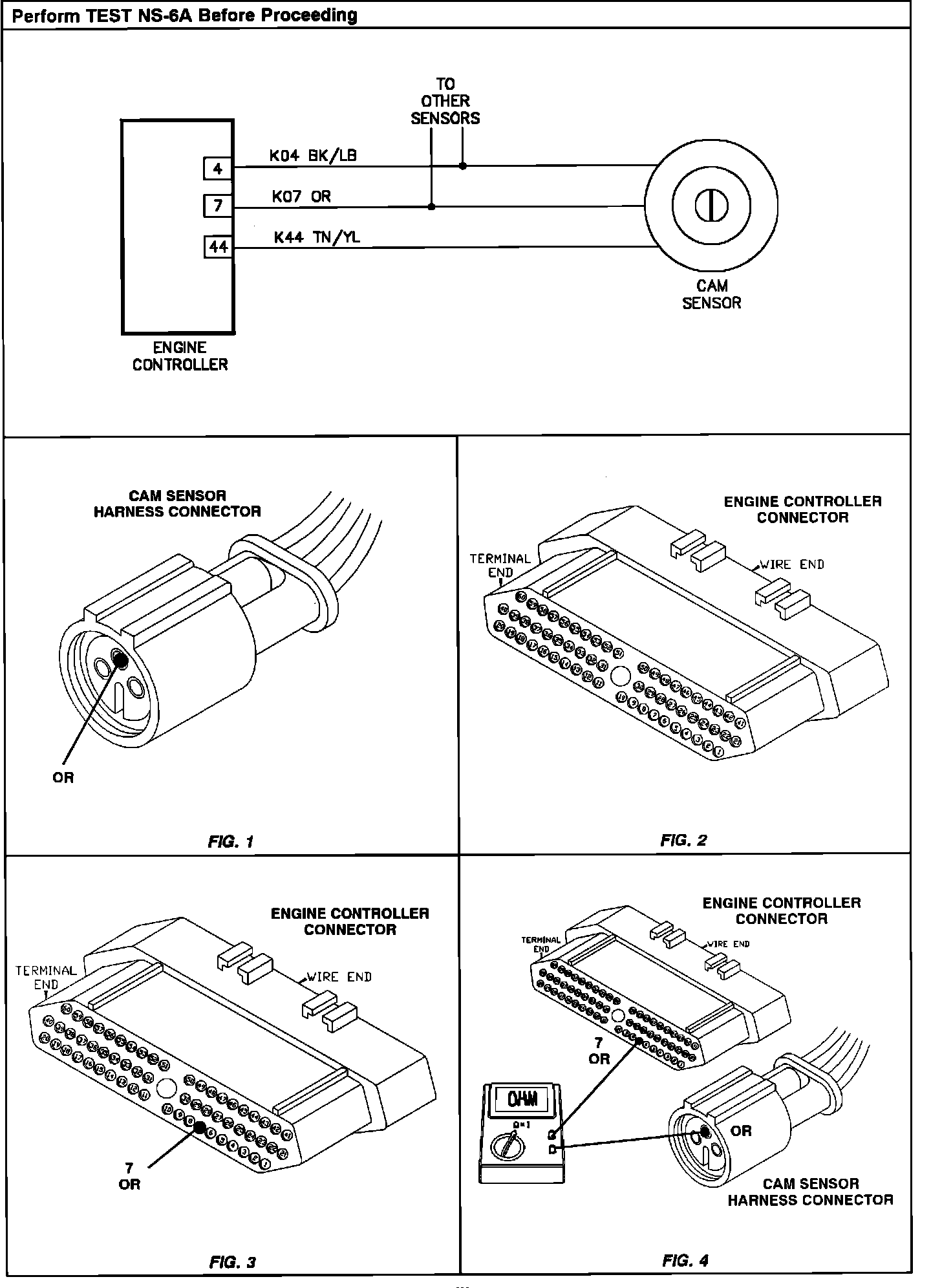

NS-6B Checking DIS Signal Status & DIS Crank Sensor
NS-6B Checking DIS Signal Status & DIS Crank Sensor

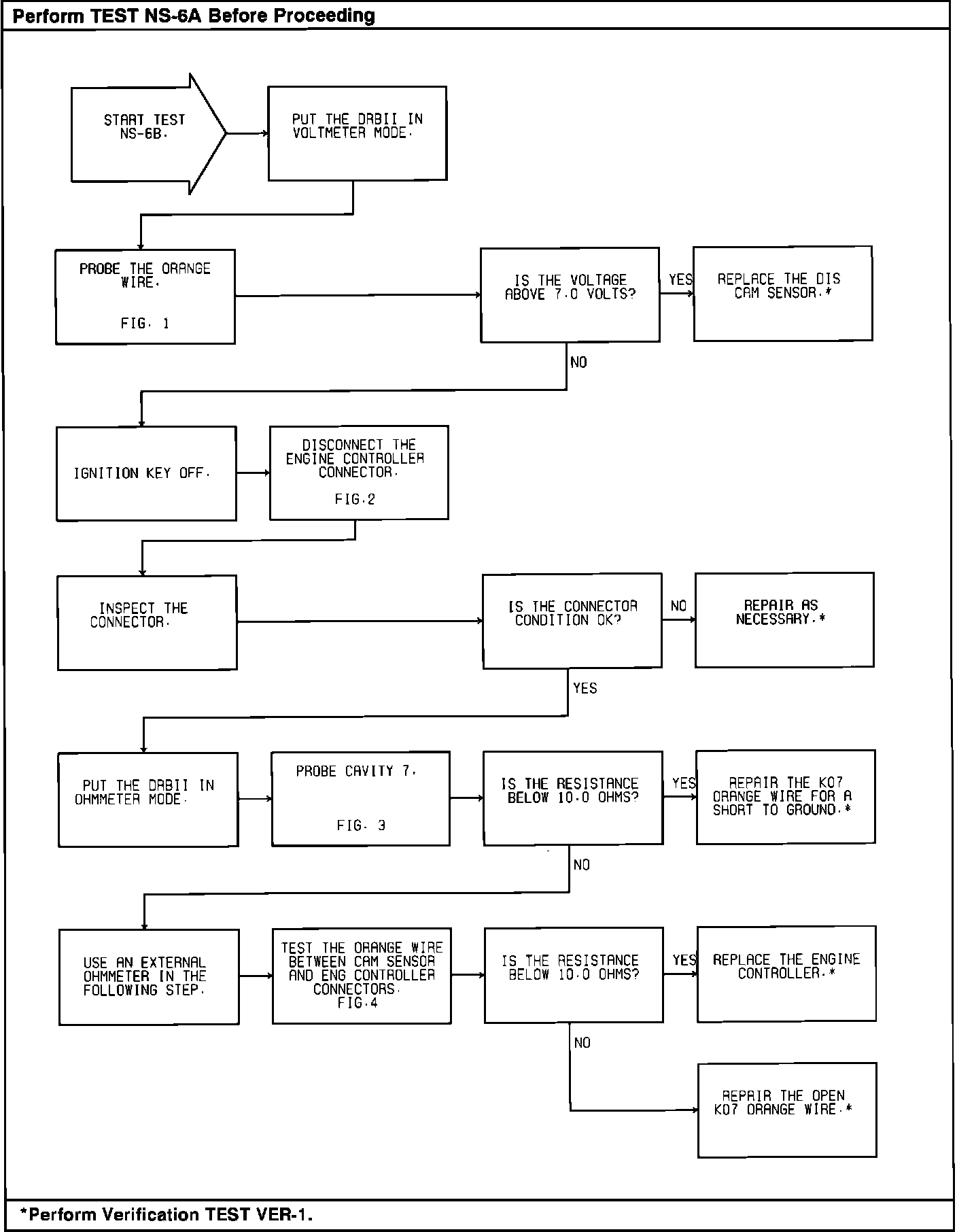

Test NS-6B - Checking DIS Camshaft Signal:
Test NS-6B - Checking DIS Camshaft Signal:
