Engine Control Module

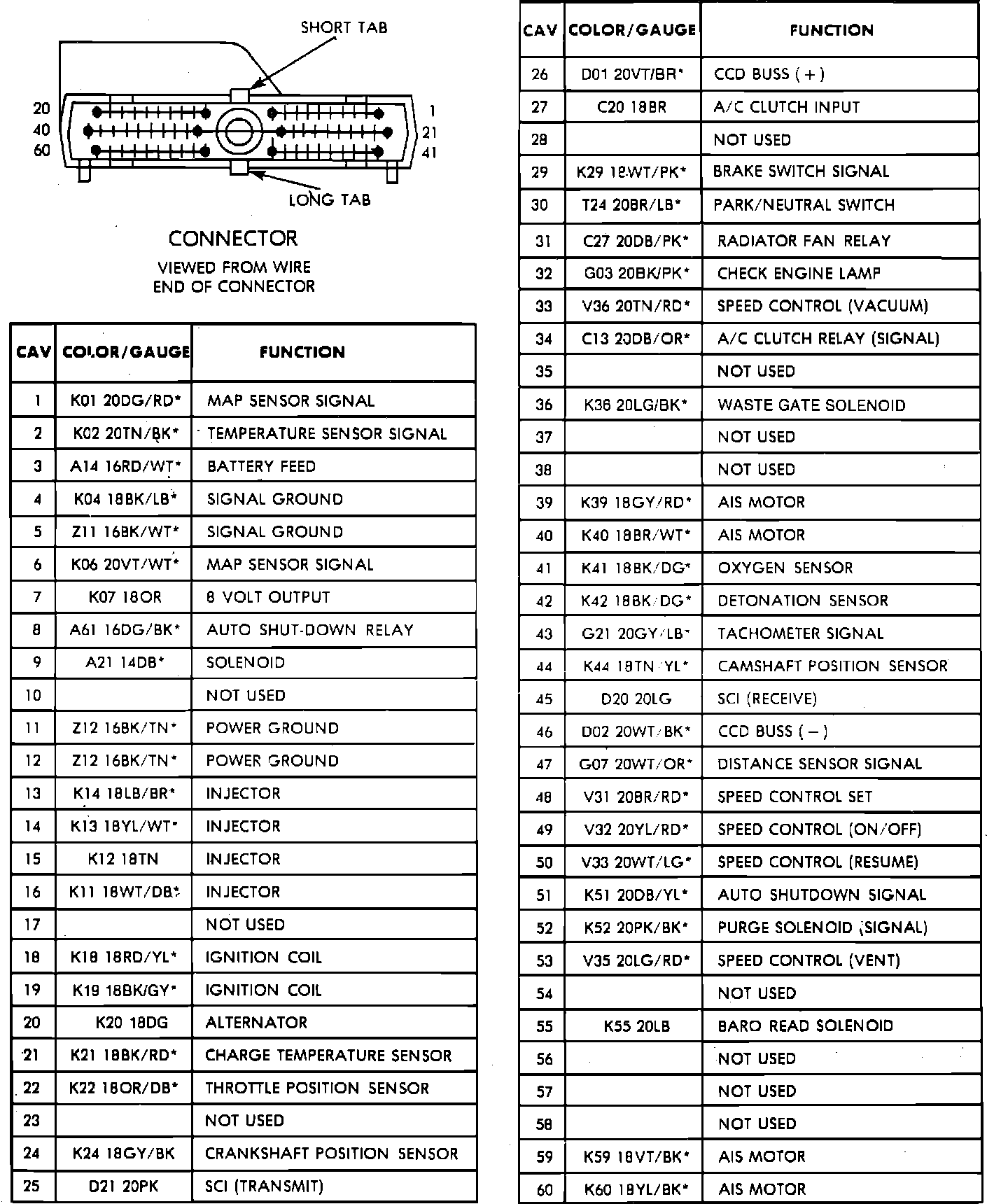

60-Way Connector Pinnout Identification:

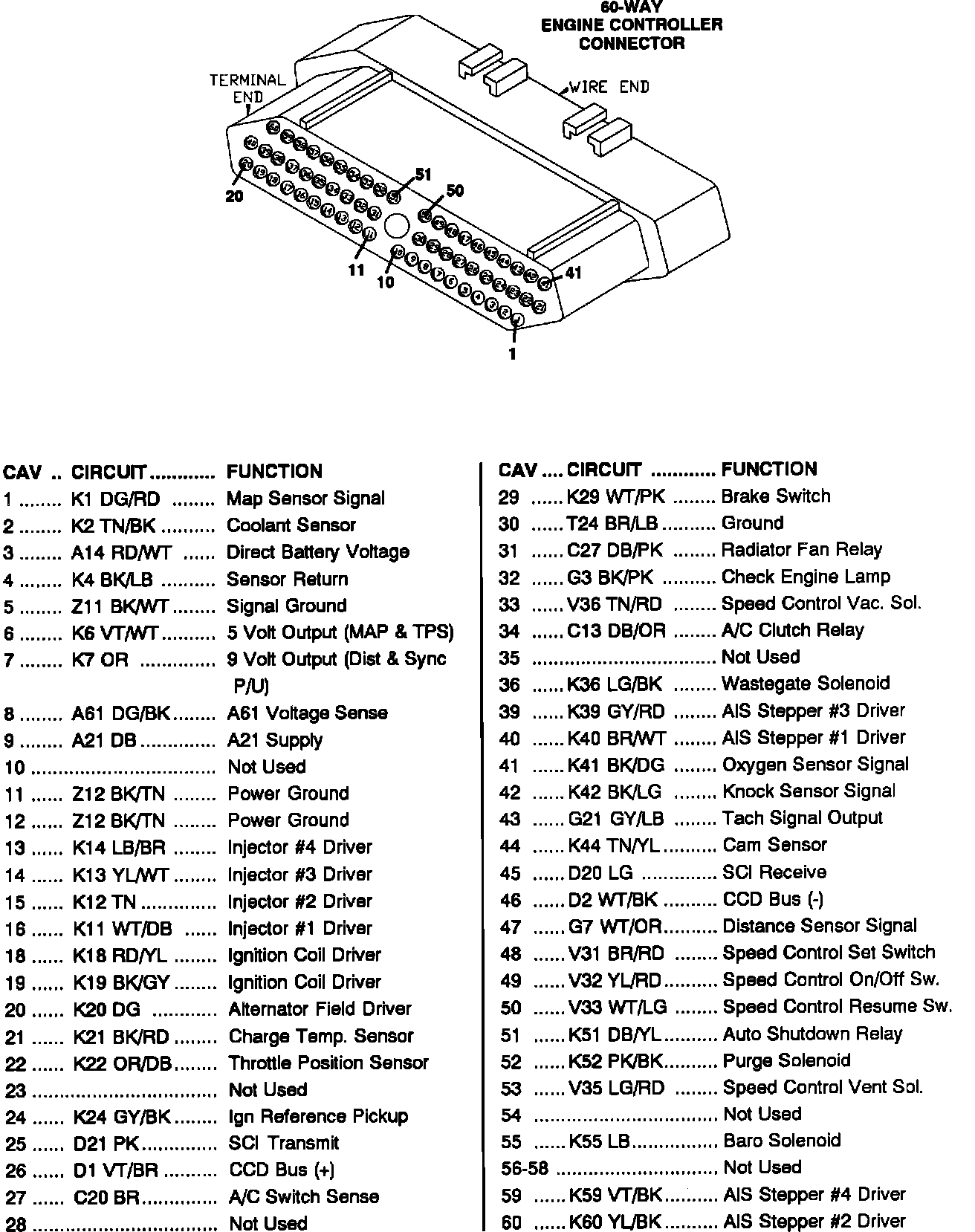

Single Board Engine Controller Connector (Turbo III):
