Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Dodge
>>
1989
>>
Lancer L4-153 2.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

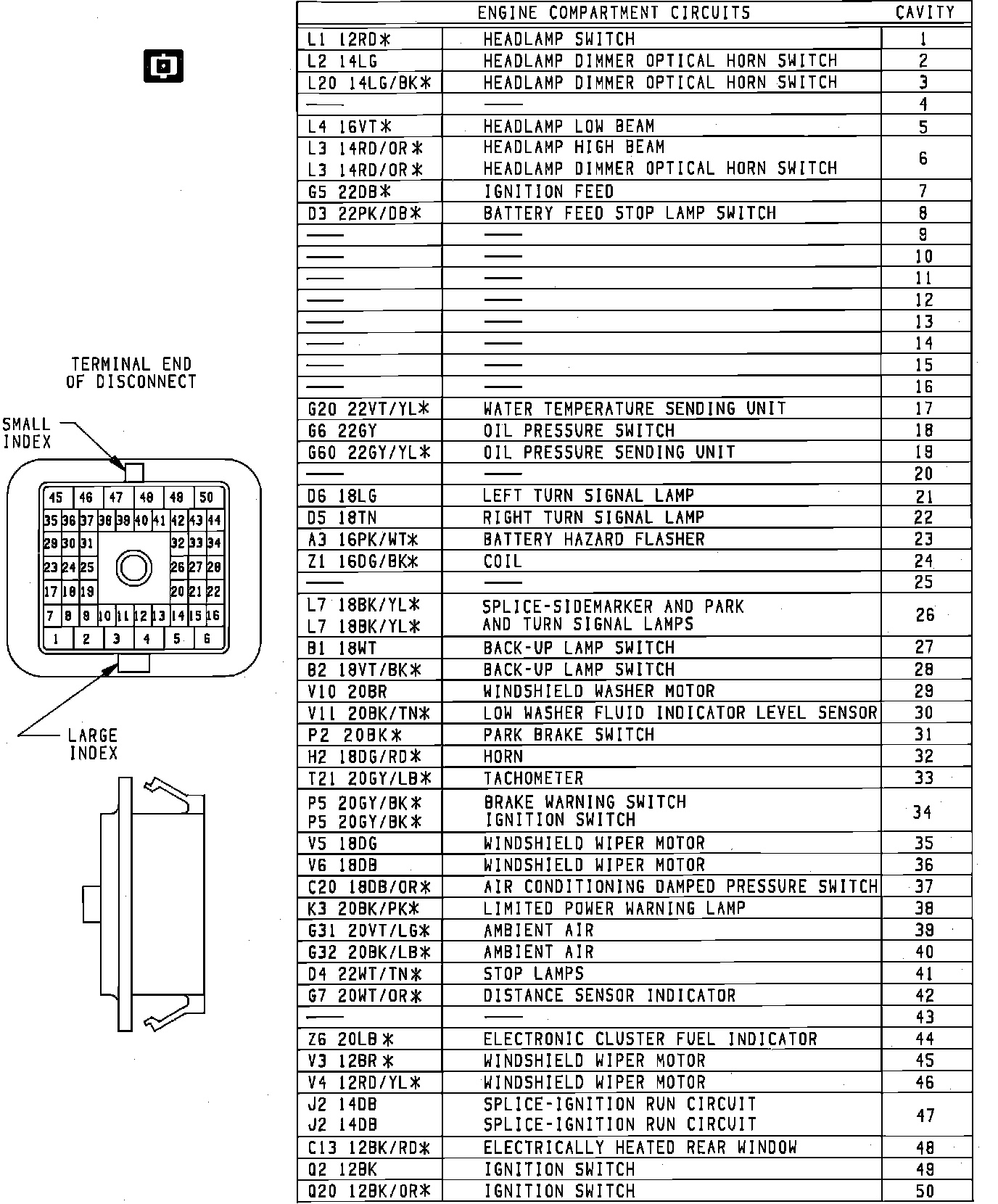

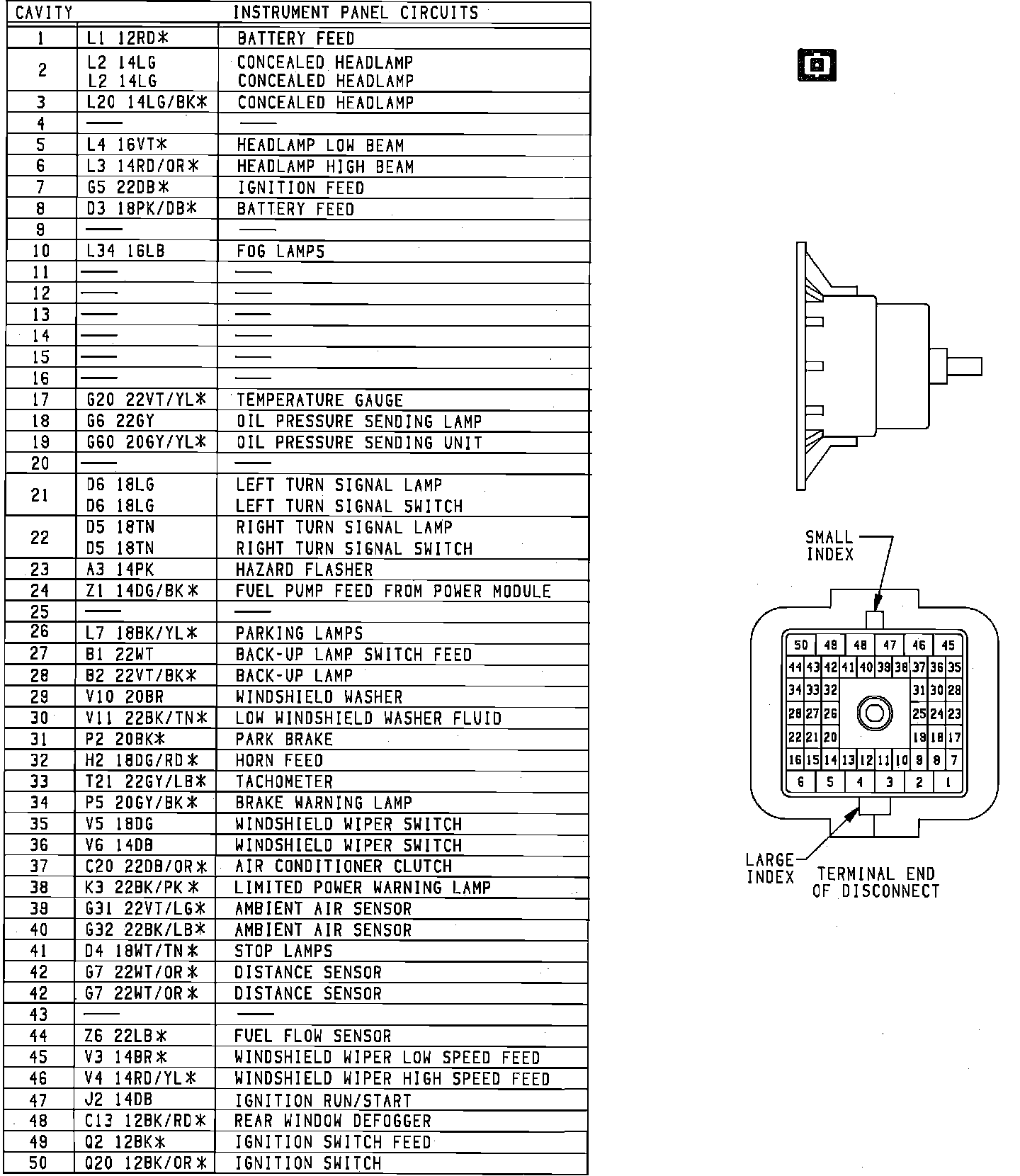

Bulkhead Connector
Bulkhead Connector
Bulkhead Connectors:
Bulkhead Connectors:
