Transmission Position Sensor/Switch: Diagrams

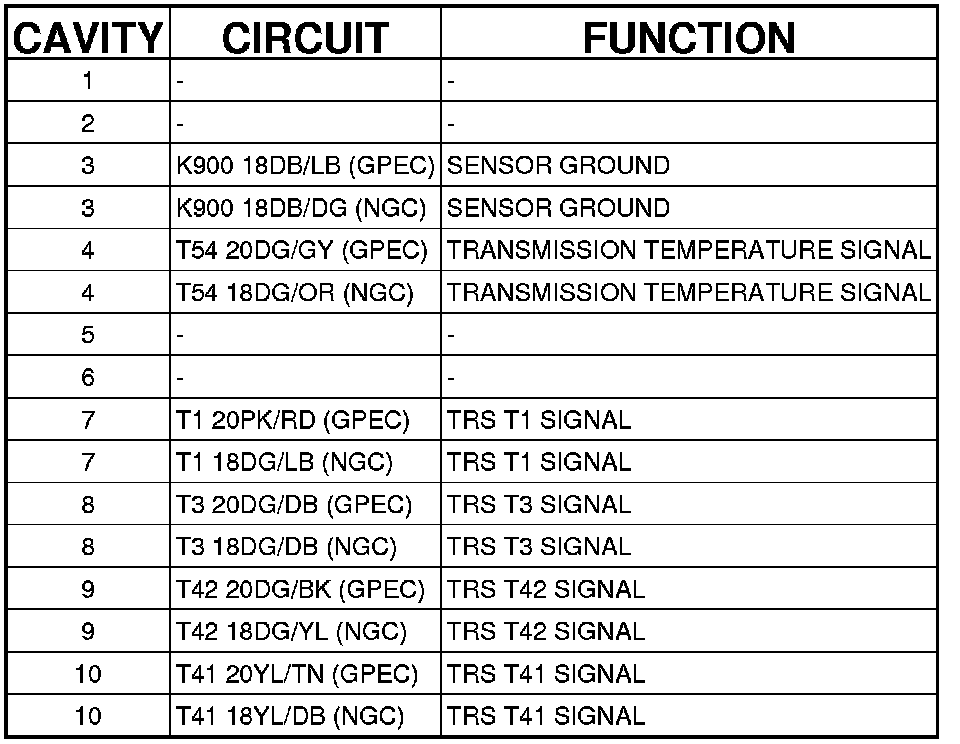

Connector (40/41TE) - (ENGINE/TRANSMISSION) 10 WAY

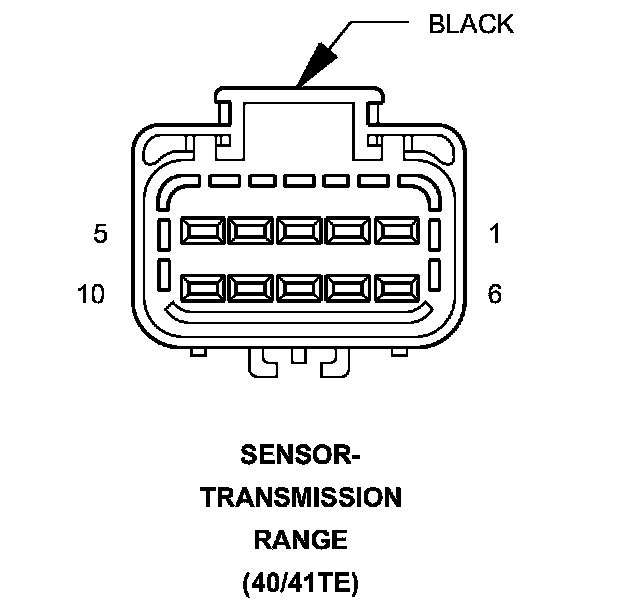

SENSOR-TRANSMISSION RANGE (40/41TE) - (ENGINE/TRANSMISSION) 10 WAY
