Dodge or Ram Truck
>>
2009
>>
Journey AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module, Transfer Case
Control Module, Transfer Case

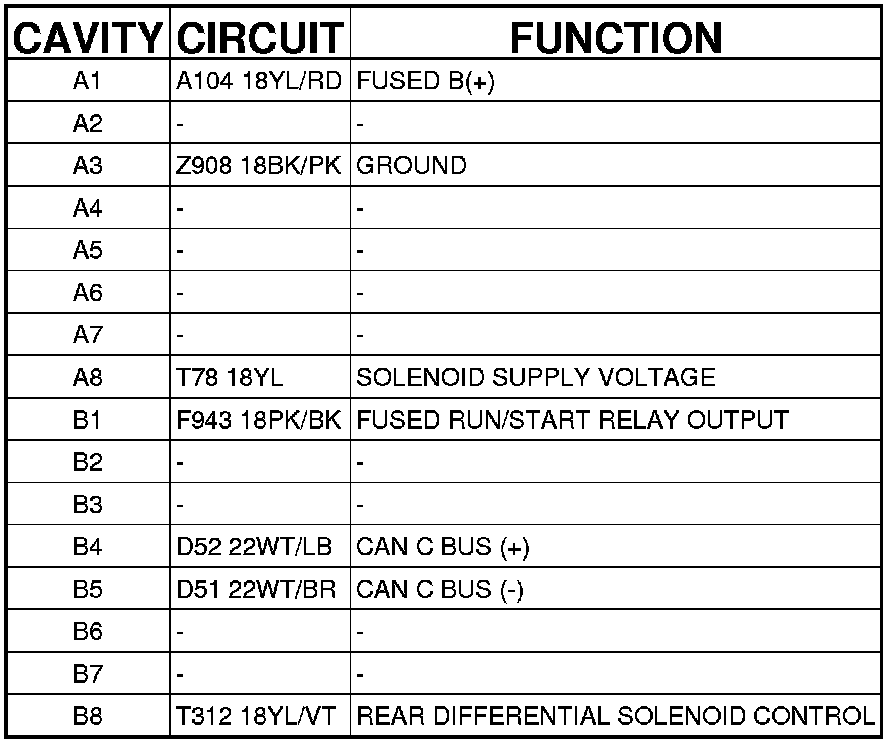

Connector (AWD) - (BODY) 16 WAY

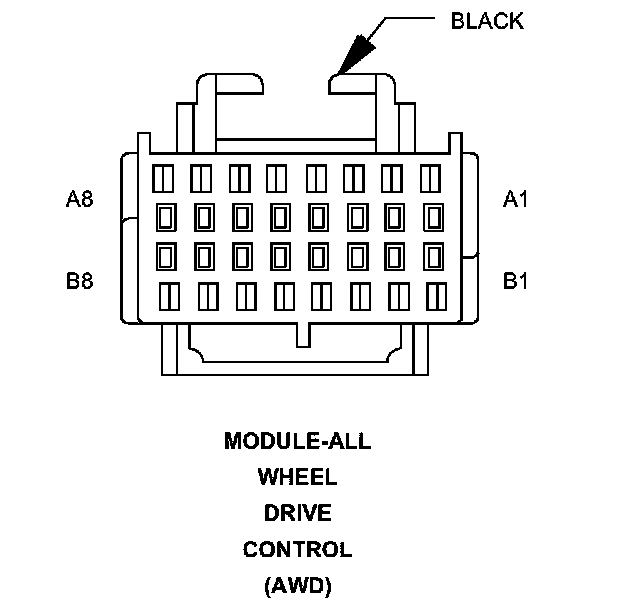

MODULE-ALL WHEEL DRIVE CONTROL (AWD) - (BODY) 16 WAY
