Intake Manifold

INTAKE MANIFOLD










Install the intake manifold retaining bolts and tighten in sequence shown to 12 Nm (105 in. lbs.).

THROTTLE BODY





CAUTION: Proper torque of the throttle body is critical to normal operation. If the throttle body is over-torqued, damage to the throttle body can occur resulting in throttle plate malfunction.





CAUTION: The throttle body mounting bolts MUST be torqued to specifications. DO NOT OVER TIGHTEN MOUNTING BOLTS. Over tightening can cause damage to the throttle body, throttle plate, gaskets, bolts and/or the intake manifold. Proper torque of the mounting bolts is critical to normal operation.

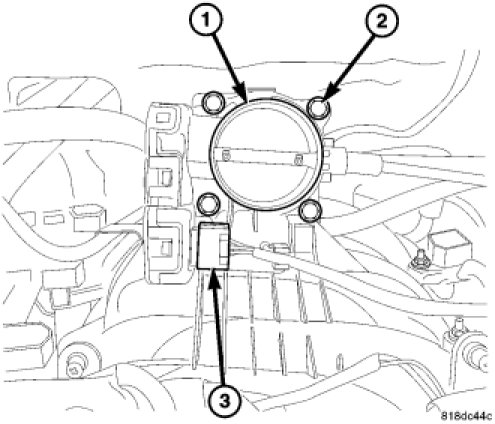

Install the four mounting bolts (2). Tighten bolts to 7 Nm (60 in. lbs.).
