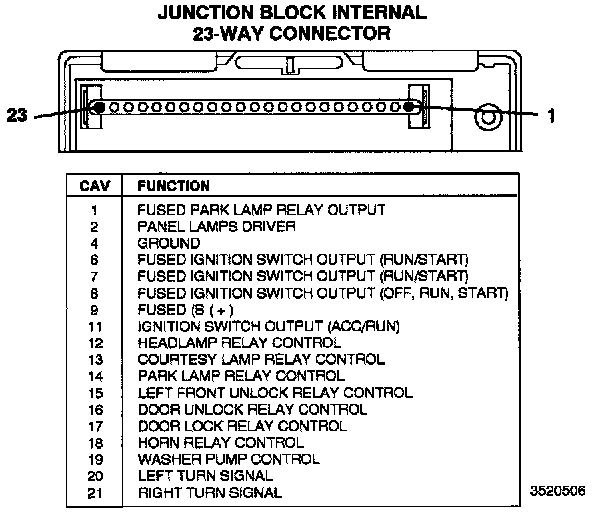

Junction Block Internal 23 Way Connector
Junction Block Internal 23 Way Connector
Junction Block Internal 23 Way Connector:
