Power and Ground Distribution
>>
Fuse
>>
Locations
>>
Police Fuse/Relay Block
Police Fuse/Relay Block

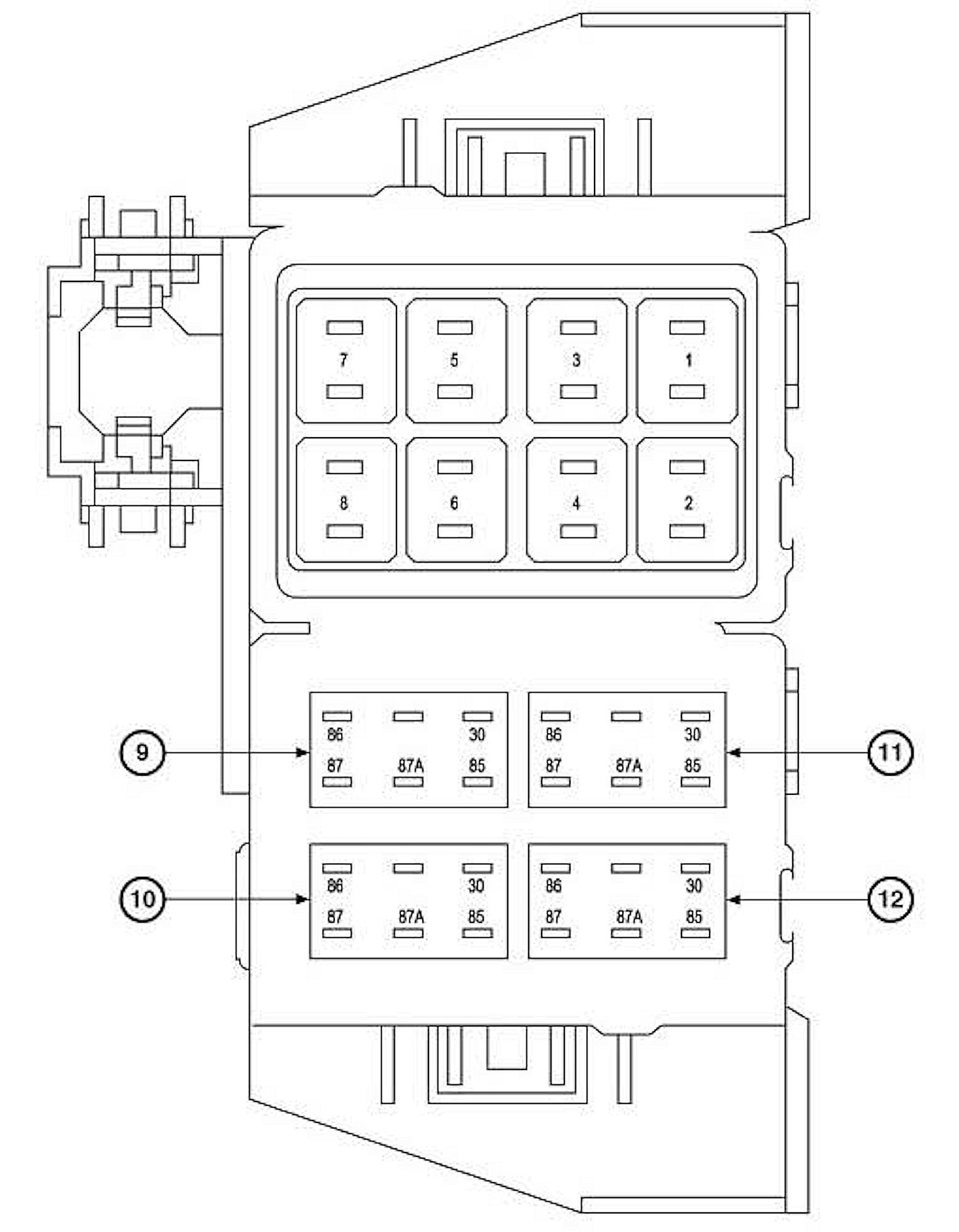

Police Fuse/Relay Block:

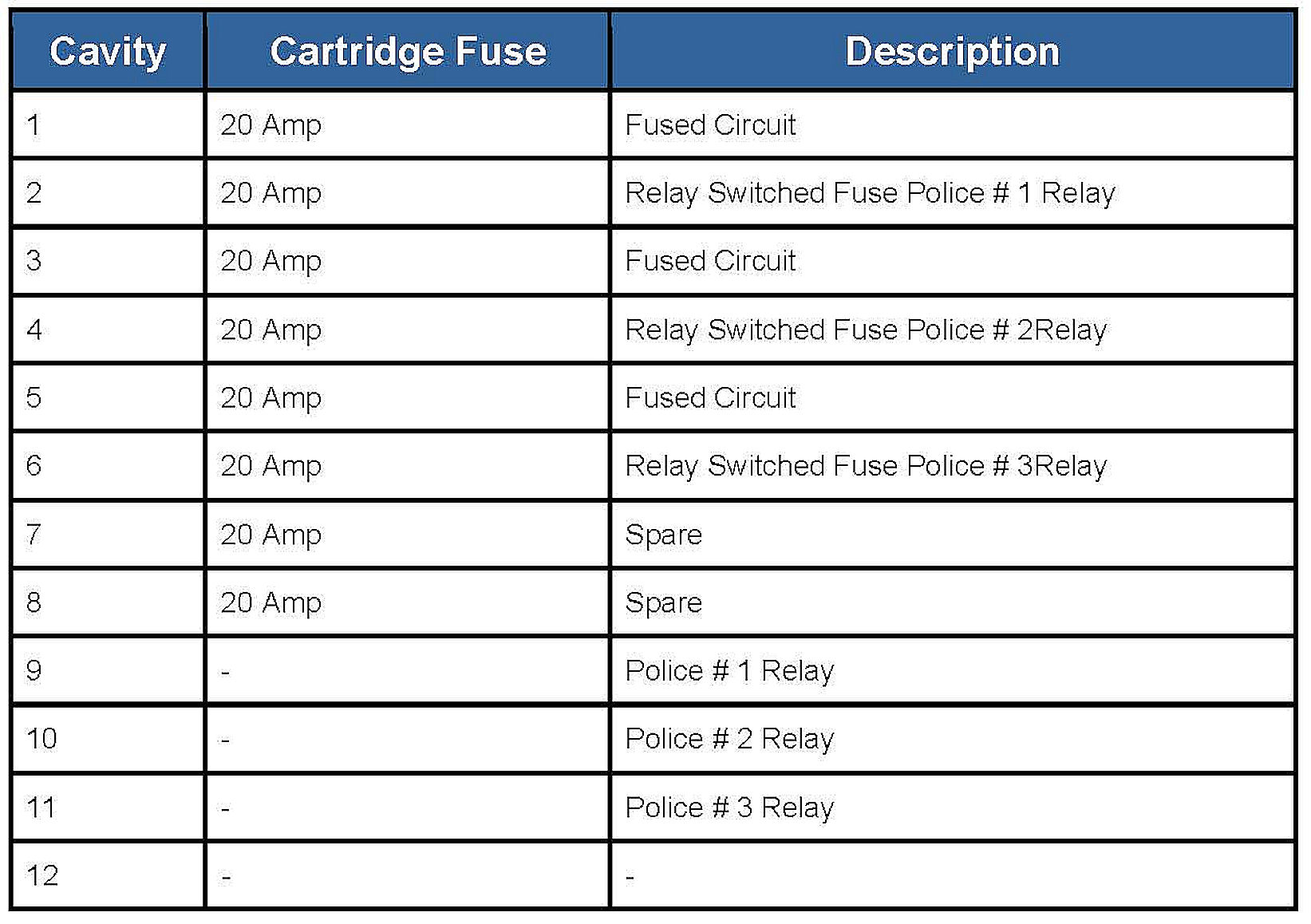

Fuse 1 - 12:
