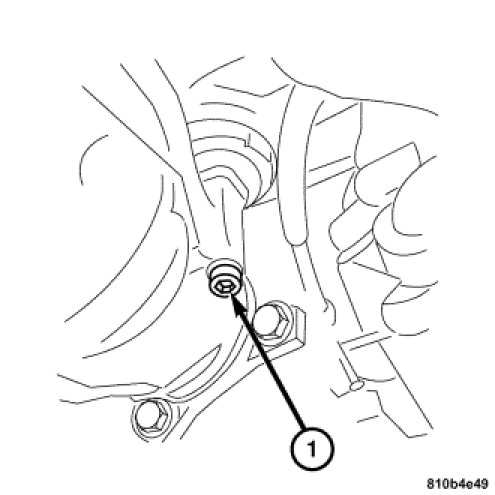

1. Install the camber strut bolt (1). Installation.




2. Install the trailing link bolt (1). Installation.




3. Install the lateral link bolt (1). Installation.




4. Install the track bar bolt. Installation.




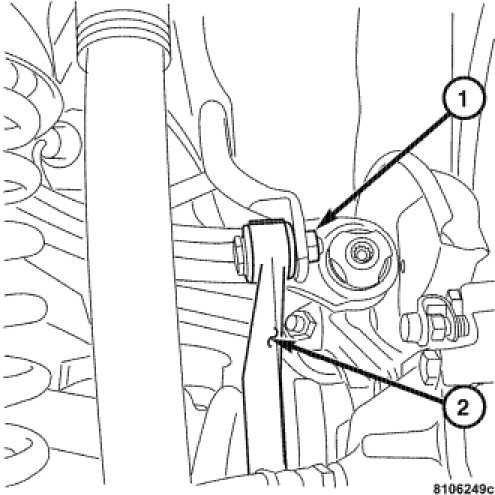

5. Install the stabilizer bar link (2). Rear Stabilizer Bar - Installation.
6. Install the lower control arm. Rear Lower Control Arm - Installation.

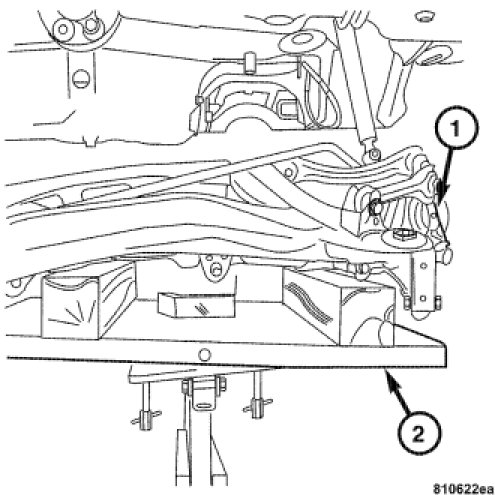

7. Install the rear axle carrier (1) by raising it up and installing the four bolts to the frame. Tighten to 90 Nm (66 ft. lbs.).




8. Install the rear axle differential carrier. Installation.




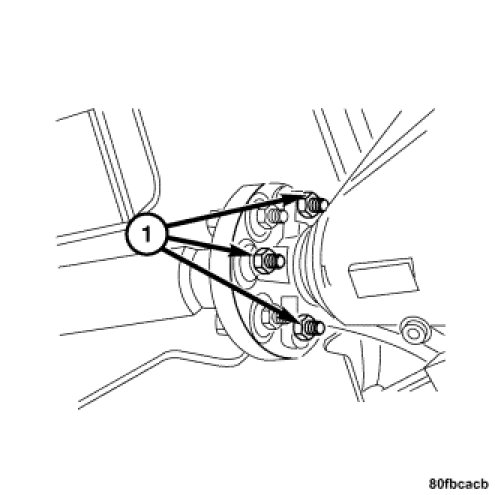

9. Install the propeller shaft assembly to the rear axle differential. Propeller Shaft - Installation.
10. Install the fuel pump assembly. Installation.




11. Install the rear shock absorbers (1). Installation.




12. Install the rear springs (1). Rear Spring - Installation.




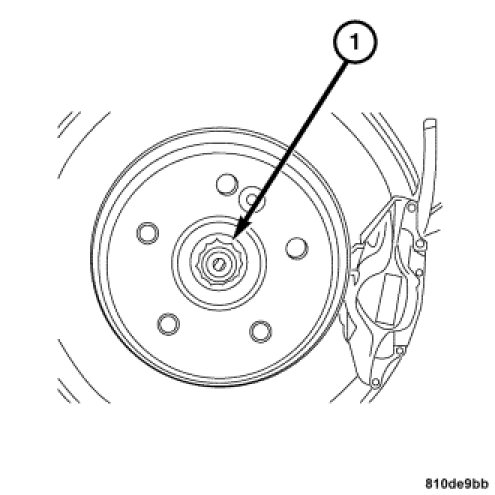

13. Install the rear axle halfshafts. Half Shaft - Installation.




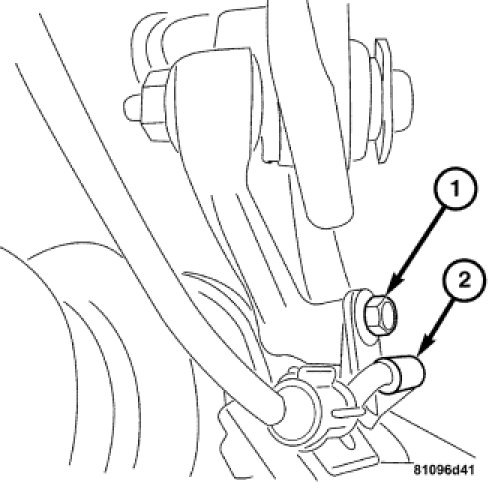

14. Install the right and left Wheel Speed Sensors (2). Rear Wheel Speed Sensor - Installation.




15. Install the parking brake rear cables (2) to the parking brake cable equalizer (1). Parking Brake Cable - Installation.




16. Install the rear portion of the exhaust system Muffler - Installation.




17. Install the rear disc brake calipers and bolts (1). Disc Brake Caliper - Installation.
18. Install the wheel and tire assembly. Procedures.




NOTE: Final torque for the rear support bracket must be made at curb weight.

19. Install the rear support bracket (1) by, installing the support bracket then installing the bolts (2). Tighten to 60 Nm (44 ft. lbs.).Installation.
20. Check vehicle alignment. Service and Repair.
