Chrysler
>>
2005
>>
Sebring Coupe L4-2.4L VIN G
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>

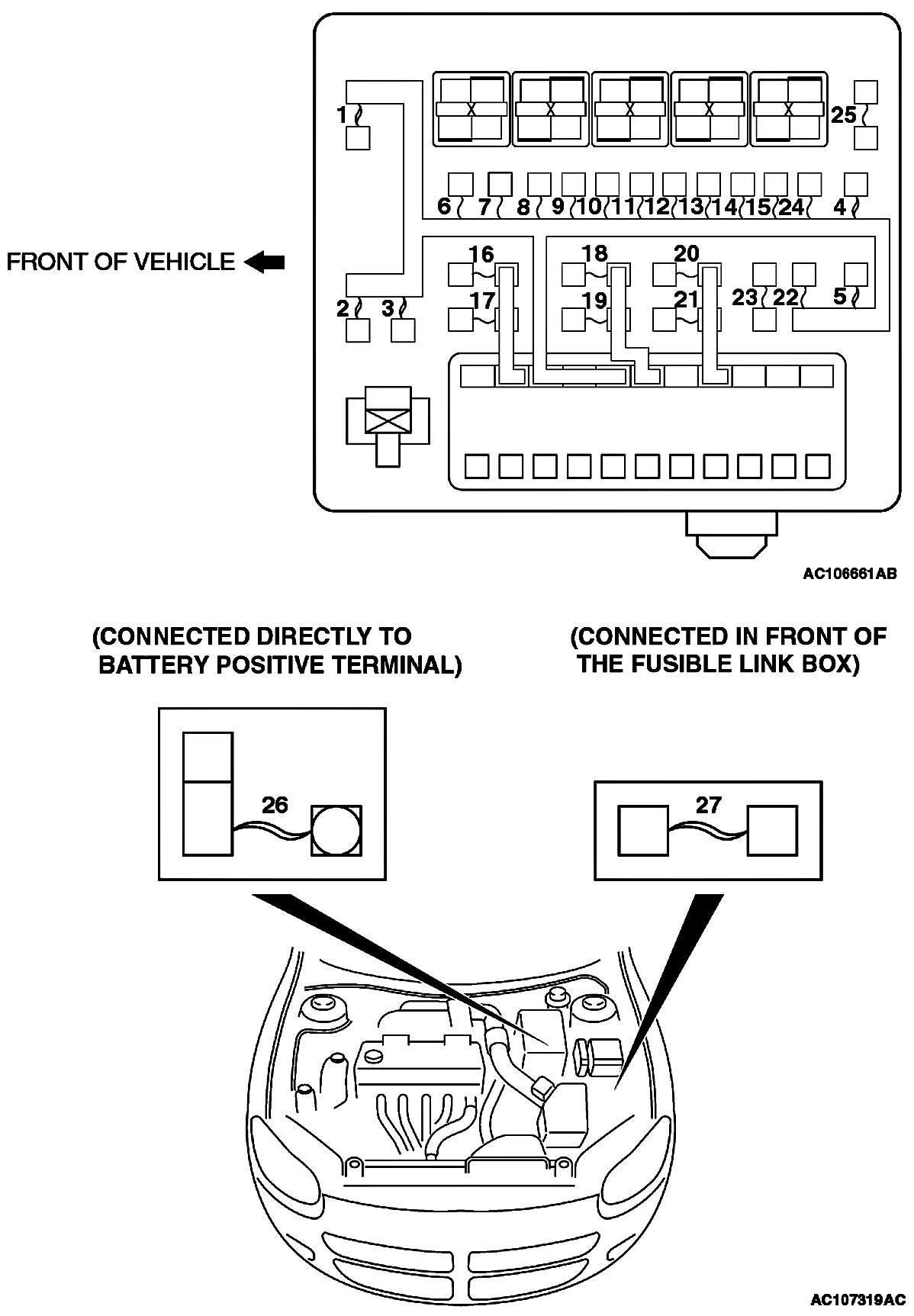

Locations
>>
Centralized Junction
Centralized Junction
Relay Location

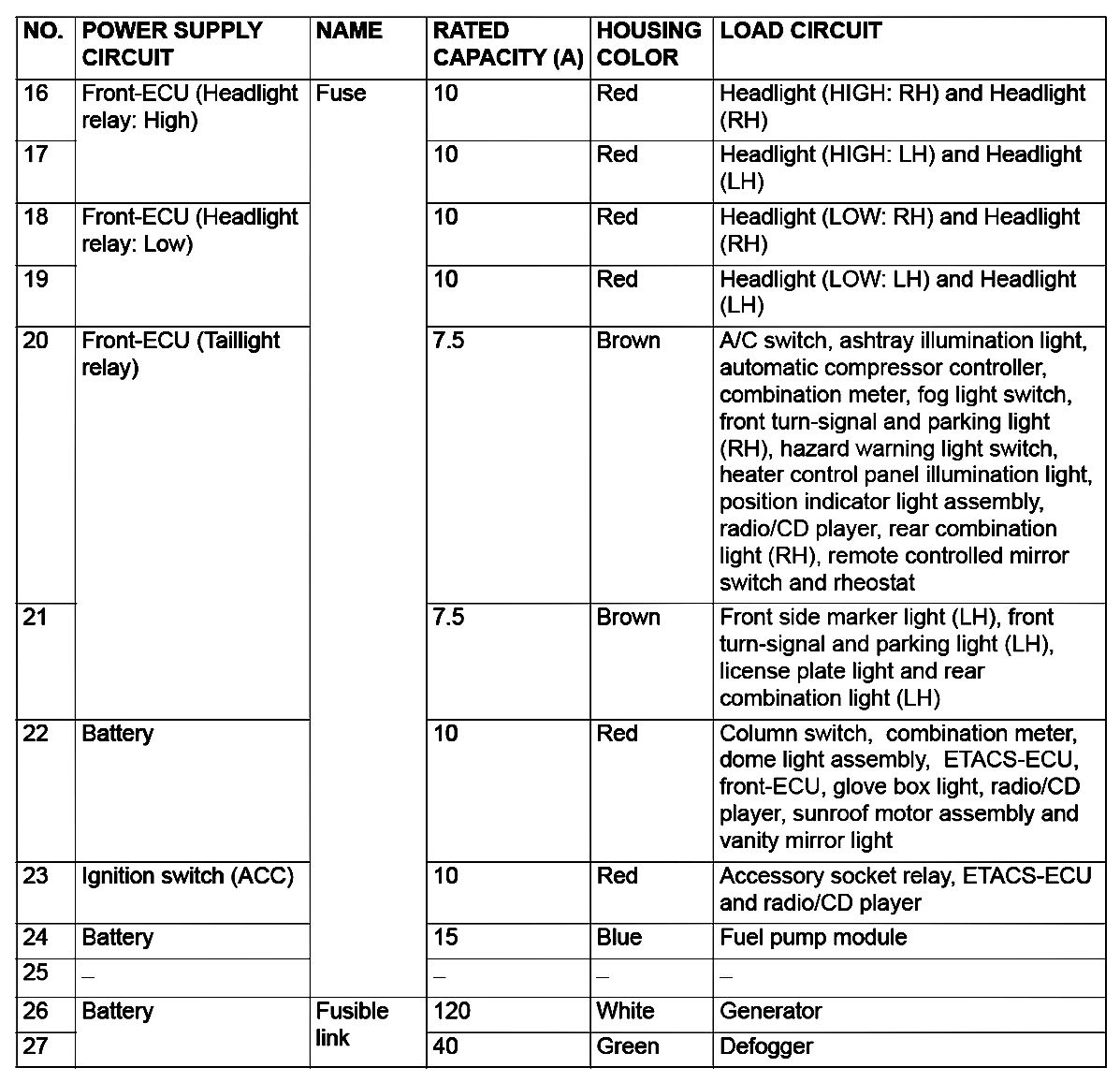

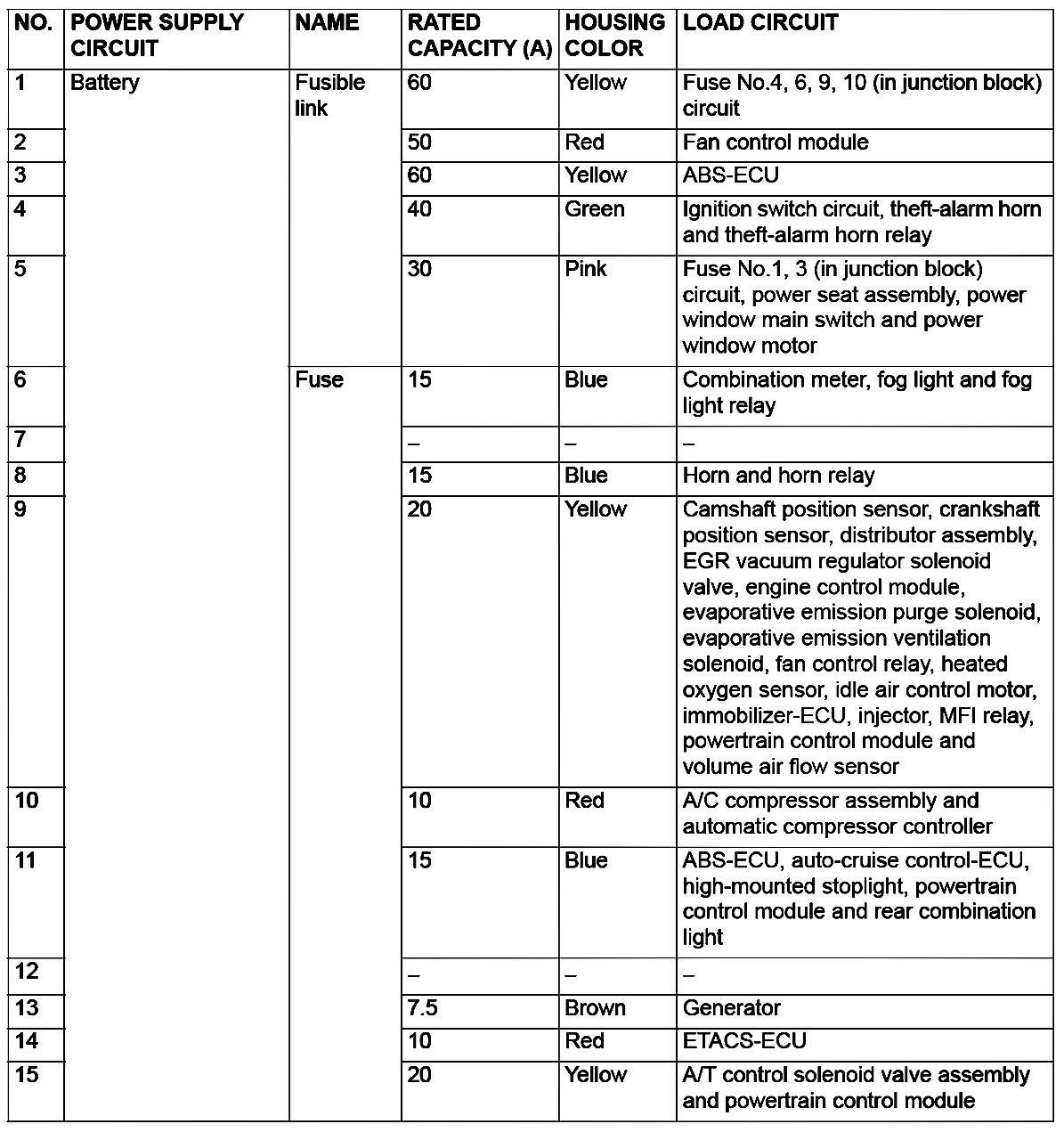

Fusible Link and Fuse
